PROPixx User Manual
I/O connector descriptions

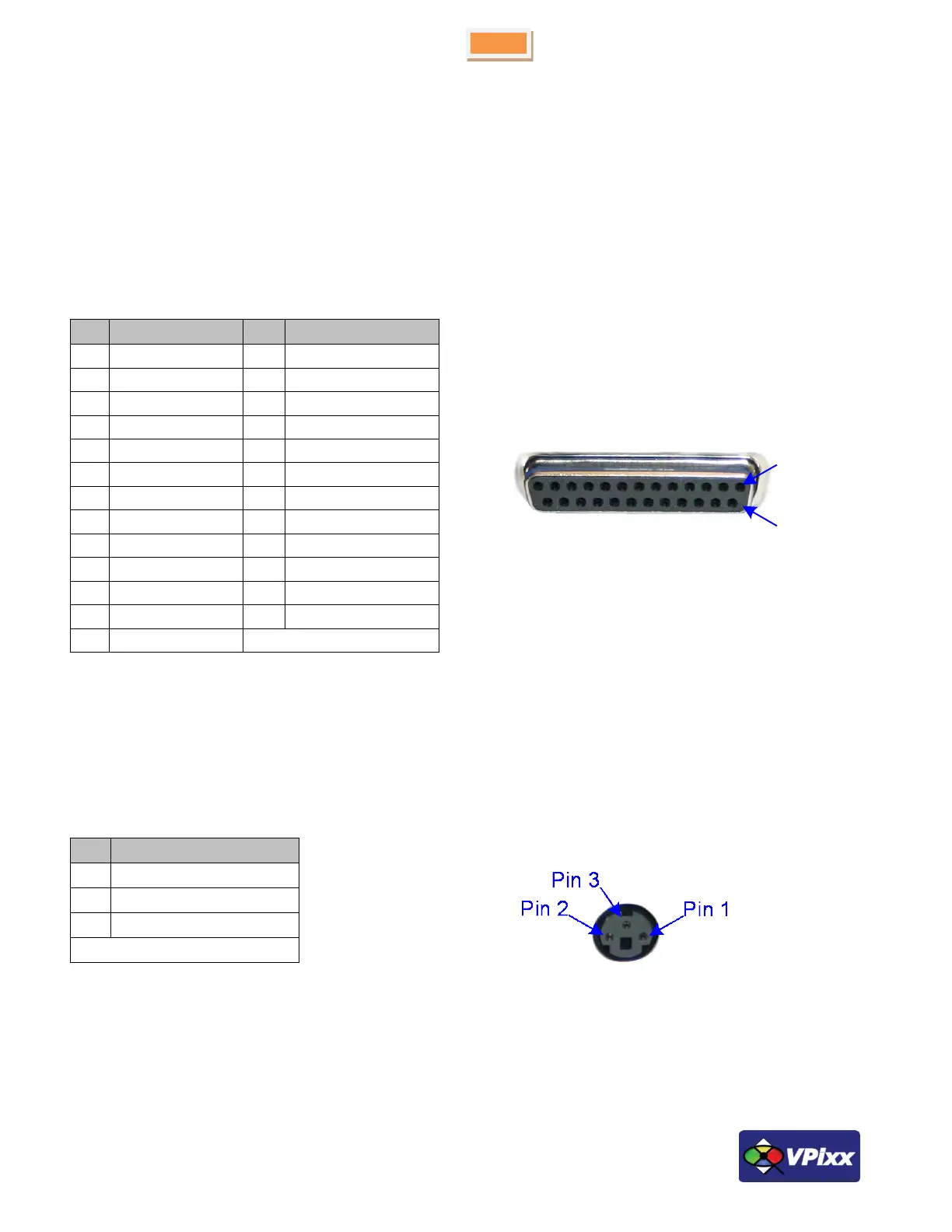

Analog I/O connector
The following table shows the analog I/O pin assignment. If you use the analog breakout cable, refer to the associated
user manual interconnections.
*Analog I/O functionalities are available only with PROPixx full version (VPX-PRO-5001C)
Table 3 Analog I/O
Connector type: D-SUB, 25 pins
Gender: Female
* Shield is tied to the GND by a 0 Ohm resistor inside the PROPixx controller.
** Current limited (400mA).
VESA 3D connector
Use this interface to connect your VESA 3D glasses. The following table shows the VESA 3D pin assignment.
Table 4 VESA 3D
Connector type: Mini-DIN, 3 pins
Gender: Female
* Shield is tied to the GND by a 0 Ohm resistor inside the PROPixx controller.
** Current limited (400mA).
Pin
Description
Pin
Description
1
ADC0
14
ADC1
2
ADC2
15
ADC3
3
ADC4
16
ADC5
4
ADC6
17
ADC7
5
ADC8
18
ADC9
6
ADC10
19
ADC11
7
ADC12
20
ADC13
8
ADC14
21
ADC15
9
REF0
22
REF1
10
GND
23
+5 VDC **
11
DAC0
24
DAC1
12
DAC2
25
DAC3
13
GND
Shield *
Pin
Description
1
+5 VDC **
2
GND
3
VESA_LR (+5 VDC)
Shield *
Pin 1
Pin 14
