Cable installation

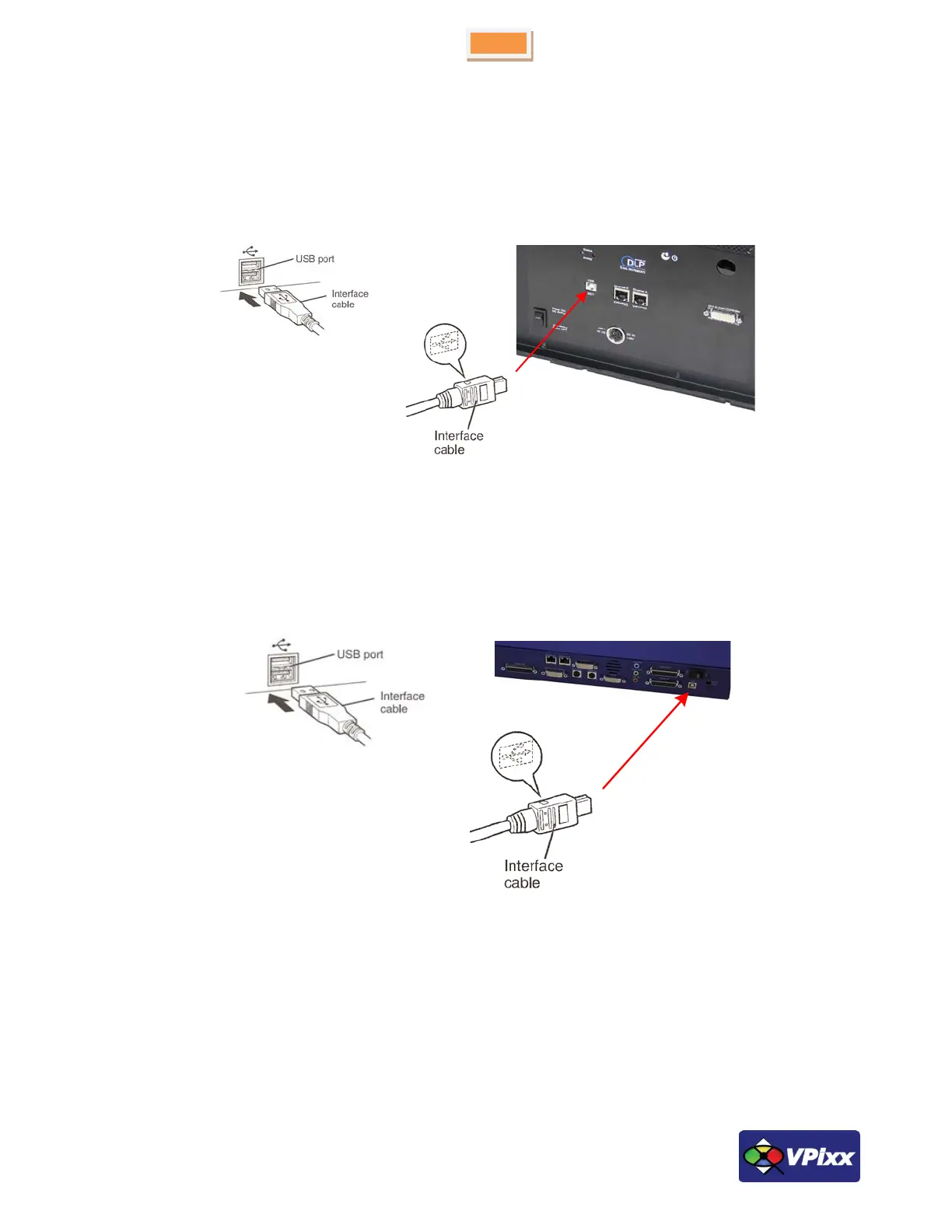

1. Connect the USB cable between the projector unit and your computer

Computer side

Projector

side

Figure 10 USB cable between projector and computer

2. Connect the USB cable between the controller unit and your computer

Computer side

Controller side

Figure 11 USB cable between controller and computer
