PROPixx User Manual

5. Attach the AC adaptor to the projector DC-in connector

Projector

side

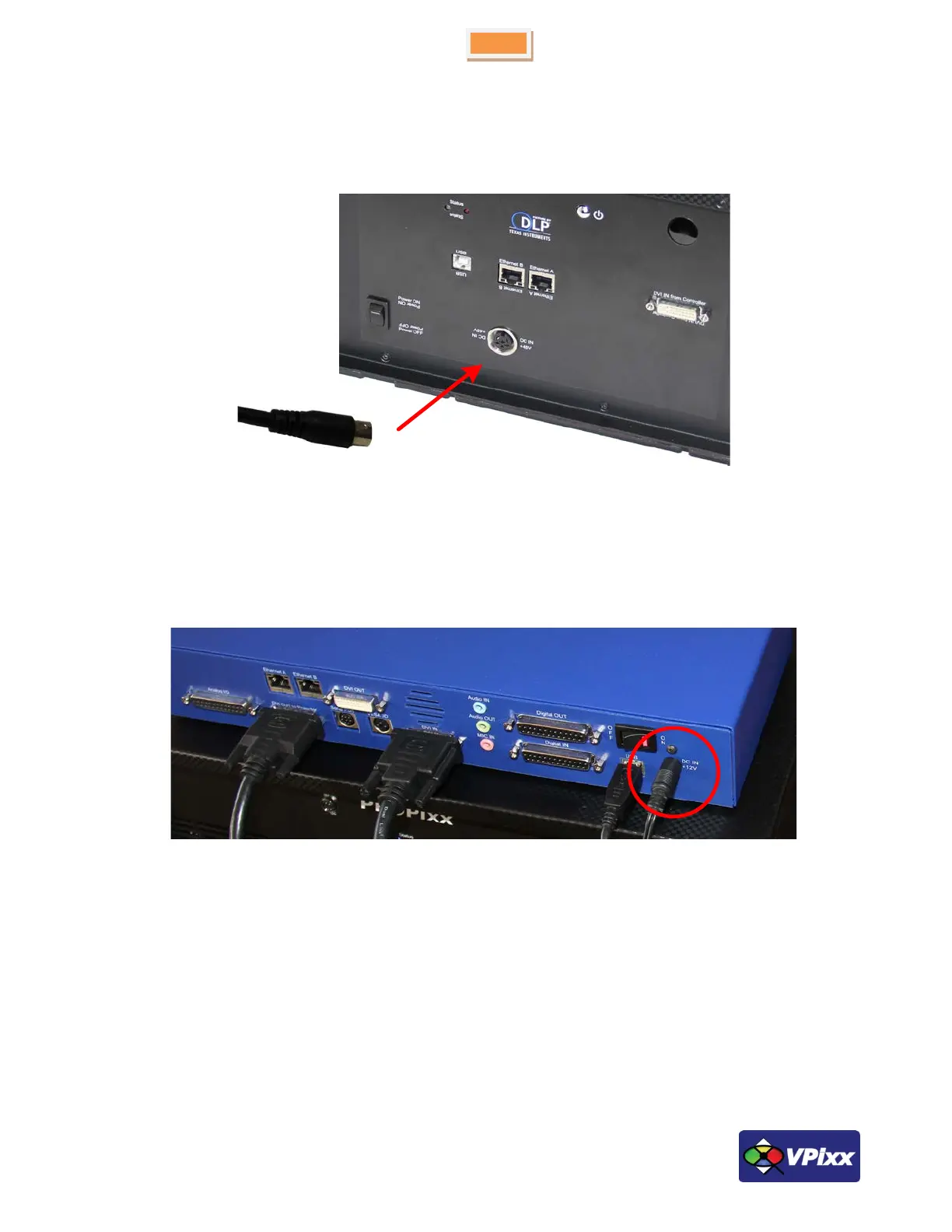

Figure 14 AC adaptor connected to projector’s DC-IN connector

6. Attach the AC adaptor to the controller DC-in connector.

Figure 15 AC adaptor connected to controller’s DC-IN connector
