7 Appendix
7.1 Cable Plan VRmC-X OEM Interface Cable
1
15
...

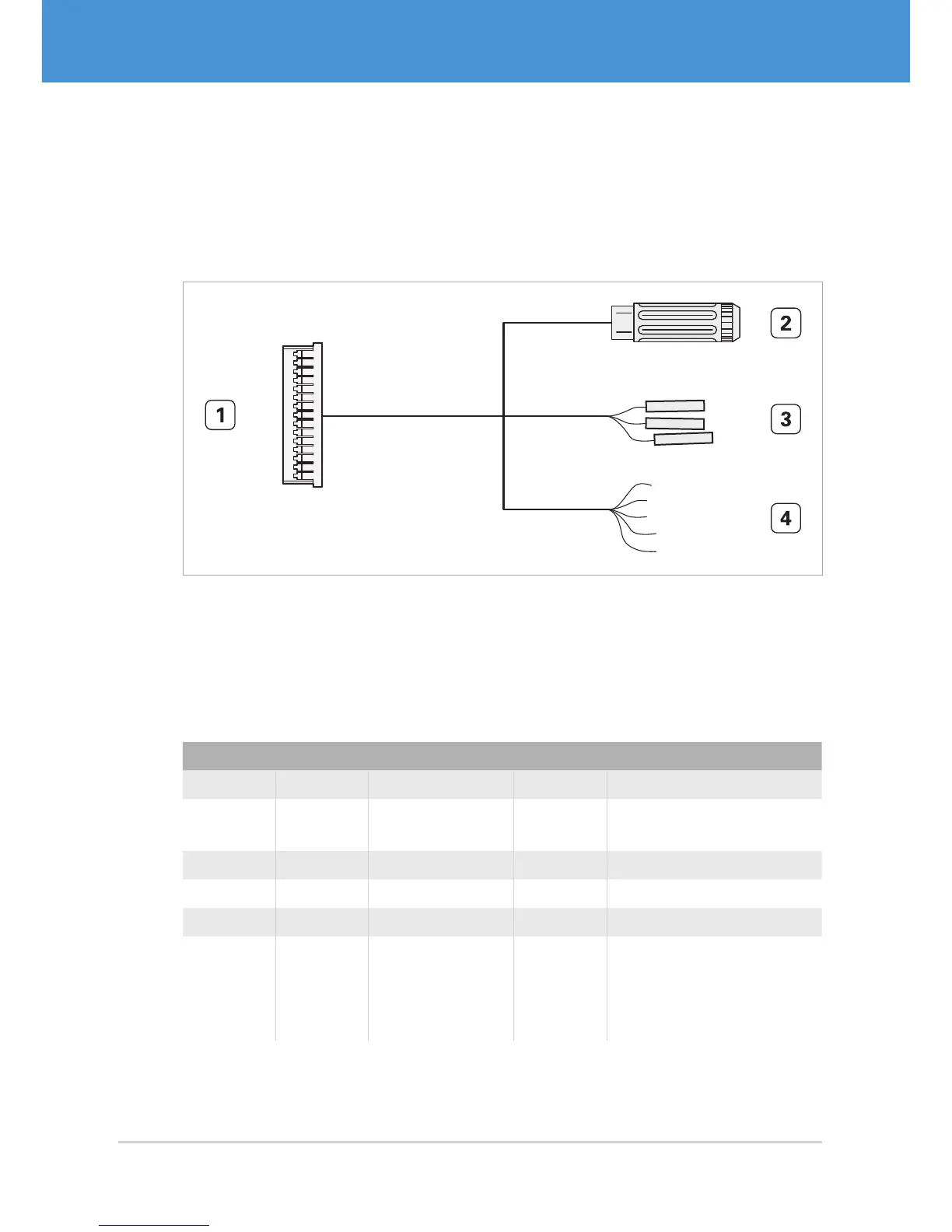

Fig. 20: VRmC-X OEM interface cable for OEM and COB cameras
1 Hirose DF14-15S-1.25C, to be plugged into camera receptacle
2 Switchcraft PC722A receptacle for 5 V DC power supply
3 Receptacles for 0.1” connector (3 pieces)
4 Open ends (8 pieces, reserved)
#2 pin #3 wire #4 wire #1 pin Signal
ring 3, 13 GND
center pin 1, 2 +5 V DC (±5%) in / VBUS
out
gray 8 GND
white 9 TTL TriggerIn (+3.3...5 V)
black 10 TTL StrobeOut (+5 V)
yellow1, green1,
blue, purple,
brown2, red2,
yellow2, green2
4, 5,
6, 7,
11, 12,
14, 15
reserved
USB Cameras – User Guide34
