7.2 Cable Plan VRmDC/FC-X-DF14-Open
1
15
...

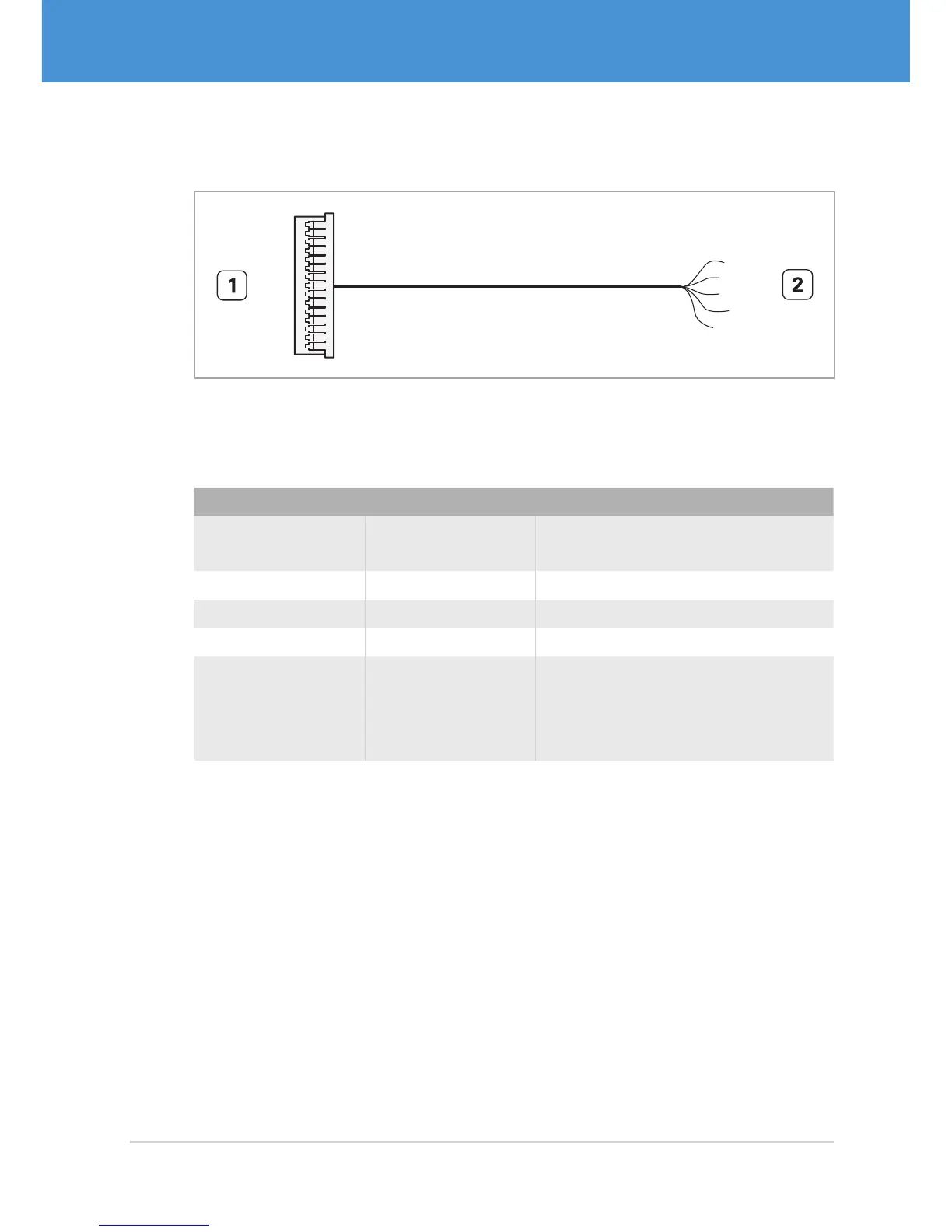

Fig. 21: VRmDC/FC-X-DF14-Open interface cable for OEM and COB cameras
1 Hirose DF14-15S-1.25C, to be plugged into camera receptacle
2 Open ends (15 pieces)
#2 wire #1 pin Signal
orange1, gray,
orange2
3, 8,
13
GND
brown1, red1 1, 2 +5 V DC (±5%) in / VBUS out
white 9 TTL TriggerIn (+3.3...5 V)
black 10 TTL StrobeOut (+5 V)
yellow1, green1,
blue, purple,
brown2, red2, yel-
low2, green2
4, 5,
6, 7,
11, 12,
14, 15
reserved
35USB Cameras – User Guide
Appendix
