58
Installation Manual
14
Fully open several hot water fixtures and if the CO
2
value
at low fire is not within 0.5% of the value listed in the table
above, the gas valve set screw will need to be adjusted. If

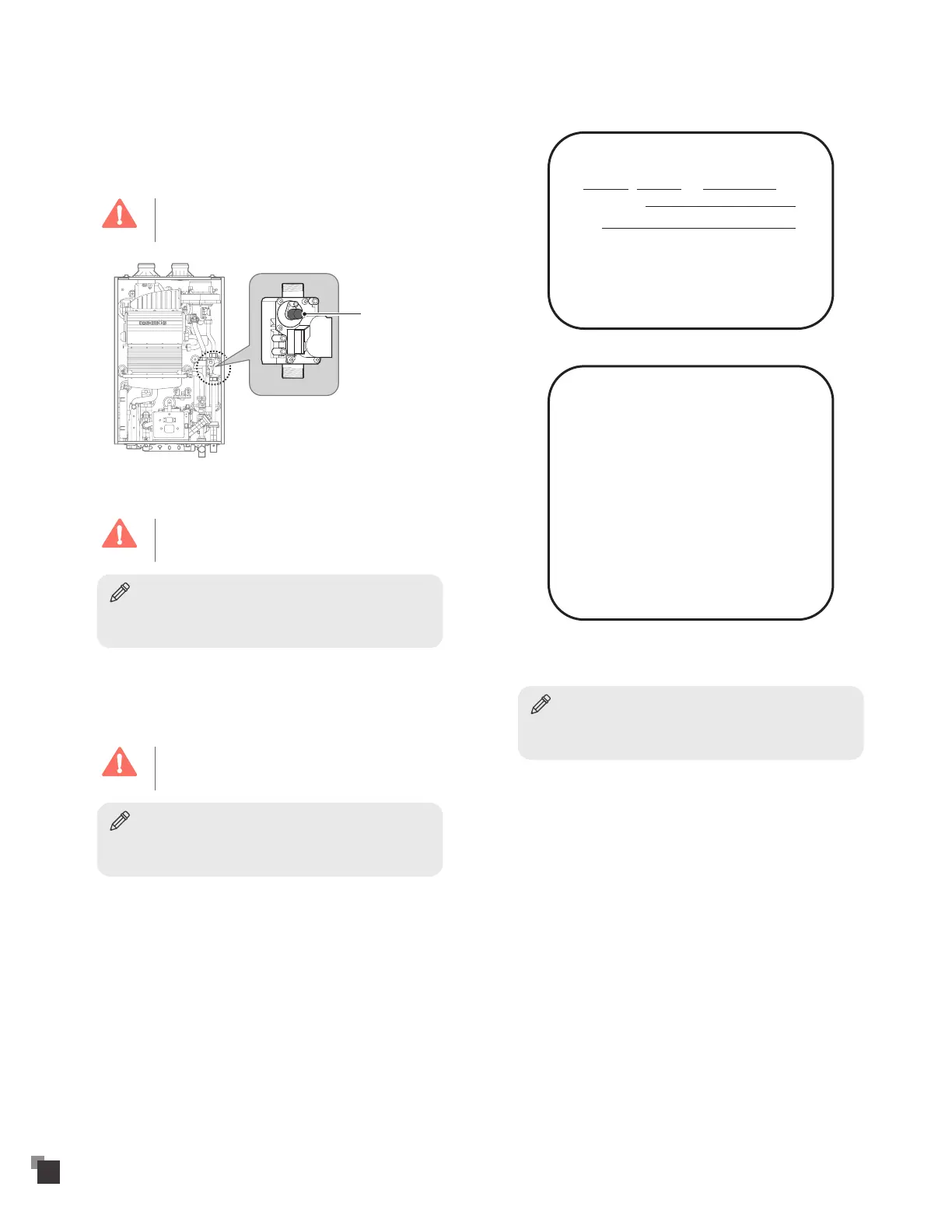

adjustment is necessary, locate the set screw. Using a 5/32” or
4mm Allen wrench, turn the set screw no more than 1/4 turn
clockwise to raise or counterclockwise to lower the CO
2
value.
Danger
Improper gas valve settings can cause severe injury,
death or property damage.
Set screw
15
Set the DIP switch to maximum heat capacity operation.
Danger
Be sure to turn off the power before changing the DIP
switch setting.
Notice
For more information about setting the DIP switches, refer to
"Setting the DIP Switches" on page 47.
16
Fully open several hot water fixtures and if the CO
2
value at
high fire is not within 0.5% of the value listed in the table
above, do not adjust the gas valve set screw and check if the
gas orifice is properly installed.
Danger
Improper gas valve settings can cause severe injury,
death or property damage.
Notice
While measuring the gas/air ratio in maximum heat capacity
operation, do not adjust the gas valve set screw.
17
When the gas conversion is completed, attach the conversion
sticker to the top of the rating plate.
This appliance was converted on
/ / to gas
with Kit No.
by
(name and address of organization
making this conversion, who accepts the
responsibility for the correctness of this
conversion).
This appliance has been converted to
Propane fuel /
Cet appareil a été converti au propane
Orifice Size / injecteur
Min. 3.9mm to Max. 3.1mm
Inlet Gas Pressure / Pression d'entree du gaz
Min. 8.0 to Max. 13.0" WC
Manifold Pressure /
Pression à la tubulure d'alimentation
Min. 0.01 to Max. -0.30(150), -0.56(199)" WC
Input (Btu/hr) / Débit calorifique
Min. 19,900 to Max. 150,000(150), 199,000(199)
Conversion Kit No. 42110399
Conversion Rating Plate
Notice
Please refer to page 7 on this manual for manifold pressure of
each model.
