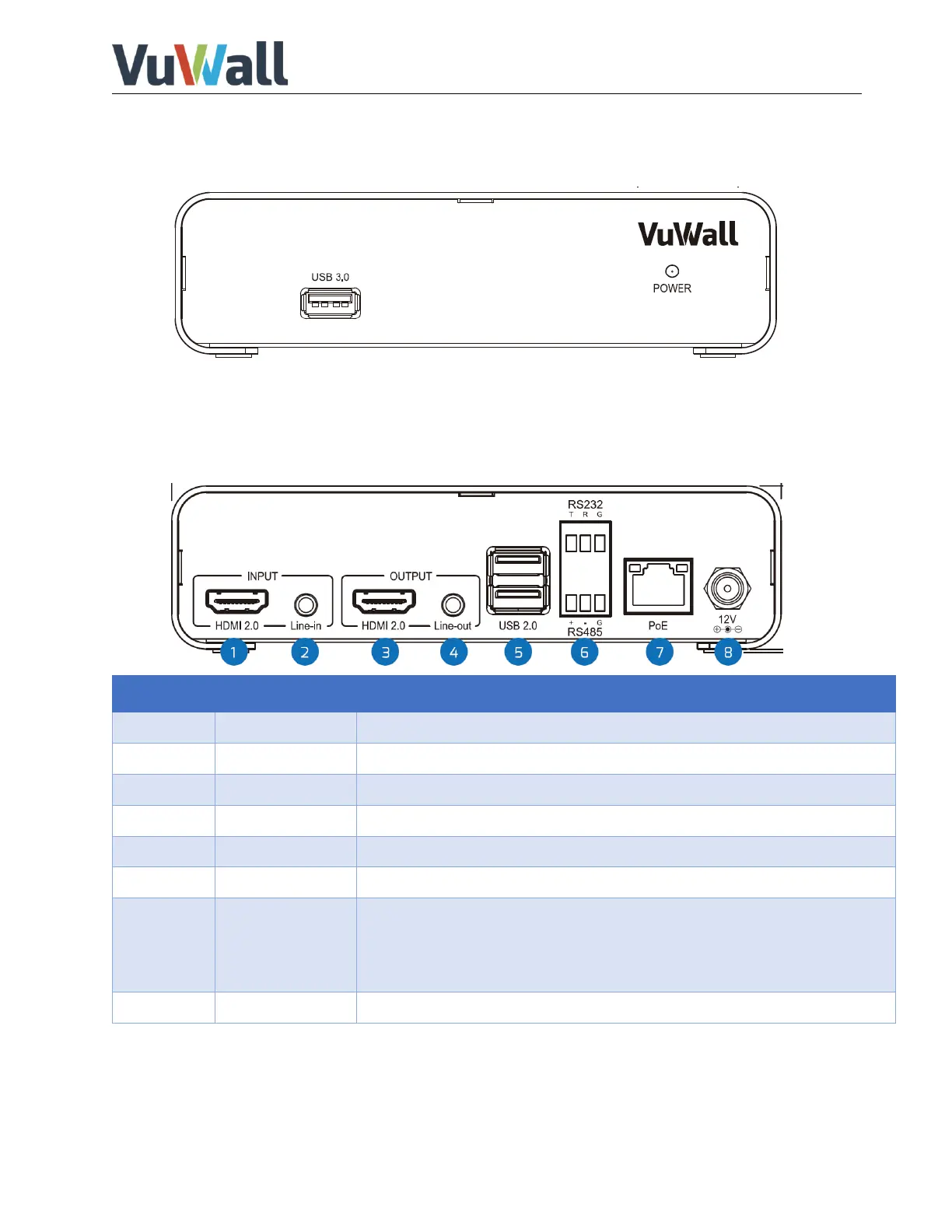

Device overview
Front view:
USB3.0 connector to record input in various formats.
LED power on/off indicator.
Rear view:
Number
Name
Function description
1
HDMI IN
Connect to HDMI source (PC, Media Player, Laptop)
2
LINE IN
3.5mm stereo analog audio input
3
HDMI OUT
HDMI2.0 loop out port, connect to local HDMI display
4
LINE OUT
3.5mm stereo analog audio output
5
USB 2.0
For maintenance purposes only
6
RS232/485
Currently not in use
7
Network
PoE Standard 802.3af 48V 13W Max 15W RJ45 for 10/100/1000Mbps
Ethernet for stream output. This can be connected directly to a PC or
decoder for point-to point, or to a network switch for distribution over the
network
8
DC 12V
Power supply
