2. Fix the Telescopic tube as shown. The tube’s ends have different
diameters – fix it from the wider end.
(Fig. 7)
3. Choose the correct adapter for the bottle.
The threaded platform base of E-BURETTE has a 30 mm screw
thread. Five adapters are supplied to suit containers with a 28,
32, 38, 40, 45 mm and 30 mm (inbuilt adapter) screw neck.
(Fig. 8)
4. Fix the adapter on the reservoir bottle by screwing it in clockwise
direction. (Fig. 9)
5. Mount the instrument. Screw it to the reservoir by applying gentle hand torque applied to
the threaded platform base only. In case of removal, apply the same technique to the base,
in the opposite direction.
6. Connect the cable from the instrument housing to the port at the
back of the control panel with a firm push, as shown. Check for the
cable position. The flat surface of the connector with an arrow
mark will face down.
(Fig. 10)
7 vwr.com I Instruction manual VWR
®
E-Burette

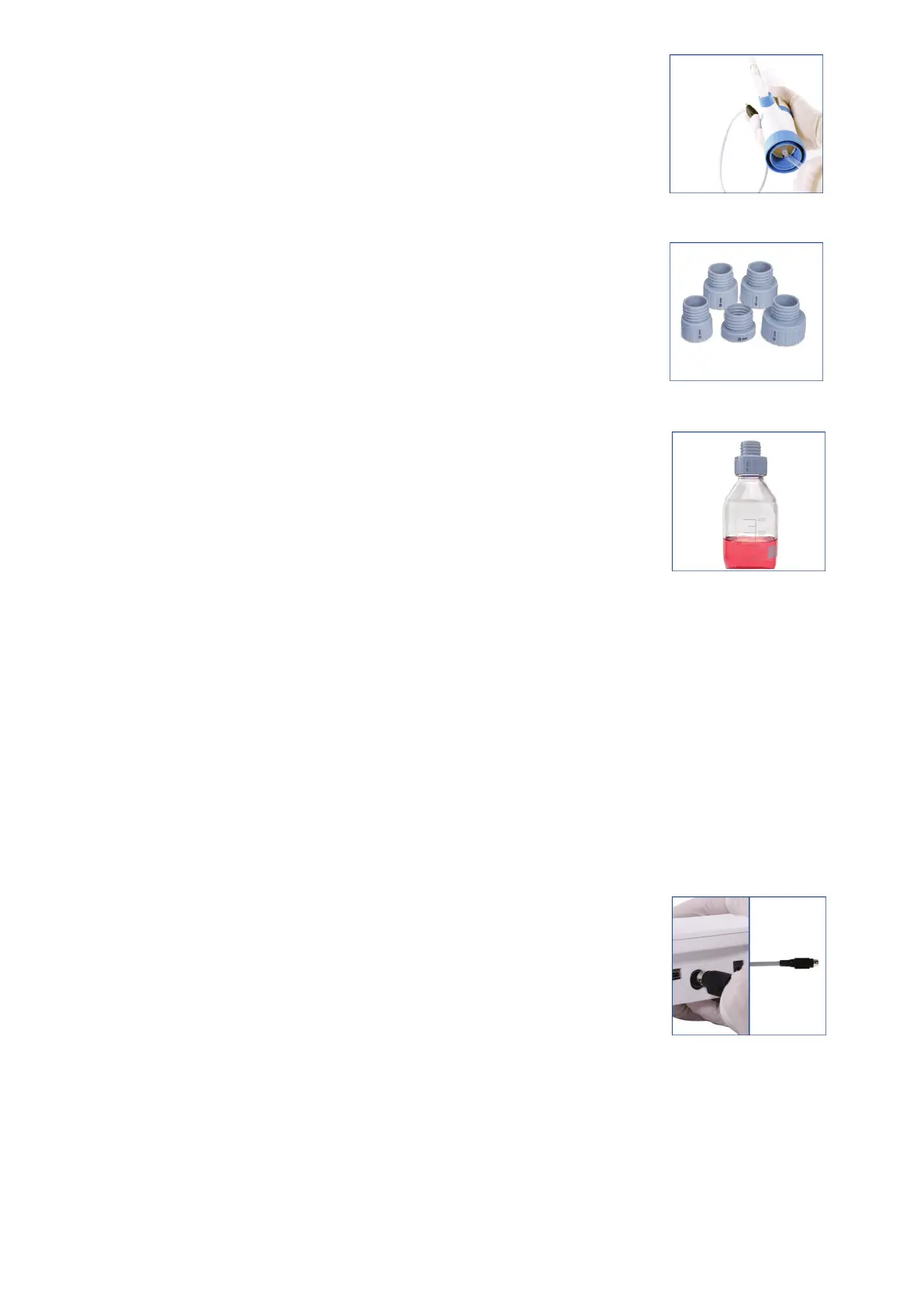

Fig. 7
