External systems
140

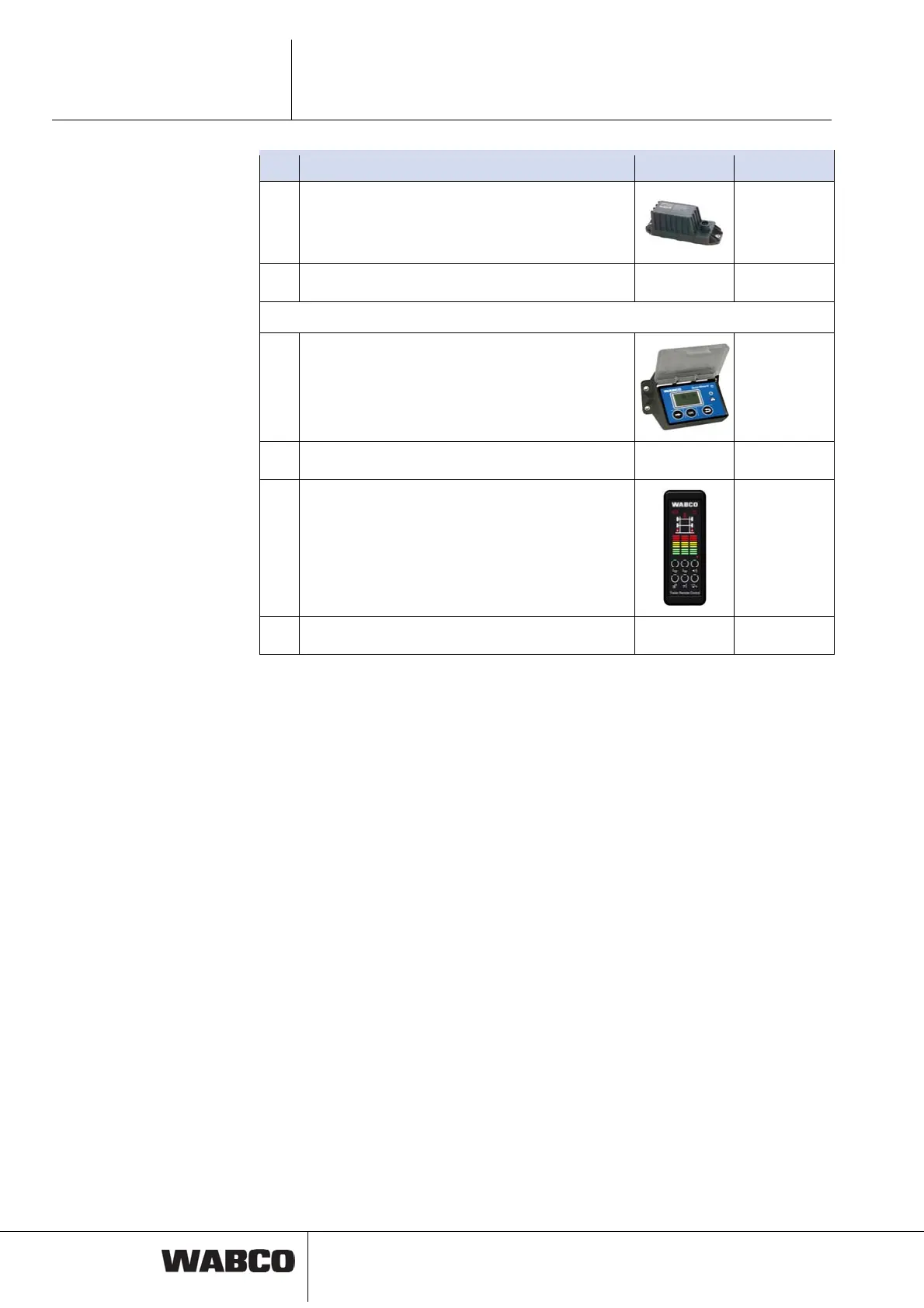

Item Component Figure Part number
1 IVTM electronics
446 220 013 0
2 Cable for IVTM
449 913 ... 0
The following components can be used for indication and operation:
3 SmartBoard (optional)
446 192 110 0
4 Cable for SmartBoard and IVTM
449 916 ... 0
Trailer Remote Control (optional)
Only in combination with ELEX and version
TEBS E2 or higher.
Connecting cable between Trailer Remote Control
and fuse box in the truck and a bracket are included
in delivery.
446 122 080 0
Display
446 221 000 0
Parameter setting
Support for IVTM is configured via tab 4, Standard functions.
TEBS E transmits the data received from the IVTM system via the 24 V CAN bus
to the towing vehicle so that the tire pressures can be indicated on the dashboard.
Because there are differences in terms of how the data is interpreted there, there
are two different modes that optimise the transfer to the respective towing vehicle:
EBS23 Standard: Default value, matches most towing vehicles
EBS23 Group Bit: ‘Extends’ the fault messages of a wheel to a generic fault mes-
sage to all wheels on the trailer. This ensures an adequate warning message in a
number of Mercedes Actros vehicles.
