TEBS E
6
GIO functions
93
6.12 Power supply and data communication on GIO5
Vehicle type
All trailer vehicles
Purpose
Power supply from connected systems, e.g. Telematics.
Telematics
The Telematics unit can be connected to the SUBSYSTEMS slot or on GIO5 (only
with TEBS E Premium).
WABCO recommendation: Connect Telematics to GIO5, so that the subsystems
plug can be used e. g. for the SmartBoard or IVTM.
A stand-by time for charging a connected battery after the ignition is turned off can
be defined via the TEBS E Diagnostic Software. In this case, the CAN bus is
switched off – or the message is sent, indicating that the vehicle was switched off –
and only the battery is charged. The time for charging corresponds to the time for
ECAS standby operation.

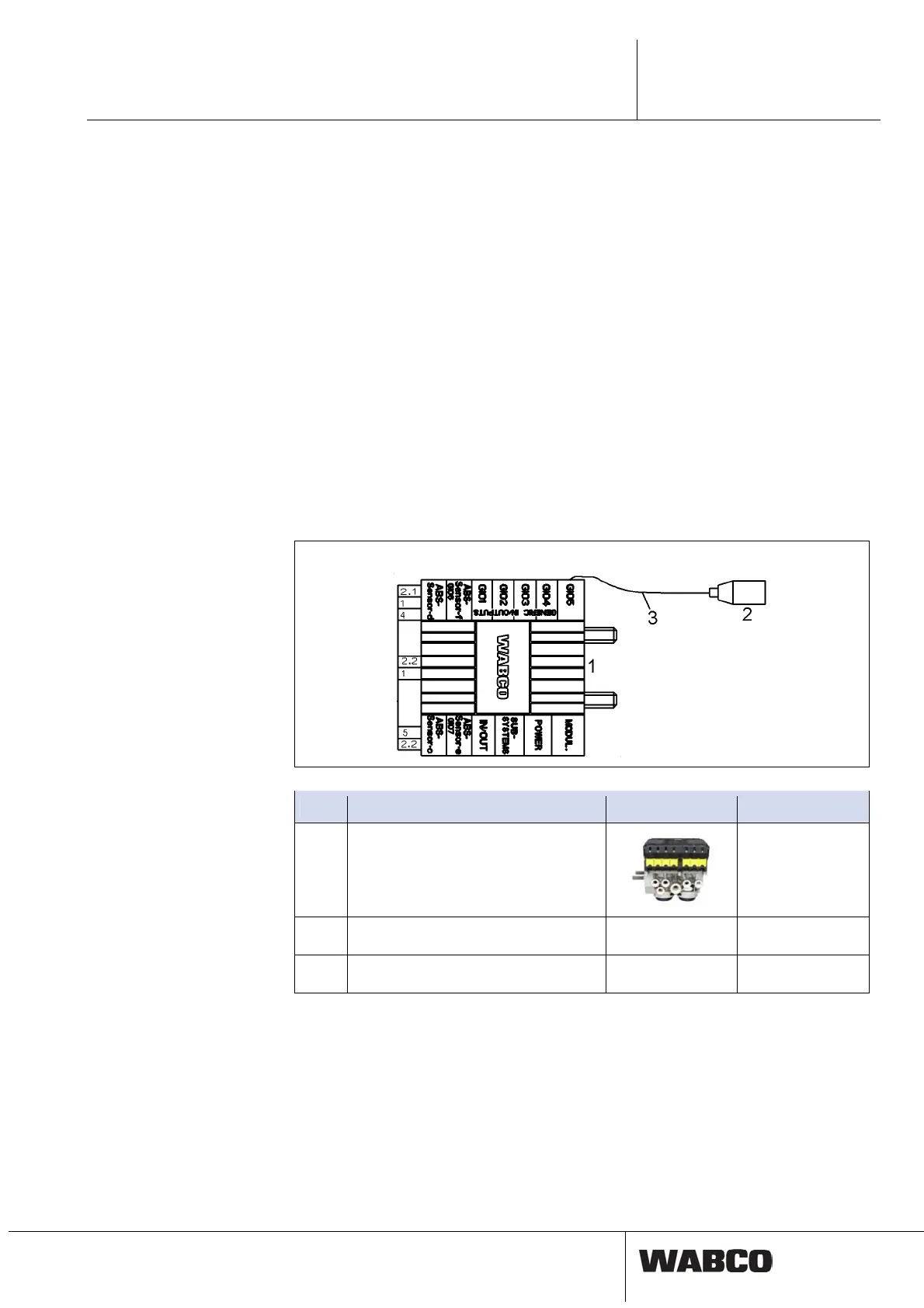

Connecting the components
Extract from diagram 841 802 199 0
Item Component Figure Part number
1 TEBS E Modulator (Premium)
480 102 06. 0
2 Trailer Telematics Unit (TTU)
446 290 100 0
3 Cable for Telematics
449 915 ... 0
Parameter setting
Telematics is coordinated via tab 4, Standard functions.
In tab 11, Connectors the connection to subsystems or GIO 5 are defined.
