Installation notes
for vehicle installation and retrofitting
143

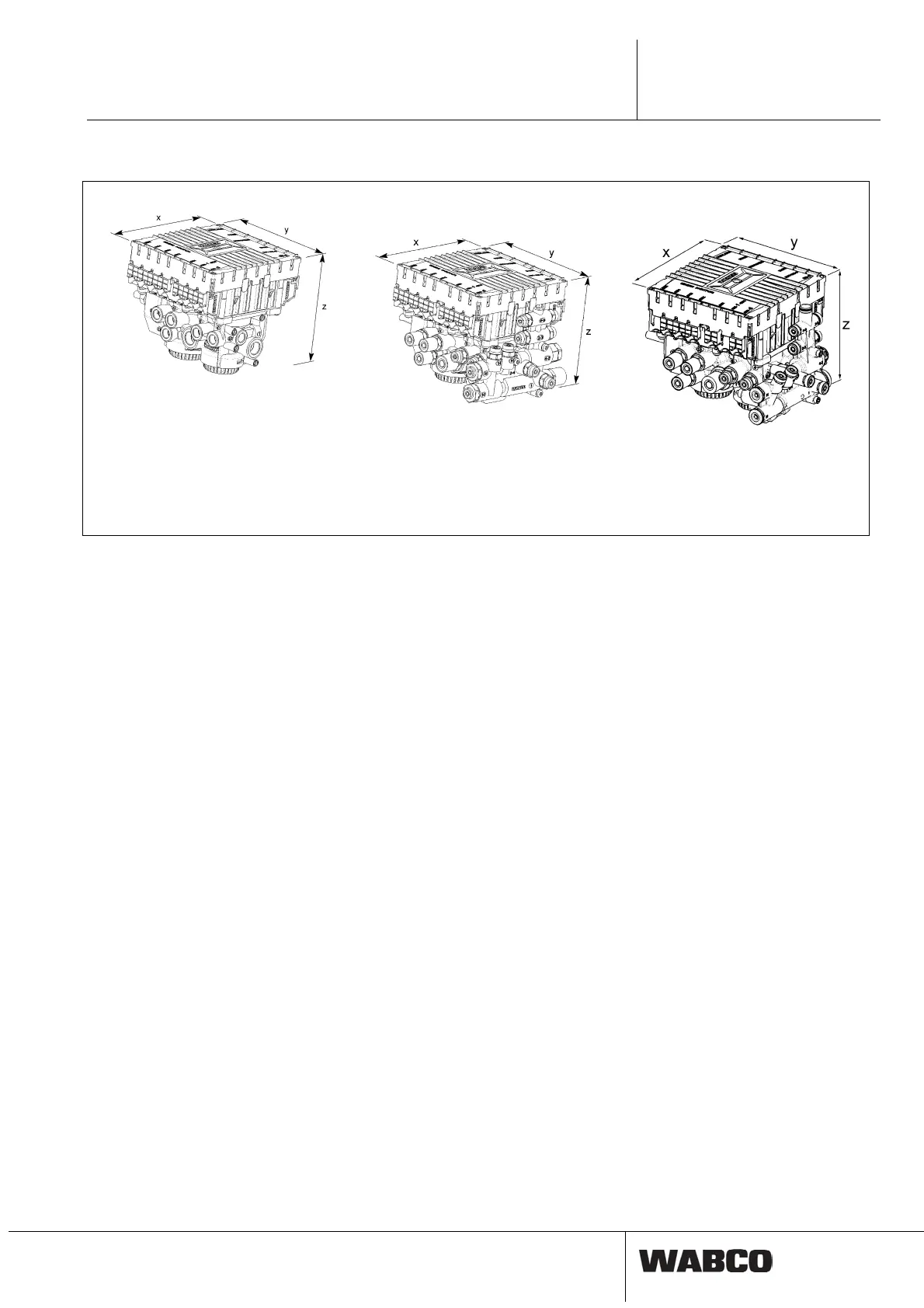

Dimensions of the TEBS E Modulator (Premium/Standard/Multi-Voltage)
TEBS E modulator without PEM
TEBS E modulator with PEM
(Aluminium)
TEBS E modulator with PEM
(Plastic)
Width X: 224.0 mm Width X: 237.2 mm Width X: 224.0 mm
Depth Y: 197.5 mm Depth Y: 274.4 mm Depth Y: 254.0 mm
Height Z: 197.3 mm Height Z: 197.3 mm Height Z: 197.3 mm
WABCO default setting for the TEBS E Modulator (Standard, Premium, Multi-Voltage) ex works
Parameter setting:
• 3-axle semitrailer
• 2S/2M
• 2nd axle is main axle (ABS rotational-speed sensor for axle c-d)
• LSV identifier 1:1
• No GIO functions active
• ABS-pole wheel with 100 teeth
• Tire circumference: 3250 mm
The electrical connections POWER and ABS-d, ABS-c have no protective covers.
