TEBS E
8
Installation notes
for vehicle installation and retrofitting
157
TailGUARD
– Install the external LIN ultrasonic sensors 446 122 402 0 / 446 122 404 0 in-
clined (15°) vertically towards the inside.
– Install the LIN ultrasonic sensor 446 122 401 0 (0°) centrally.
– As of version TEBS E2.5: For better detection of hollow (protruding) ramps the
central LIN ultrasonic sensor 446 122 401 0 can also be installed horizontally so
that the ultrasonic lobe is at one end. As with TailGUARDlight installation can
be vertical or horizontal.
The installation position must be defined in the TEBS E Diagnostic Software.
– If installed horizontally, the minimum height of the LIN ultrasonic sensor is 0.8 m
(see table ‘Installation options’).
With TEBS E2 / ELEX the central LIN ultrasonic sensor must be installed verti-
cally.
– Mount the central LIN ultrasonic sensor at max. 15 cm up or down.
Note the following install dimensions:

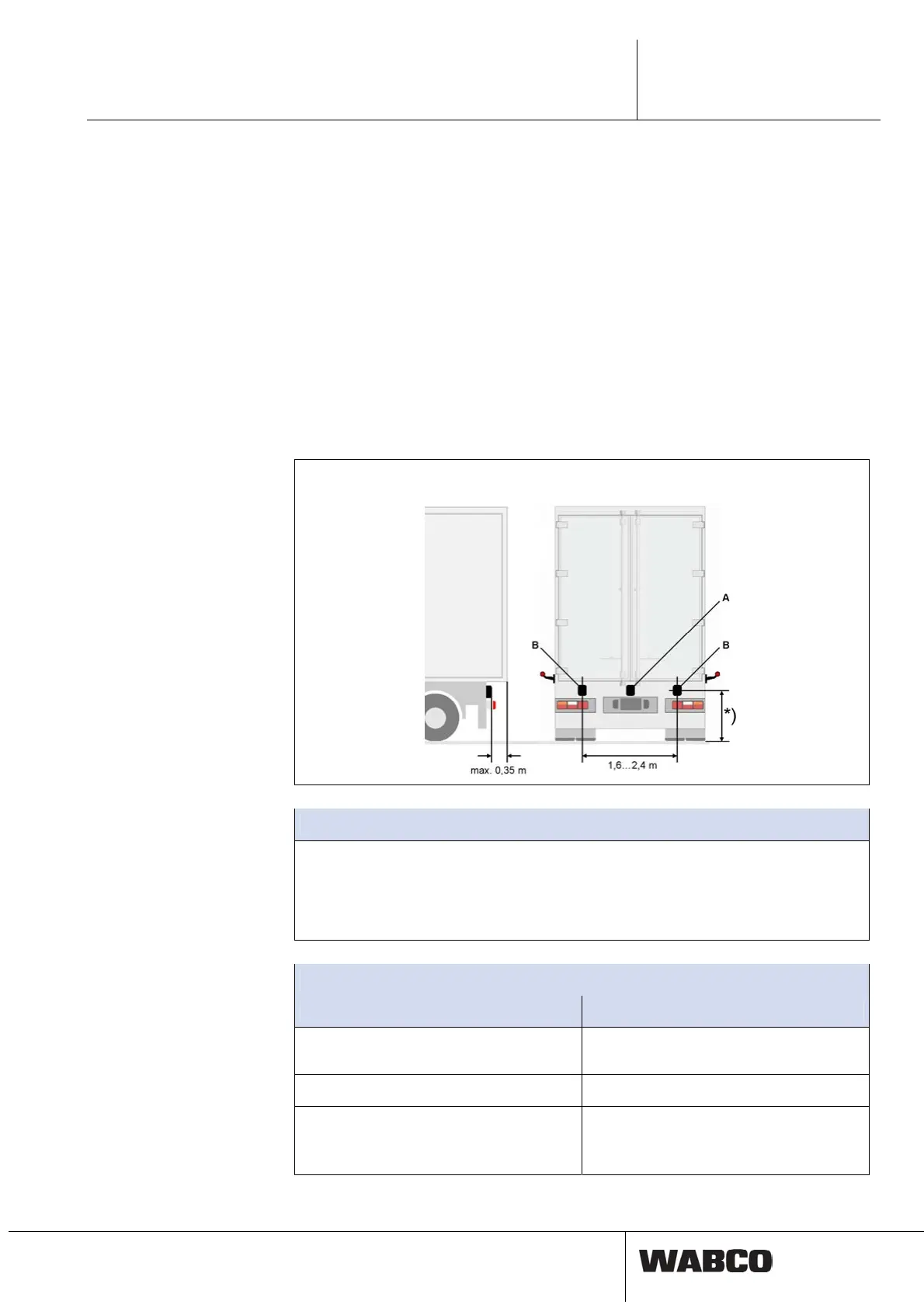

Installation dimensions – TailGUARD
Legend
Please observe the table on installation for LIN ultrasonic sensor alignment.
A
LIN ultrasonic sensor 0°
446 122 401 0
B
LIN ultrasonic sensor 15° 446 122 402 0 /
446 122 404 0
Do not install horizontally!
Installing the LIN ultrasonic sensors
As of version TEBS E2 and ELEX0 As of version TEBS E2.5 and ELEX1
External 446 122 402 0 / 446 122 404 0 –
15° vertical
External 446 122 402 0 / 446 122 404 0 –
15° vertical
Internal 446 122 401 0 – 0° vertical Internal 446 122 401 0 – 0° horizontal
Installation height 0.4 ... 1,6 m
(see figure ‘TailGUARD Installation dimen-
sions’)
*) Installation height 0.8 ... 1,6 m
(see figure ‘TailGUARD Installation dimen-
sions’)
