TEBS E Introduction
18

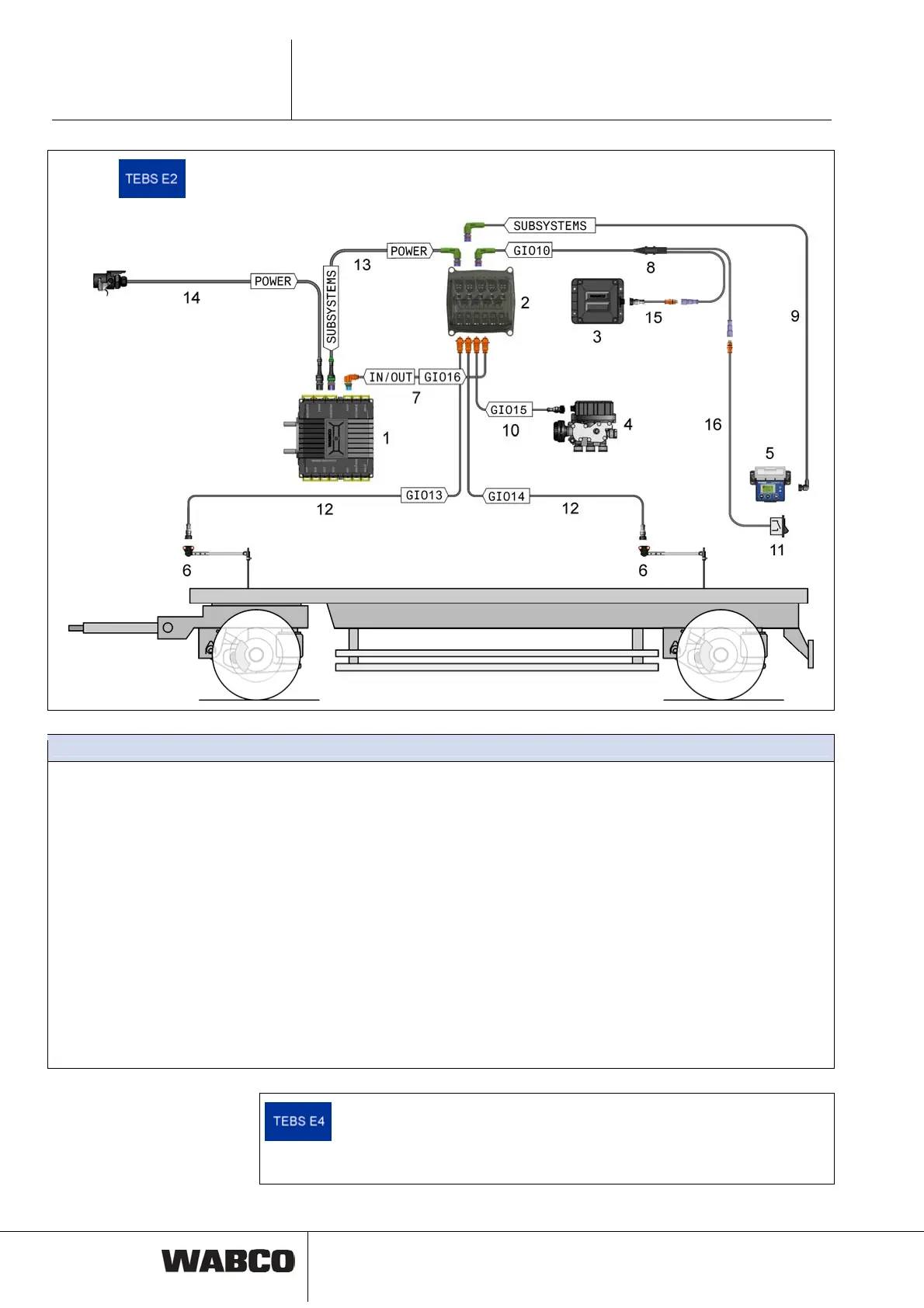

2-point control with two height sensors
Legend
1
TEBS E Modulator (Premium)
480 102 06. 0
2
Electronic expansion module (ELEX)
446 122 070
3
Battery box 446 156 090 0
4
ECAS solenoid valve
472 880 001 0
Optionally 472 905 111 0
(+ pulse-controlled lifting axle)
5
External remote control unit, e.g. SmartBoard
446 192 110 0
6
Height sensors
441 050 100 0
7
Cable for TEBS E battery supply
449 808 ... 0
(not required with TEBS E4 or
higher)
8
Battery distribution cable and/or light
449 803 ... 0
9
Cable for SmartBoard
449 906 ... 0
10
ECAS 2-point control cable
449 439 ... 0
11
Switch (for activating/deactivating the battery
charge)
12
Cable for height sensor
449 811 ... 0
13
Cable for ELEX supply
449 303 020 0
14
Supply cable 449 273 … 0
15
TEBS E battery cable
449 807 … 0
16
Cable for switch 449 714 … 0
2 point control can also be implemented without ELEX. This applies for
the Premium or multi-voltage variant.
ECAS solenoid valves or two eTASC can be used for control of the air
suspension.
