WABCO TEBS E1 - Page 209

TEBS E
12
Appendix
209

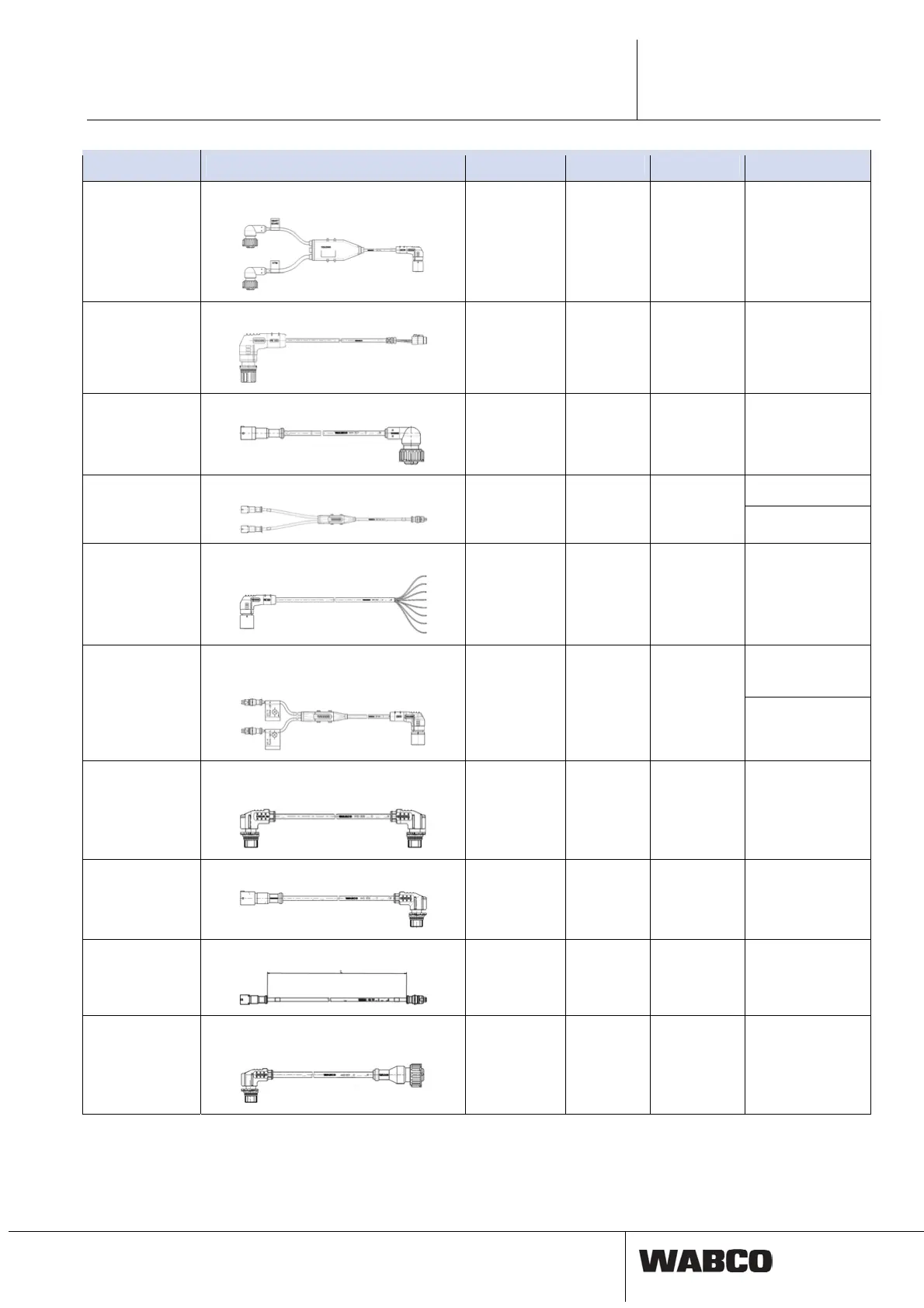

Slot on ELEX Application Part number Lengths ELEX Component
SUBSYSTEMS
Cable for SmartBoard + IVTM 449 925 253 0 6 m/6 m ELEX
8-pin
Code C
7-pin
2x DIN bayonet
SUBSYSTEMS
Cable for Telematics 449 907 010 0 1 m ELEX
8-pin
Code C
6-pin
GIO
TEBS E battery cable 449 807 050 0 5 m ELEX
DIN bayonet
4-pin
2-pin
Sensor plug
Sensor socket
GIO
LIN distribution cable 894 600 024 0 0,5 m ELEX
Sensor plug
Sensor socket
GIO12
Universal cable 449 908 060 0 6 m ELEX
8-pin
Code C
Open
2-pin
Sensor plug
GIO10/GIO11
Distribution cable
Battery and/or light
449 803 022 0 0,4 m/0.4 m ELEX
8-pin
Code C
2-pin
Sensor plug
GIO16
Cable for TEBS E battery supply
(TEBS E2 to TEBS E3)
449 808 020 0
449 808 030 0
2 m
3 m
ELEX
4-pin
Code B
4-pin
Code C
(IN/OUT EBS)
GIO17 and/or
GIO18
Cable for LIN ultrasonic sensor 449 806 060 0 6 m ELEX
4-pin
Code B
Sensor socket
GIO17 and/or
GIO18
Cable with device plug socket 449 747 060 0 6 m ELEX
4-pin
Code B
3-pin
Sensor prolonga-
tion cable
GIO17 and/or
GIO18
Cable for Trailer Central Electronic or
ultrasonic sensors
449 801 060 0 6 m ELEX
4-pin
Code B
4-pin
DIN bayonet
