TEBS E
5
braking system
39

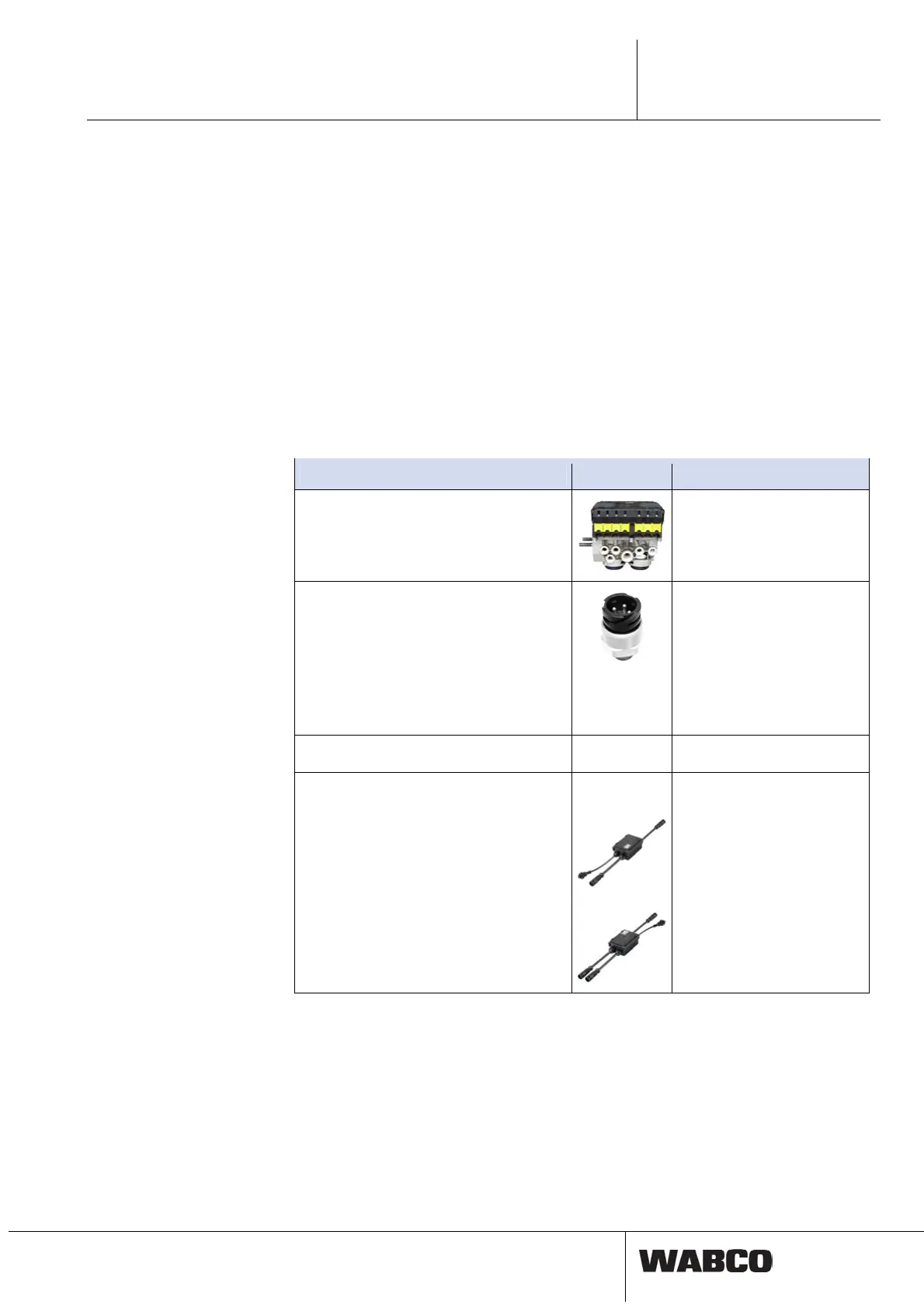

5.9.1.1 External nominal value sensor
Vehicle type
All trailers, particularly where there is a great distance between yellow coupling
head and TEBS E Modulator.
Purpose
Improving the response time in towing vehicles without EBS (no CAN signal).
Installation
In the control line on the front of the vehicle or directly on the CAN router or CAN
repeater see chapter 5.5 ‘Description of the components of the electropneumatic
braking system’, page 29.
A desired val
ue pressure sensor cannot be connected to the ELEX.
Components
Component Figure Part number
TEBS E Modulator (Premium)
480 102 06. 0
Nominal value pressure sensor (0 to 10
bar)
Use only at the responsibility of the
vehicle manufacturer, depending on the
vehicle construction.
Assignment of the GIO connections is
determined using the TEBS E Diagnostic
software.
441 044 101 0
441 044 102 0
Cable for desired pressure sensor
449 812 ... 0
CAN-Router or CAN-Repeater
A precise description of the CAN-Router
and CAN-Repeater can be found in the
corresponding documentation see chap-
ter 4 ‘Introduction’, page 12 =
> ‘More in-
formation’ section.
CAN-
Repeater
CAN-Router
446 122 05. 0
Overview of variants, see
chapter 5.5 ‘Description of the
components of the elec-
tropneumatic braking system’,
page 29
Parameter setting
Activation is done via tab 8, General functions.
