TEBS E
5
braking system
43
5.9.2.1 Mechanical suspensions
Vehicle type
Vehicles with leaf-spring suspension (mechanical suspension).
Purpose
Determining the axle loads
Function
The axle load information for the LSV function is derived from the compression
travel of the axle combination. ECAS height sensors are used for this purpose. In
this particular case of application the sensor delivers a signal that is proportional to
the suspension travel and therefore the current axle load.
Further information see chapter 5.9.2 ‘Load Sensing Valve (LSV)’, page 40.
Conn
ecting the components

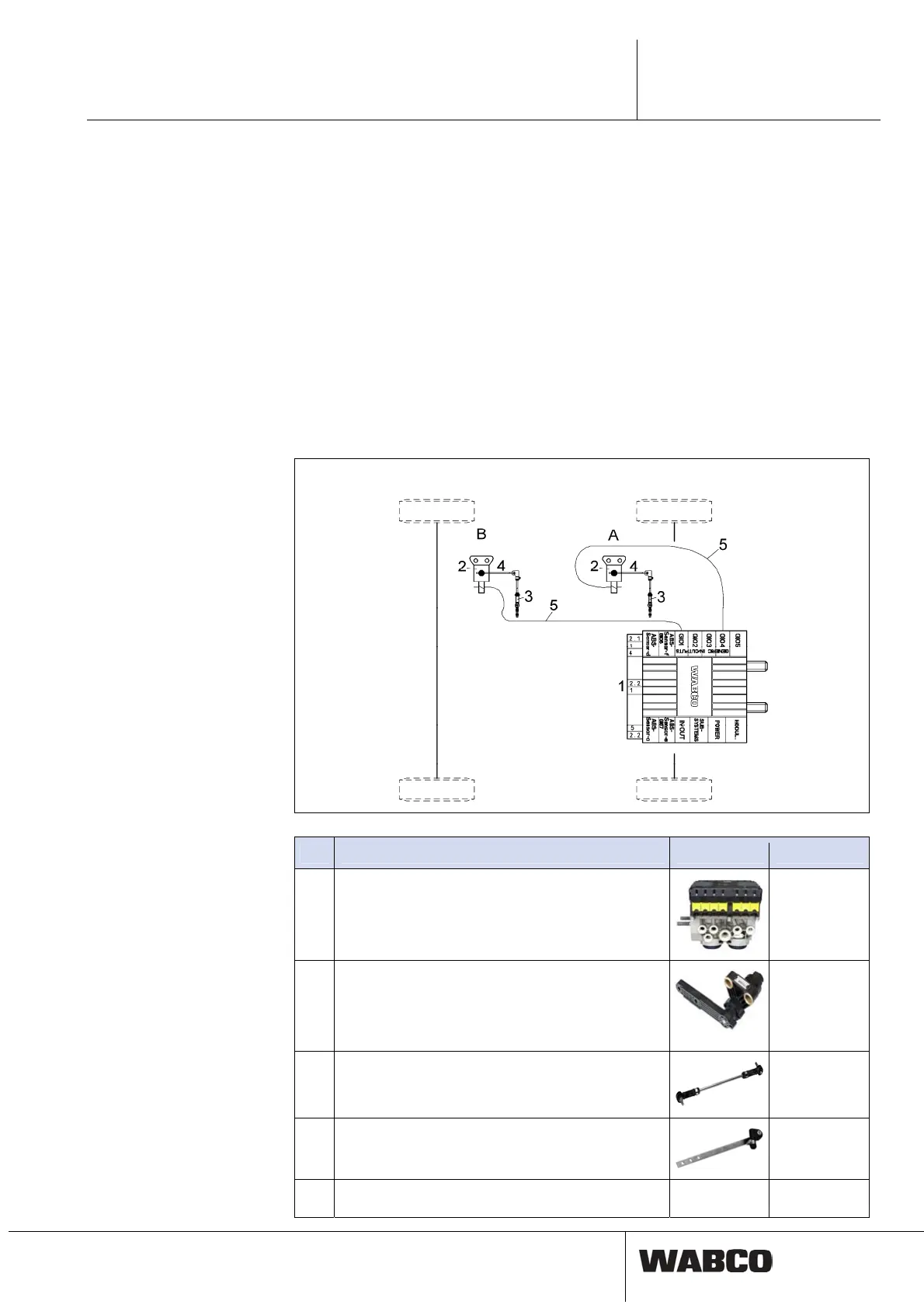

Extract from diagram 841 802 154 0
Item Component Figure Part number
1 TEBS E Modulator (Premium)
Installation: Possible on front or rear axle.
480 102 06. 0
2 Height sensor
Installation: Height sensor A on axle c-d; height
sensor B on axle e-f
441 050 100 0
3 Linkage (available in different lengths) 441 050 71. 2
4 Lever (extending the height sensor lever) 441 050 718 2
441 050 641 2
5 Cable for height sensor
449 811 ... 0
