GIO functions
67
Component /
Part number
Application /
Vehicle type

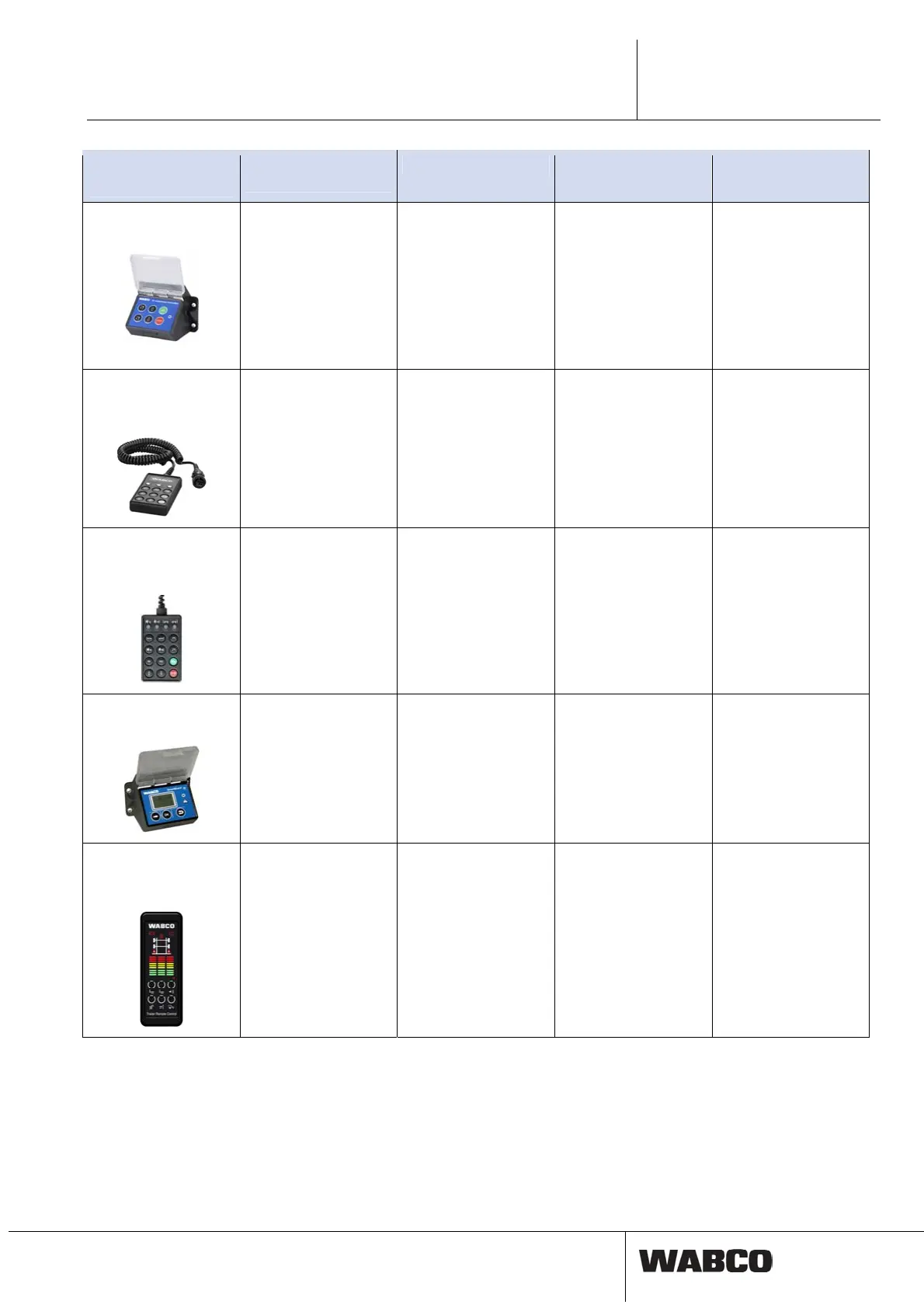

Purpose/Function Comment Connecting cable
ECAS control box
446 156 02. 0
446 156 021 0
Semitrailer without
lifting axle
446 156 022 0
Semitrailer with lifting
axle
446 156 023 0
Drawbar trailer
Remote control unit
(with 6 buttons) for
adjusting the level and
the lifting axle control
by the driver
Installed on the side of
the trailer
Cable for ECAS
control box
449 627 ... 0
ECAS remote control
unit
446 056 117 0
Semitrailer / Drawbar
trailer
Remote control unit
(with 9 buttons) for
adjusting the level and
the lifting axle control
by the driver.
Normally installed on
the side of the trailer.
Remote control unit
and cable connection
must be protected
against humidity.
Cable for ECAS remote
control unit
449 628 ... 0
ECAS remote control
unit
446 056 25. 0
Semitrailer / Drawbar
trailer
Remote control unit
(with 12 buttons) for
adjusting the level and
the lifting axle control
by the driver
Normally installed on
the side of the trailer
Remote control unit
and cable connection
must be protected
against humidity.
SmartBoard
446 192 11. 0
446 192 110 0 (with
integrated battery)
446 192 111 0 (for
hazardous goods vehi-
cles)
Display and operating
console for adjusting
the level and the lifting
axle control by the
driver
Normally installed on
the side of the trailer
Replacement battery
446 192 920 2
Connection to TEBS E
449 911 ... 0
Connection to
ELEX449 906 ... 0
Trailer Remote Con-
trol
446 122 080 0
Application in towing
vehicle for controlling
trailers with TEBS E
and ELEX
Display and operating
console for influencing
the level and the lifting
axle control by the
driver (outside the
driver's cab)
Only in combination
with ELEX and version
TEBS E2 see chap-
ter 7.1 ‘Electronic ex-
pansion module
(ELEX)’, page 126 or
hig
her
Connecting cable be-
tween Trailer Remote
Control and fuse box in
the truck and a bracket
are included in deliv-
ery.
Operation
Information on operation see chapter 10 ‘Operation’, page 172.
