6
TEBS E
GIO functions
88

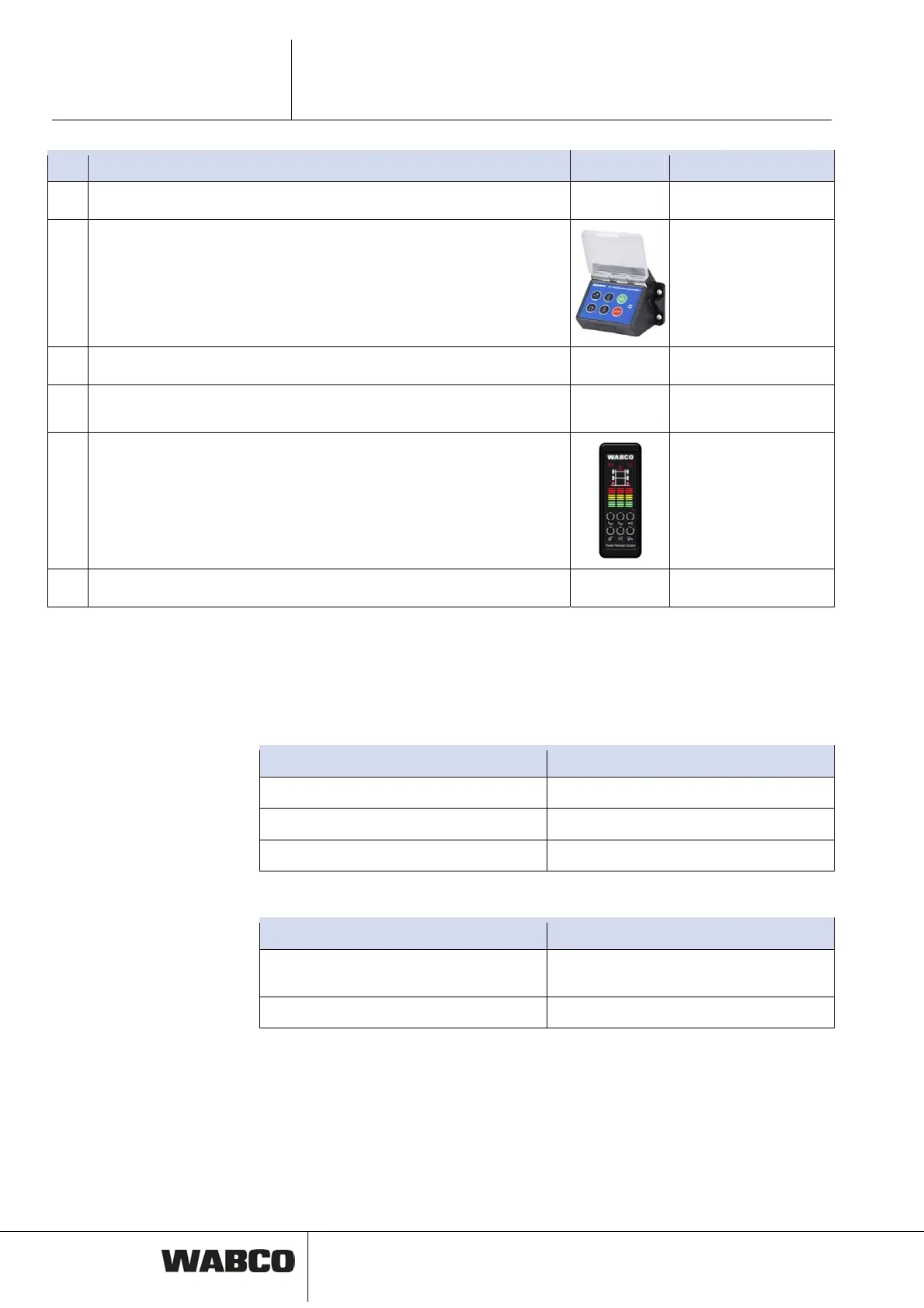

Item Component Figure Part number
12 Cable for SmartBoard (optional)
449 911 ... 0
13 ECAS control box (optional)
446 156 022 0
14 Cable for ECAS control box (optional)
449 627 060 0
15 Manoeuvering assistance button
Not part of WABCO's
scope of supply
Trailer Remote Control (optional)
Only in combination with ELEX and version TEBS E2 or higher.
Connecting cable between Trailer Remote Control and fuse box in the truck
and a bracket are included in delivery.
446 122 080 0
16 GIO 'Y' distributor
449 629 ... 0
OptiLoad/OptiTurn in combination with a conventional air suspension
This equipment range never fulfils the optimal and efficient level of use for the func-
tional advantages. WABCO does not recommend using a conventional air suspen-
sion system with the Opti functions.
Recommendations for air supply
Reservoir sizes for air suspension Application
80 litre one lifting axle
100 litre two lifting axles
120 litre OptiTurn or OptiLoad
Recommendations for line cross sections for a good response time test
Connection Cross section
Air suspension supply – ECAS/lifting axle
valve
12 mm
ECAS/lifting axle valve – support bellows 12 mm
Parameter setting
The settings are defined via tab 5, Lifting axle control.
The GIO slots to use are defined in tab 11, connector.
