Connecting the components

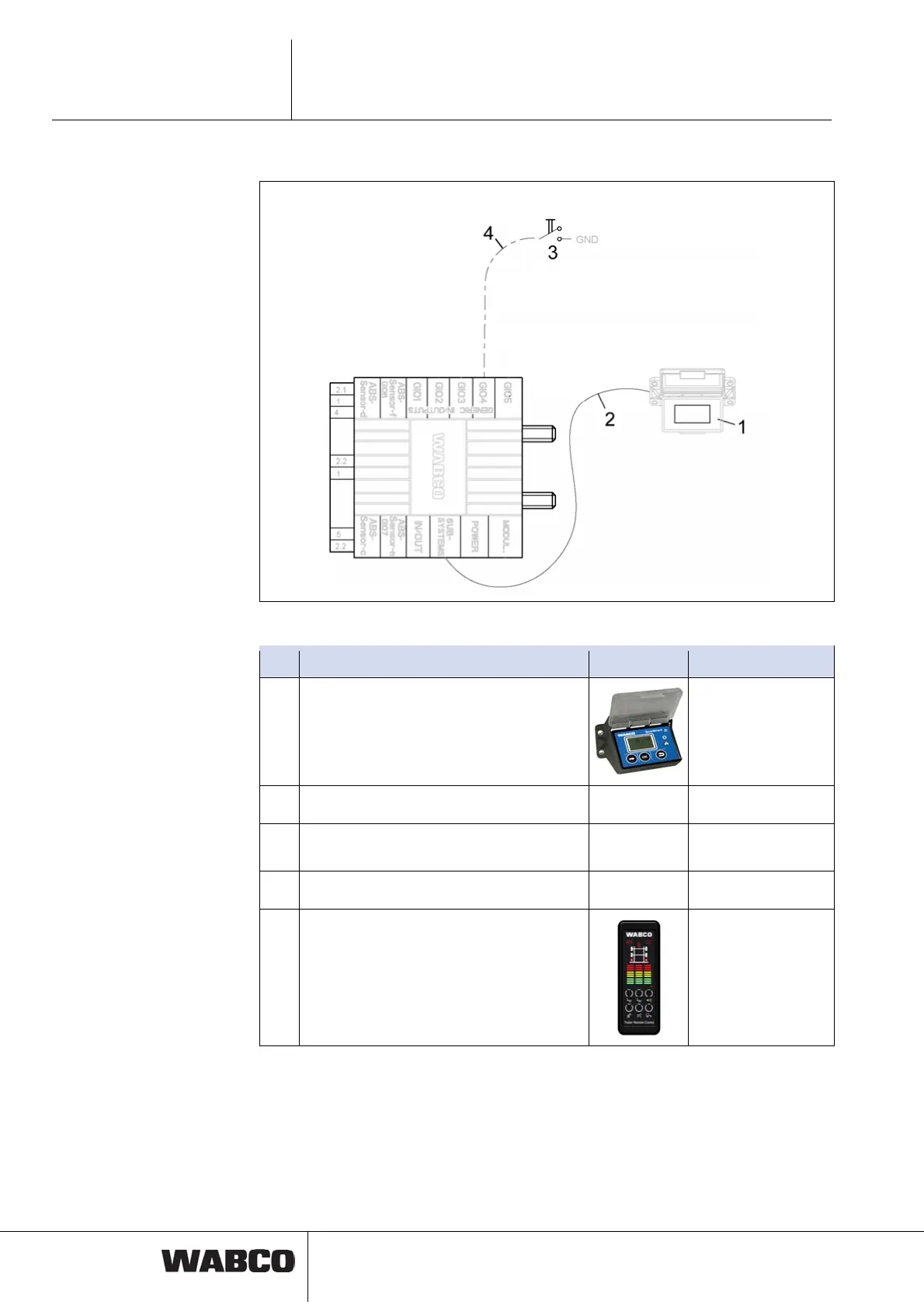

Extract from diagram 841 802 290 3
The following components can be used for indication and operation:
Item Component Figure Part number
1 SmartBoard
446 192 110 0
2 Cable for SmartBoard
449 911 ... 0
3 Switch (optional)
Not part of WABCO's
scope of supply
4 Universal cable (optional)
449 535 ... 0
Trailer Remote Control (optional)
Only in combination with ELEX and version
TEBS E2 or higher.
Connecting cable between Trailer Remote
Control and fuse box in the truck and a
bracket are included in delivery.
446 122 080 0
Parameter setting
Activation and settings are made via tab 6, Brake functions.
The GIO slots to use are defined in tab 11, connector.
