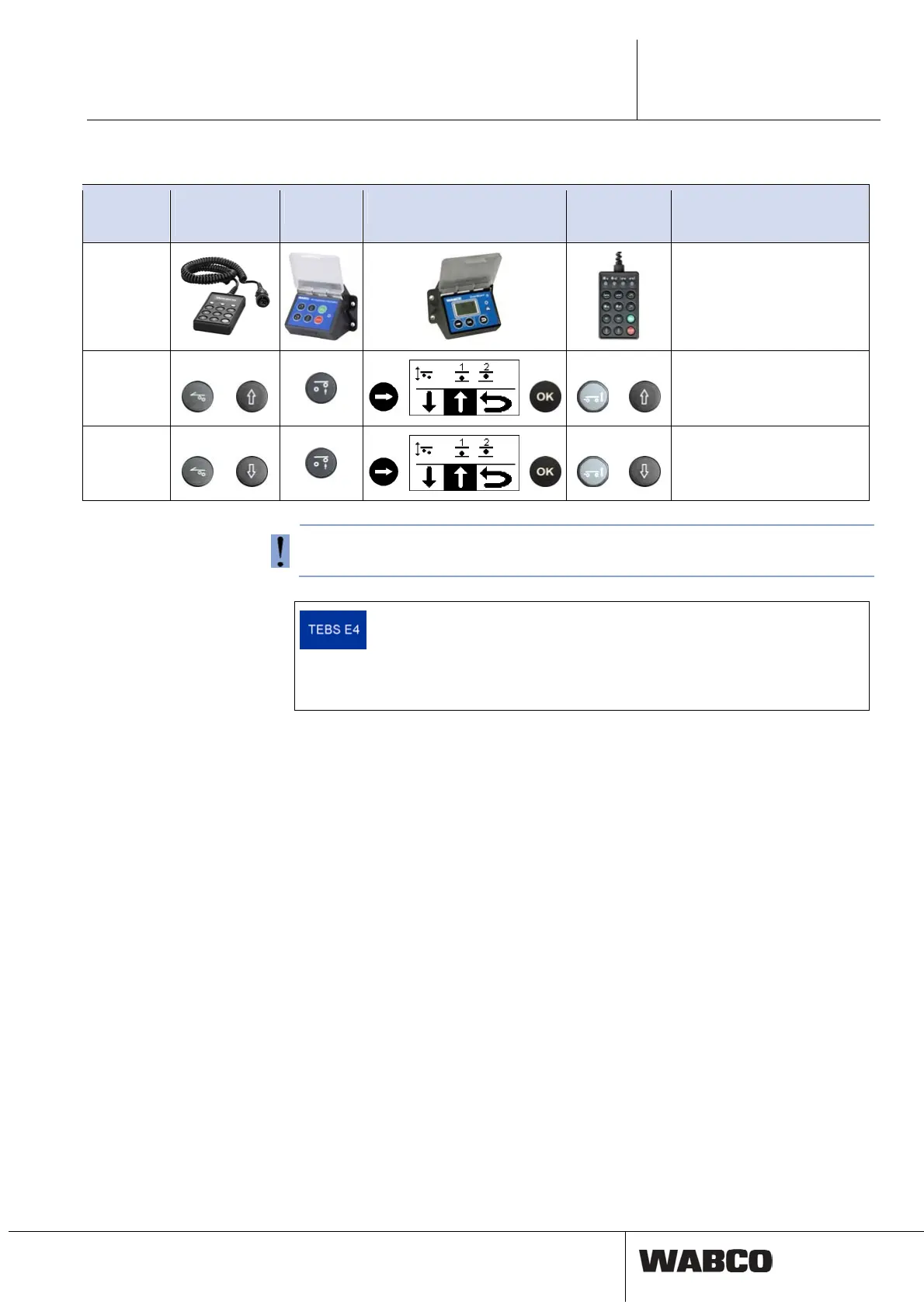

10.6 Lifting axles operation
Remote control
unit
446 056 11. 0
Control box
446 156 02. 0
SmartBoard
446 192 11. 0
Remote control
unit
446 056 25. 0
Button/switch
Raise lifting
axle(s)
1. 2. 1. 2.
1.
2.
–
Lower lifting
axle(s)
1.
2.
1. 2.
1. 2.
Button / switch - via ‘Forced lowering’
function
Deactivation of the automatic lifting
axle function
You can use the ‘Forced lowering’ button/switch to toggle between modes: forced
lowering and fully automated lifting axle modes.
With TEBS E4 or higher the lifting axle function can also be switched
off completely.
For vehicles with several separately controlled lifting axles this permits
lowering the 1st lifting axle by means of deactivation so that the 2nd
lifting axle can be lifted.
10.7 Operating the Immobilizer
You will find a detailed description of Immobilizer operation via SmartBoard in the
publication ‘SmartBoard – System description’, see chapter 4 ‘Introduction’,
page 12 => Section ‘Mo
re information’.
More information on operating the immobilizer with the Trailer Remote Control, see
chapter 10.2 ‘Operation with Trailer Remote Control’, page 172.
