WABCO TEBS E4 - Trailer Central Electronic

7
TEBS E External systems
138
7.4 Trailer Central Electronic
Application
The Trailer Central Electronic is upstream of the TEBS E.
The TEBS E modulator (multi-voltage) cannot be combined with Trailer Central
Electronic.
Purpose
Electrical supply, sensor data transfer (bellows pressure sensor, wear sensor) and
monitoring of the TEBS E via the CAN line.
Only the speed sensors and a possibly installed nominal value pressure sensor
have to be connected to the TEBS.
The Trailer Central Electronic can also be used for additional functions such as lift-
ing axle control or brake lining wear indication.
Function
Please refer to the documents ‘Trailer Central Electronic I / II central electronics in
trailers – System description’ see chapter 4 ‘Introduction’, page 12 =>
section ‘Fur-
ther information’ for a detailed description of the system.

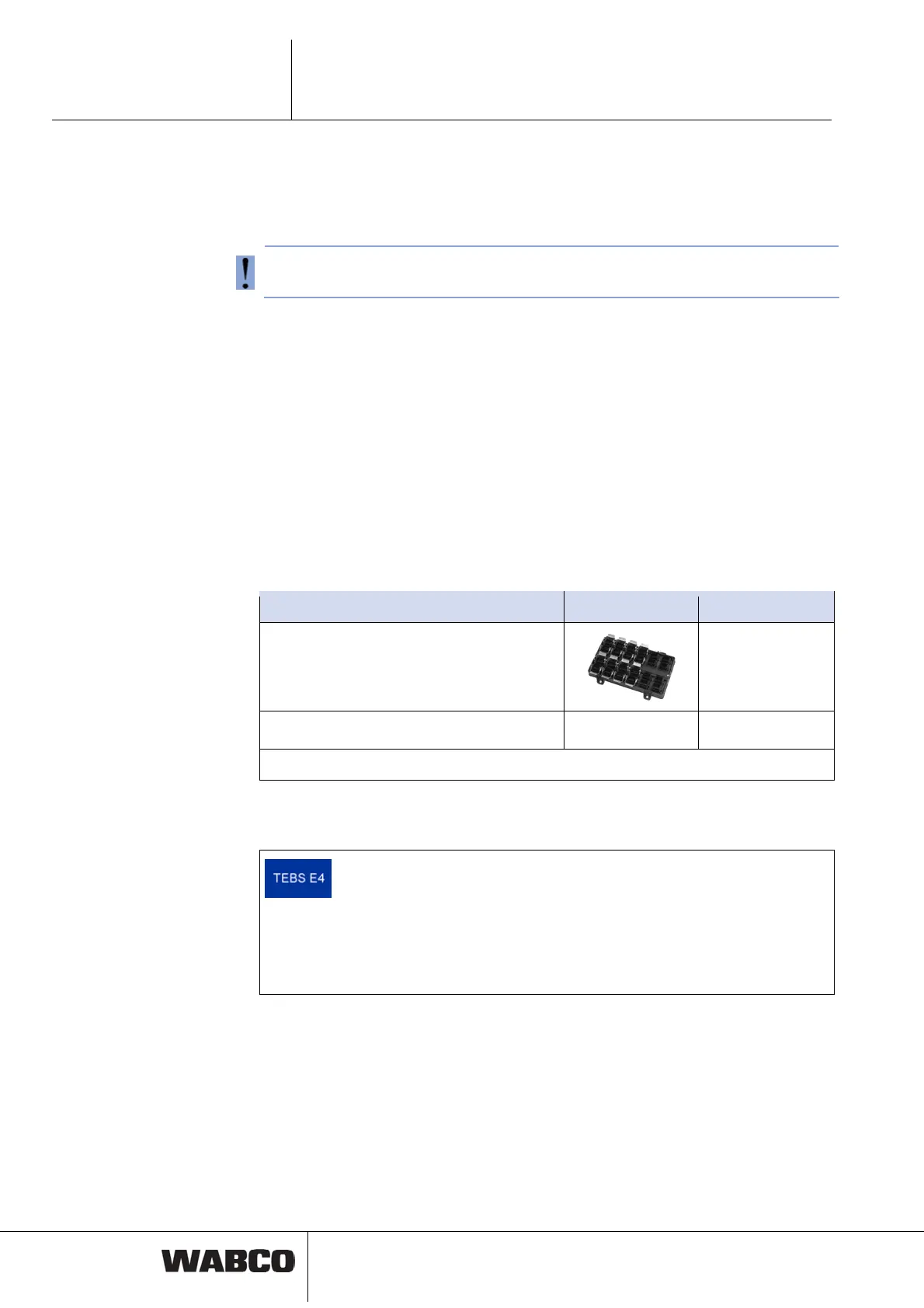

Components
Component Figure Part number
Trailer Central Electronic 446 122 001 0
Cable for Trailer Central Electronic 449 348 ... 0
Solenoid valves and sensors are also required.
Start-up
For start-up, TEBS E is put into operation first and then Trailer Central Electronic.
Trailer Central Electronic is no longer supported.
If a repair is required, a Reman modulator should be used. As an al-
ternative, the supply can be implemented using the Premium version
of TEBS E4 or higher. The cable 449 348 … 0 is split in a distributor
box for this purpose: A cable 449 349 … 0 is used to connect the sup-
ply voltage to In/Out and CAN is connected using a cable 449 537 … 0
to GIO5.
