TEBS E
6
GIO functions
99
Parameter setting
The function is activated via tab 6, Brake functions.
The GIO slots to use are defined in tab 11, connector.
Operation
Information on operation, see chapter 10.3 ‘Operation of ECAS level control’,
page 180 an
d see chapter 10.2 ‘Operation with Trailer Remote Control’, page 172.
6.15.1 Proximity switch
Vehicle t
ype
All trailers with an unloading level option or road finisher brake
Purpose
The proximity switch can be used as a switch for the unloading level control func-
tions, for actuating the road finisher brake or for controlling the SafeStart function.
The following proximity switch can be used to actuate the functions named above
without contact:
• Telemecanique XS7C1A1DAM8
• Schönbuch Electronic IO25CT 302408
• Balluff BES M30MF-USC15B-BP03
• Schönbuch Electronic MU1603111

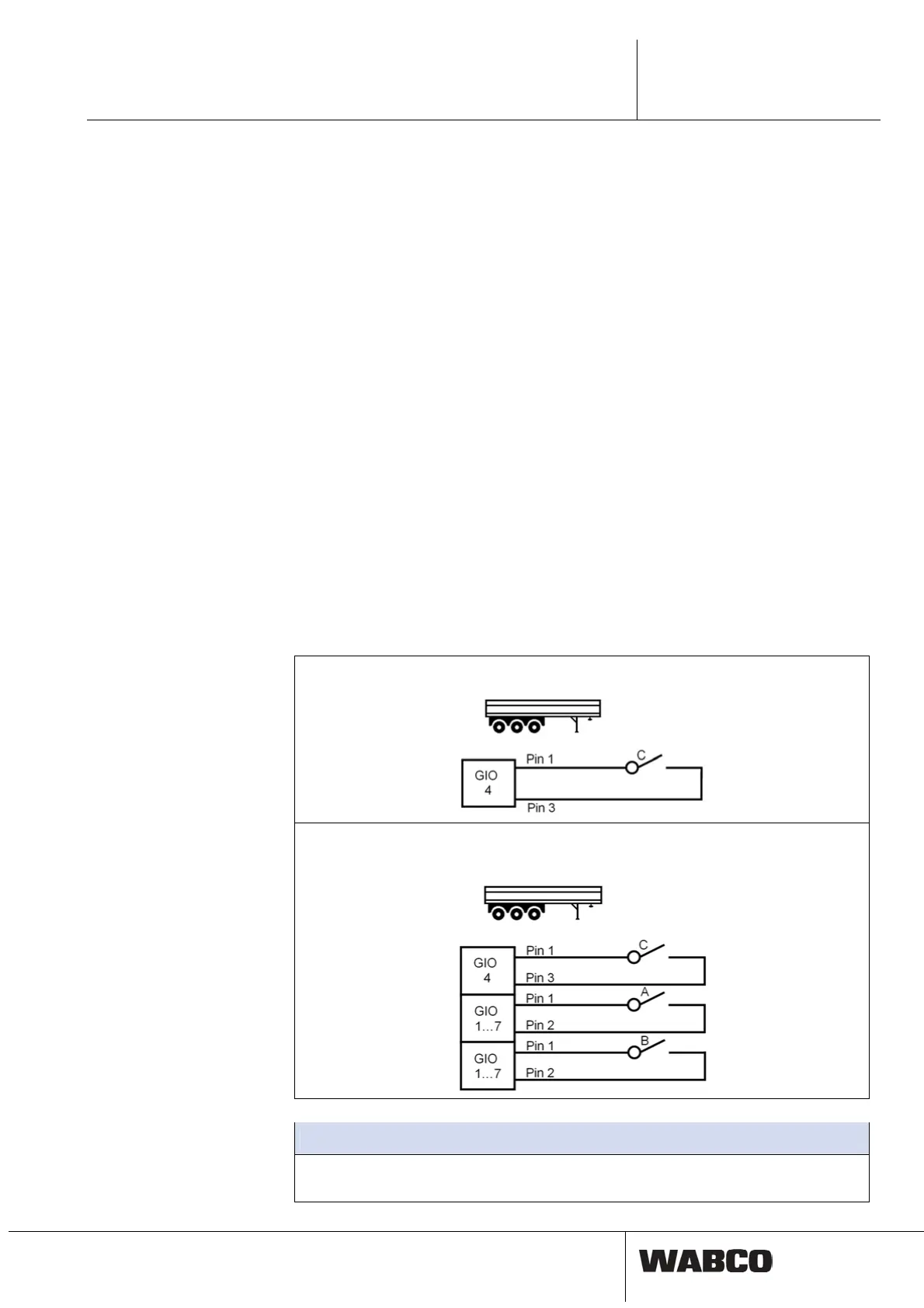

Connection of the proximity switch
Proximity switch for actuating the street finisher / unloading level
Figure 1
Proximity switch with separate off switches for the road finisher
and unloading level
Figure 2
Legend
A
‘Road finisher brake on/off’
switch
B
‘Unloading level on/off’
switch
C
Proximity
switch
