TEBS E
6
GIO functions
111
Combination with other functions
The electronic parking brake can be combined with SafeStart and/or the Immobi-
lizer using the same components.
Components

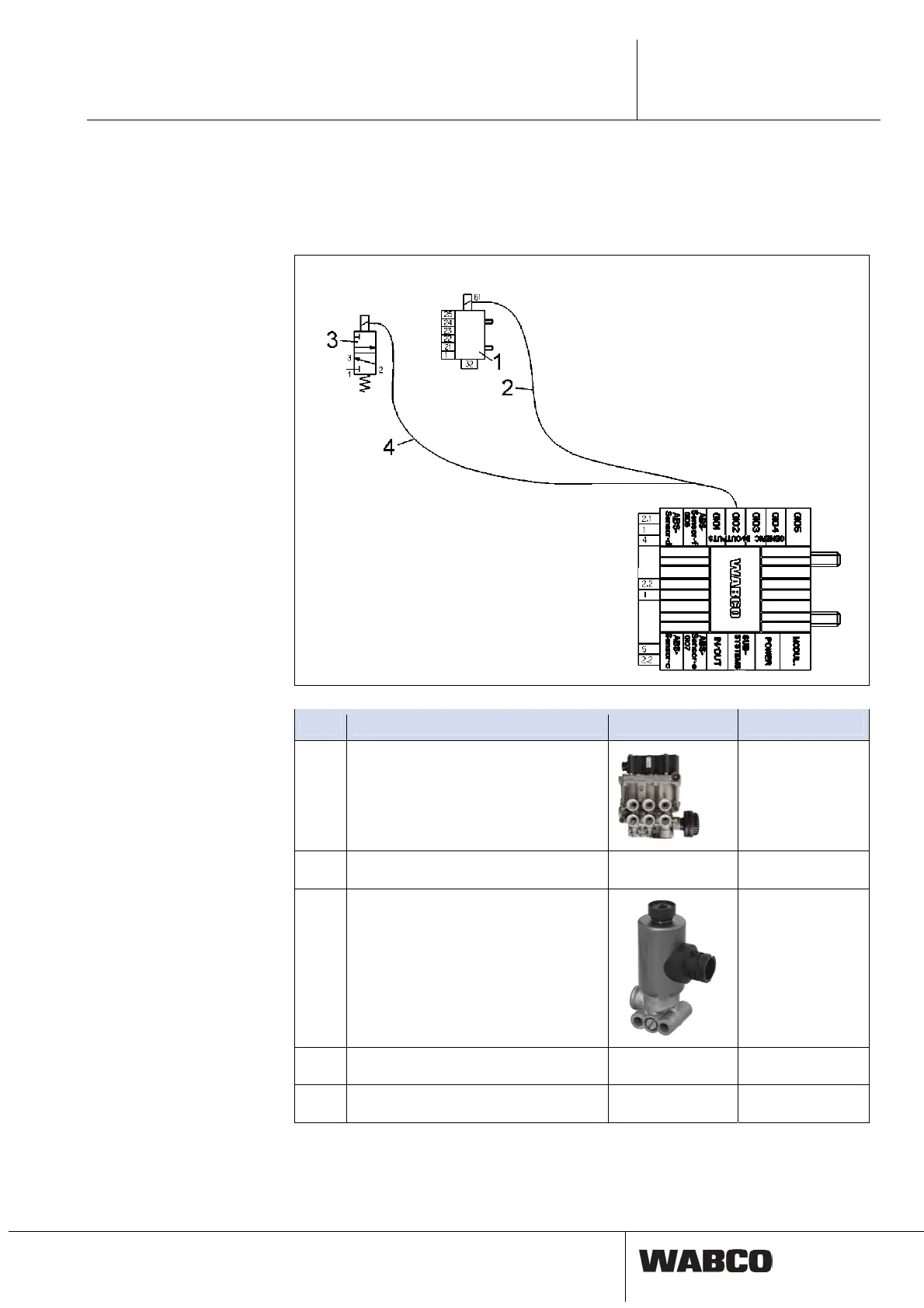

Extract from schematic diagram 841 701 264 0
Item Component Figure Part number
1 LACV-IC
463 084 100 0
2 Cable for lifting axle valve
449 445 … 0
3 3/2 solenoid valve
472 170 606 0
4 Cable for 3/2 solenoid valve
449 443 … 0
Switch or button on a GIO port
Parameter setting
Activation and settings are made via tab 6, Brake functions.
The GIO slots to use are defined in tab 11, connector.
