GIO functions
122

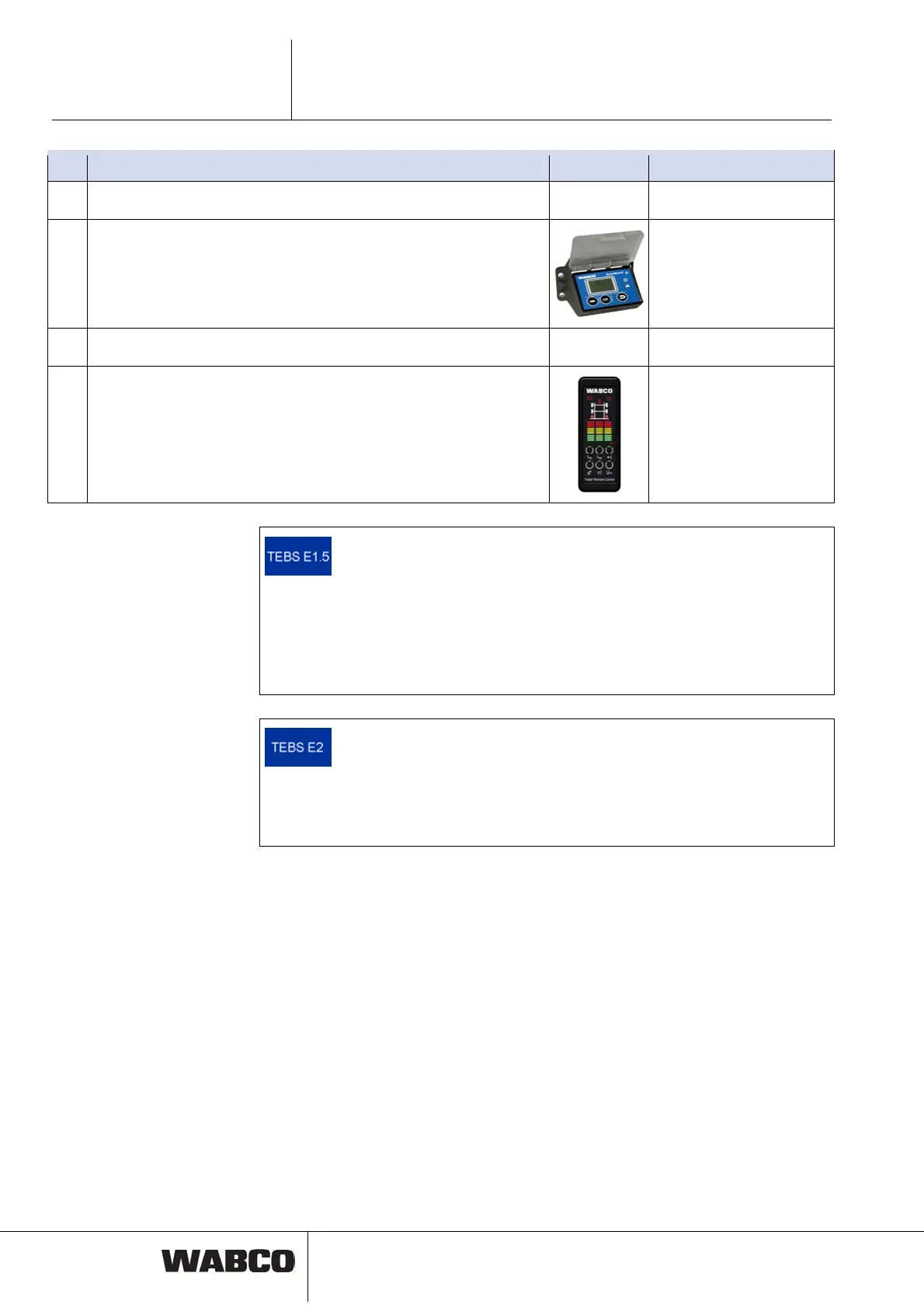

Item Component Figure Part number
4 Universal cable for alarm signal (optional)
449 535 … 0
5 SmartBoard 446 192 11. 0
6 Cable for SmartBoard
449 911 ... 0
Trailer Remote Control (optional)
Only in combination with ELEX and version TEBS E2 or higher.
Connecting cable between Trailer Remote Control and fuse box in the
truck and a bracket are included in delivery.
446 122 080 0
In TEBS E1.5 modulator, the immobilizer function cannot be combined
with the ECAS valve 472 905 114 0 for electronic air suspension and
controlling the OptiTurn or OptiLoad functions.
The optional output devices can be connected to GIO1-7. The supply
voltage output is 24 V.
The immobilizer function can be tested by means of the EOL test or
the Control menu. Activating the function with the PUK key is not re-
quired in this case.
With version TEBS E2 or higher, additional GIO interfaces can be
used to install the most advanced features of the immobilizer in com-
bination with the OptiLoad and OptiTurn functions:
Lifting axle valve (LACV-IC) 463 084 100 0 with an ECAS solenoid
valve 472 905 114 0 or 2x lifting axle valve (LACV-IC) 463 084 100 0
with the ECAS solenoid valve 472 880 030 0.
Installation
Information on installation, see chapter 8.6 ‘Installation of Immobilizer components’,
page 152.
Parameter s
etting
Activation and settings are made via tab 8, Brake functions.
The GIO slots to use are defined in tab 11, connector.
Unlocking and activating the immobilizer
The serial number of the TEBS E modulator and the PUK are required for initial ac-
tivation after setting the parameters.
PUK
One PUK is necessary for each unlocking/vehicle. The document ‘PUK Access
Code 813 000 049 3’ together with the individual voucher code (1x per vehicle) is
needed for this purpose.
