7
TEBS E
External systems
128

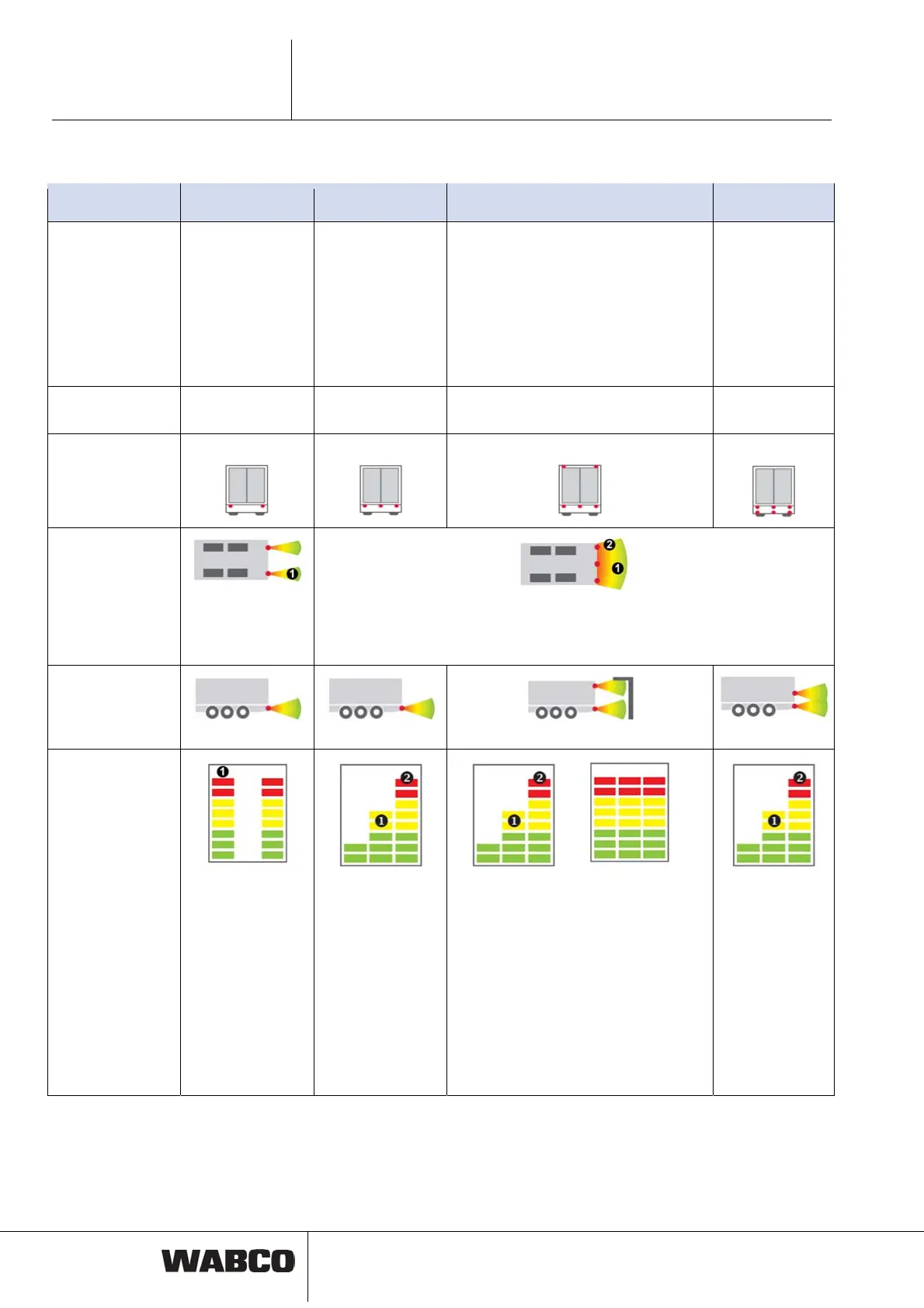

System Configuration
TailGUARDlight TailGUARD TailGUARD
Roof
TailGUARDMAX
Typical logistical
environment
Large loading
ramps with equal
shape or even
walls; no objects or
people behind the
towing vehicle.
Loading ramps and
large objects, such
as palettes, vehi-
cles and posts of
metal or wood that
vary in shapes and
size and are un-
known to the driver.
Areas with limited height proportions:
e. g. warehouses, loading gates, trees
and roof constructions.
Areas with small
and / or moving
objects: e. g.
forklift shipping,
road signs, retail
stores, residential
areas.
Tested to
ISO 12155
Trailer Remote
Control
optional optional optional compulsory
Number of ultra-
sonic sensors
(Bullet = Sensor)
2x
3x
5x
6x
Area blocked by
sensors
(View from top of
vehicle)
The circles with 1
and 2 indicate
objects.
Limited
Complete rear of towing vehicle is covered by sensors.
Area blocked by
sensors
(Side view of
trailer)
View at ground
level
View at roof height
Display on the
Trailer Remote
Control
Each bar repre-
sents 50 cm. Red
(top 3 bars): 0 to
150 cm; Yellow
(central 3 bars):
150 to 300 cm;
Green (bottom 3
bars): 300 to 450
cm.
In close proximity
(red LEDs) the
following also ap-
plies: Each LED
has 2 states: con-
stant and flashing.
This increases the
resolution to 25 cm.
The level with nearest object will be
displayed.
