TEBS E
8

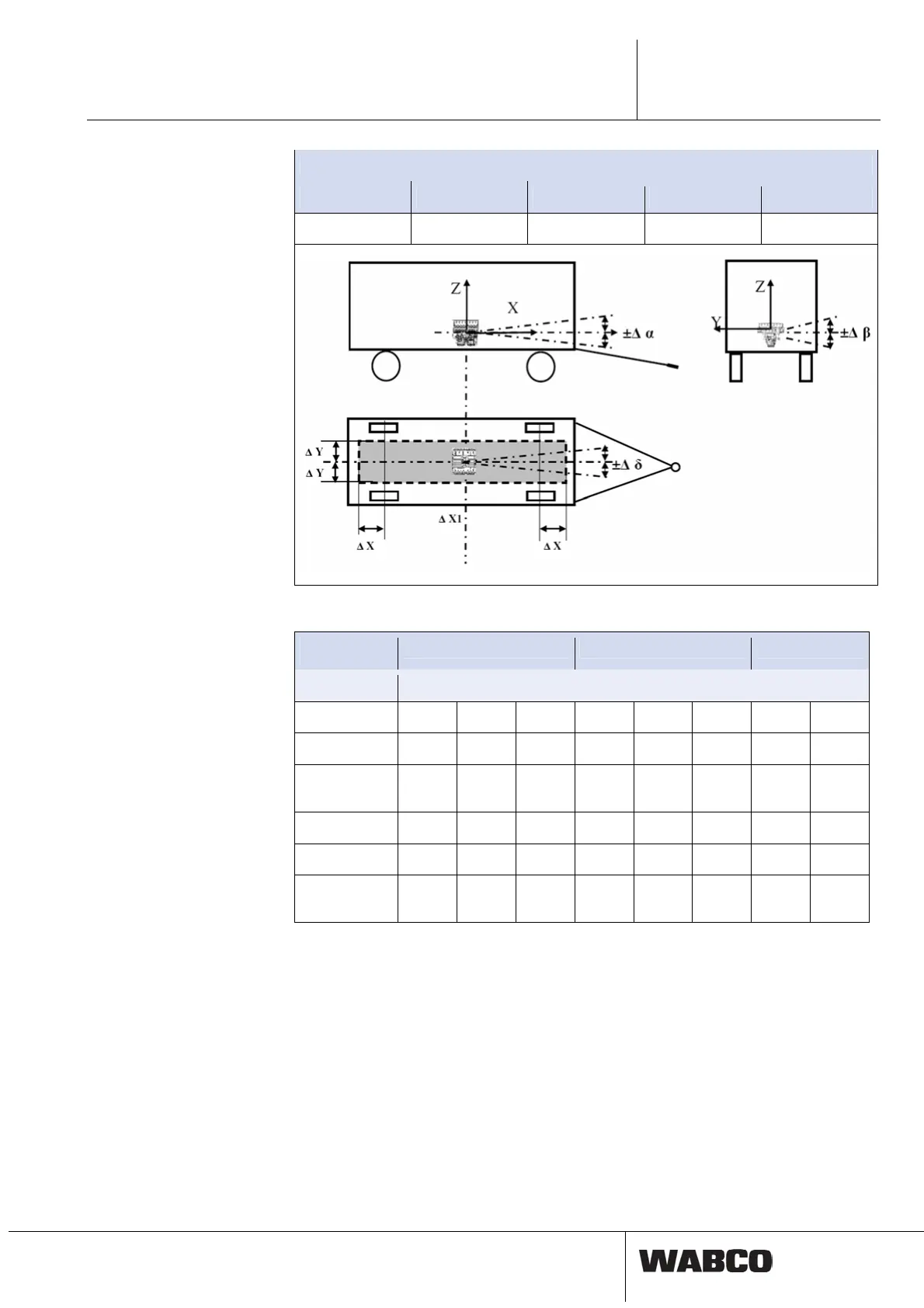

Installation notes
for vehicle installation and retrofitting
147
Drawbar trailer
Δ X [mm] Δ Y [mm] Δα Δβ Δδ
600 500 ±15° ±3° ±3°
Permissible configurations for vehicles with TEBS E and RSS
Semitrailer Central axle trailer Drawbar trailer
System Number of axles
2S/2M 1 2 3 1 2 3 - -
4S/2M - 2 3 ... 6 - 2 3 - -
2S/2M+Select-
Low-Valve
- 2 3 - 2 3 - -
4S/2M+1M - 2 3 ... 6 - 2 3 - -
4S/3M - 2 3 ... 6 - 2 3 2 3
Mechanical
suspension
1 2 3 ... 6 1 2 3 2 3
