TEBS E
8
Installation notes
for vehicle installation and retrofitting
149
CAUTION
Damage to the power cable
To avoid damaging the connector when the cable is pulled through, the connector
is enclosed by a protection cap.
– Carefully remove the protective cap when connecting the cable to the ECU so
that the seal will not be damaged or slip.
Cable fixation
CAUTION
Damage to the cable
– Fasten the cable ties so that the cable is not damaged.
When using tools, please note the instructions of the cable-tie manufacturer.

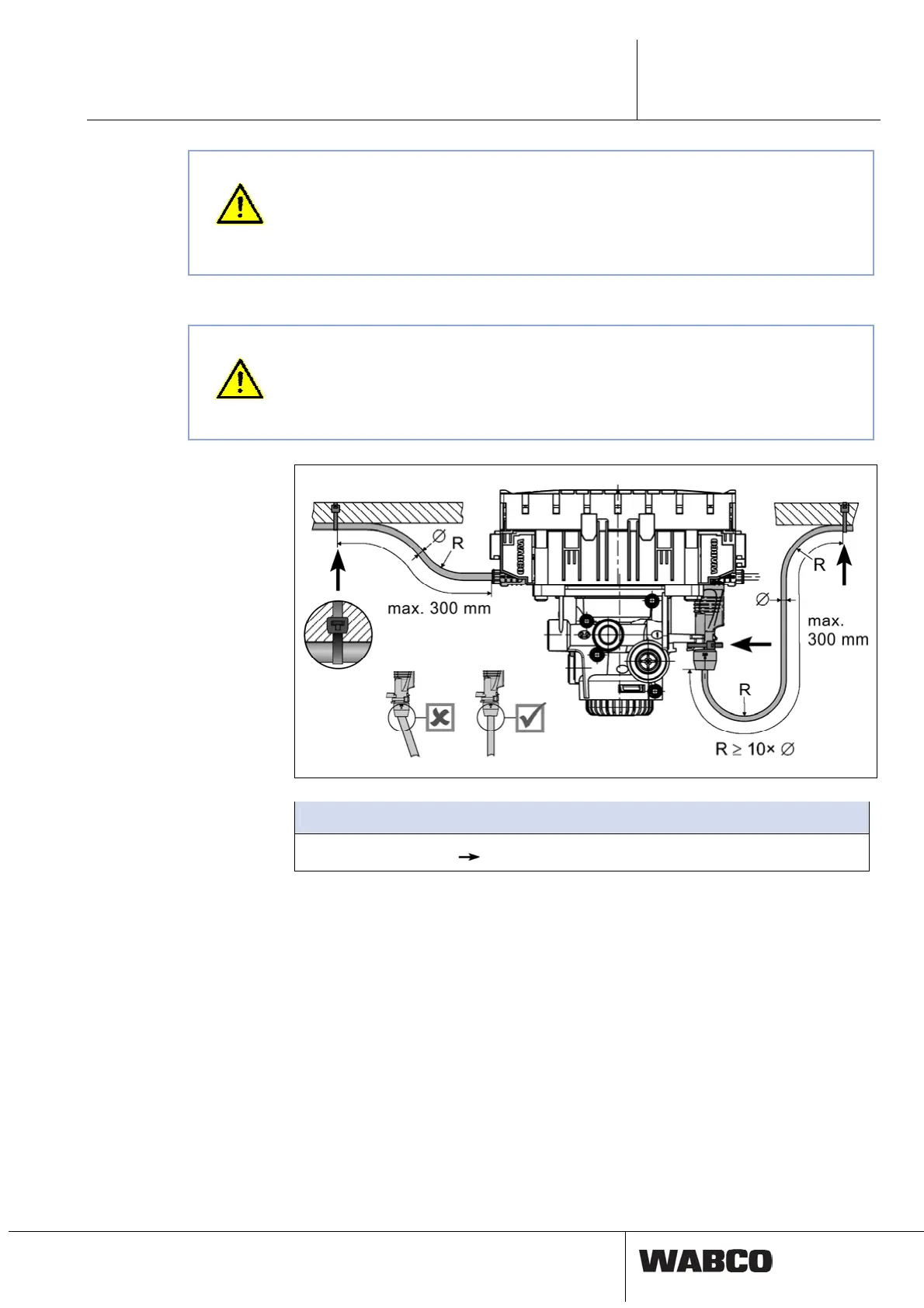

– If the cables are too long, do not wrap them up, route the cables in through
loops, see following diagram.
Legend
Cable tie
– Fix the cables (maximum 300 mm cable length distance to the ECU) using ca-
ble ties.
The 8-pin cables of the ports POWER, SUBSYSTEMS and MODULATOR must
be fixed on the TEBS E using the fixing points provided.
