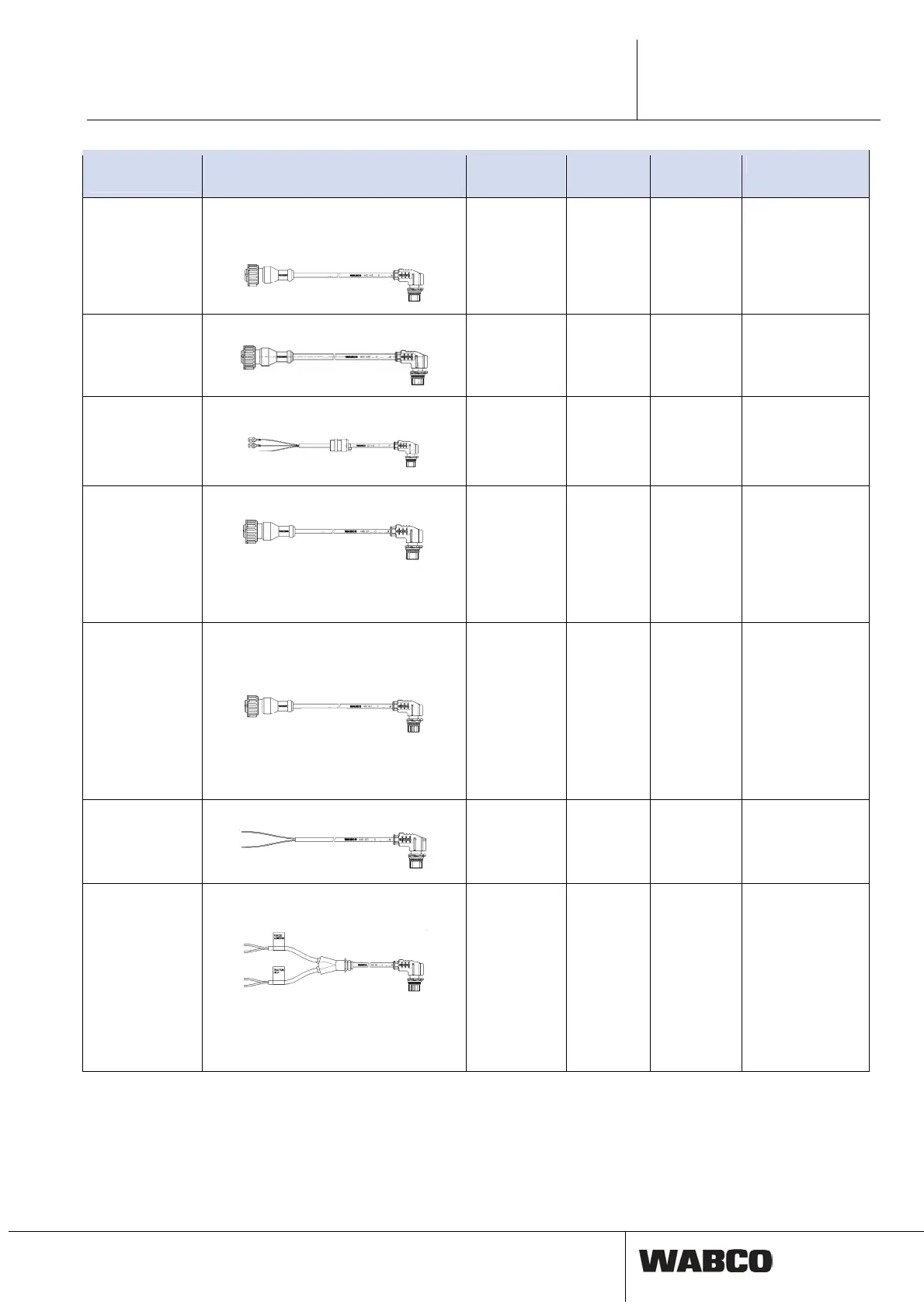

WABCO TEBS E4 - Page 205

TEBS E
12
Appendix
205
Slot on TEBS E
modulator
Application Part number Lengths Modulator Component
GIO
Cable for ECAS valves 472 905 114 0,
472 880 030 0, lifting axle valve
463 084 100 0 and eTASC
449 445 010 0
449 445 030 0
449 445 050 0
449 445 060 0
1 m
3 m
5 m
6 m
TEBS E
4-pin
Code B
4-pin
DIN bayonet
GIO
‘ECAS 2-point control’ cable 449 439 030 0 3 m 4-pin
Code B
4-pin
DIN bayonet
GIO
Cable for external ECAS to TEBS E 449 438 050 0
449 438 080 0
5 m
8 m
TEBS E
4-pin
Code B
3-wire open with
PG coupling
GIO
Cable for height sensor 441 050 100 0 449 811 010 0
449 811 030 0
449 811 050 0
449 811 080 0
449 811 120 0
1 m
3 m
5 m
8 m
12 m
TEBS E
4-pin
Code B
DIN bayonet
4-pin
GIO
Cable for pressure sensor
441 040 015 0
441 044 002 0
449 812 004 0
449 812 030 0
449 812 040 0
449 812 100 0
449 812 180 0
449 812 260 0
449 812 320 0
449 812 440 0
0,4 m
3 m
4 m
10 m
18 m
26 m
32 m
44 m
TEBS E
4-pin
Code B
4-pin
DIN bayonet
GIO
Cable for Traction Help (TH) 449 813 050 0
449 813 080 0
449 813 150 0
5 m
8 m
15 m
TEBS E
2-pin
Code B
Pin 2: brown =
ground
Pin 3: black =
+24V
GIO
Cable for traction help and forced lower-
ing (or unloading level switch)
449 815 253 0
449 815 258 0
6/6 m
15/6 m
TEBS E
4-pin
Code B
2x 2-pole open
Forced lowering:
blue: push-button
1
brown = ground
Traction Help:
blue = push-button
2
brown = ground
