Wacker Neuson AP1840 Series

7 Components and operator's controls
100_0202_cp_0013.fm 21
7 Components and operator's controls

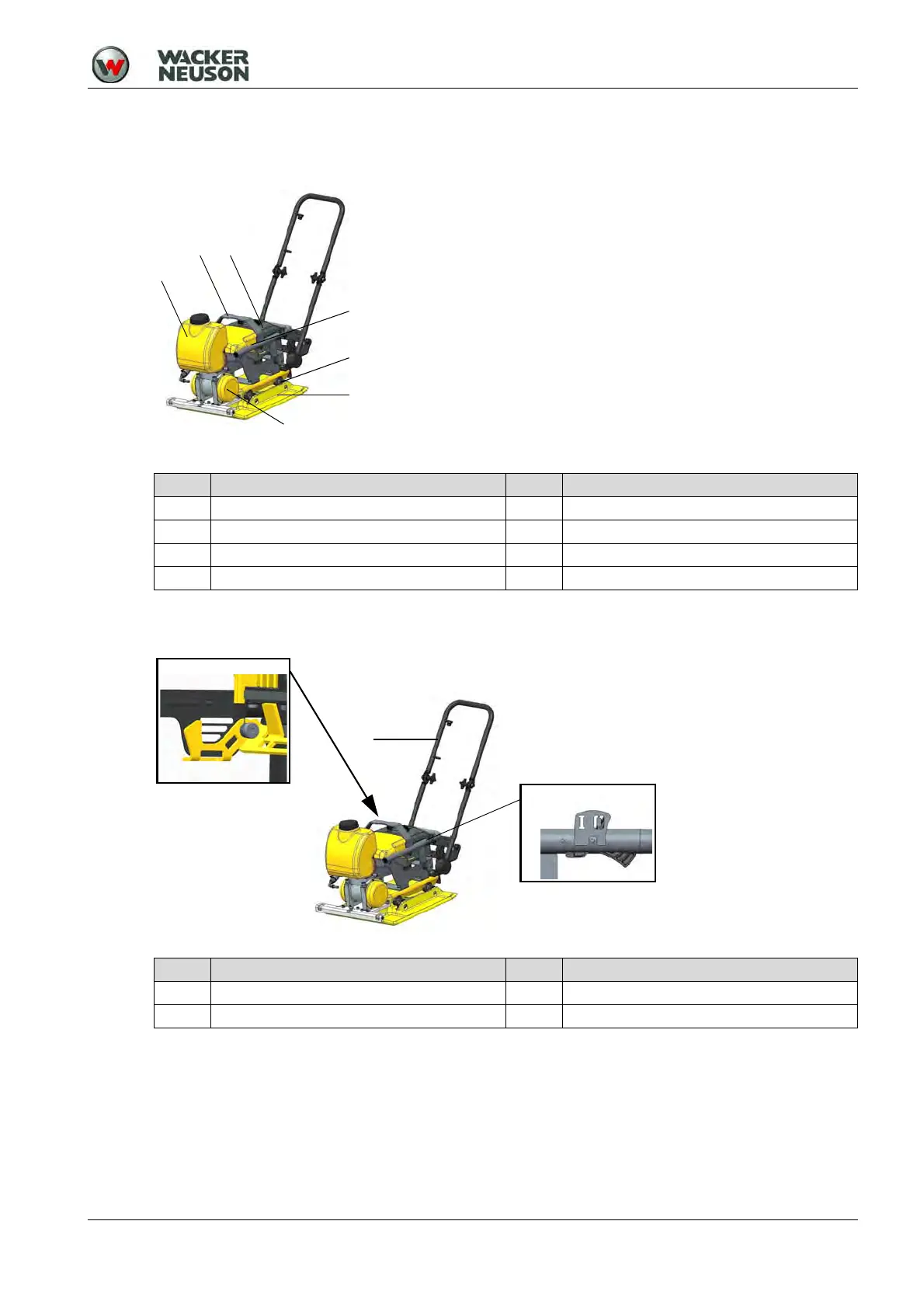

7.1 Components
7.2 Operator's controls
Item Designation Item Designation
1 Rechargeable battery (optional) 5 Exciter
2 Central lifting point 6 Base plate
3 Protective cage 7 Water tank (optional)
4 Rubber-metal buffer 8 Nameplate
Item Designation Item Designation
1 Lock 3 Control handle
2 Switching and safety lever
1
2
3
4
5
6
7
2
1
3
