Maintenance CRT 48
5.6 Steering Assist System

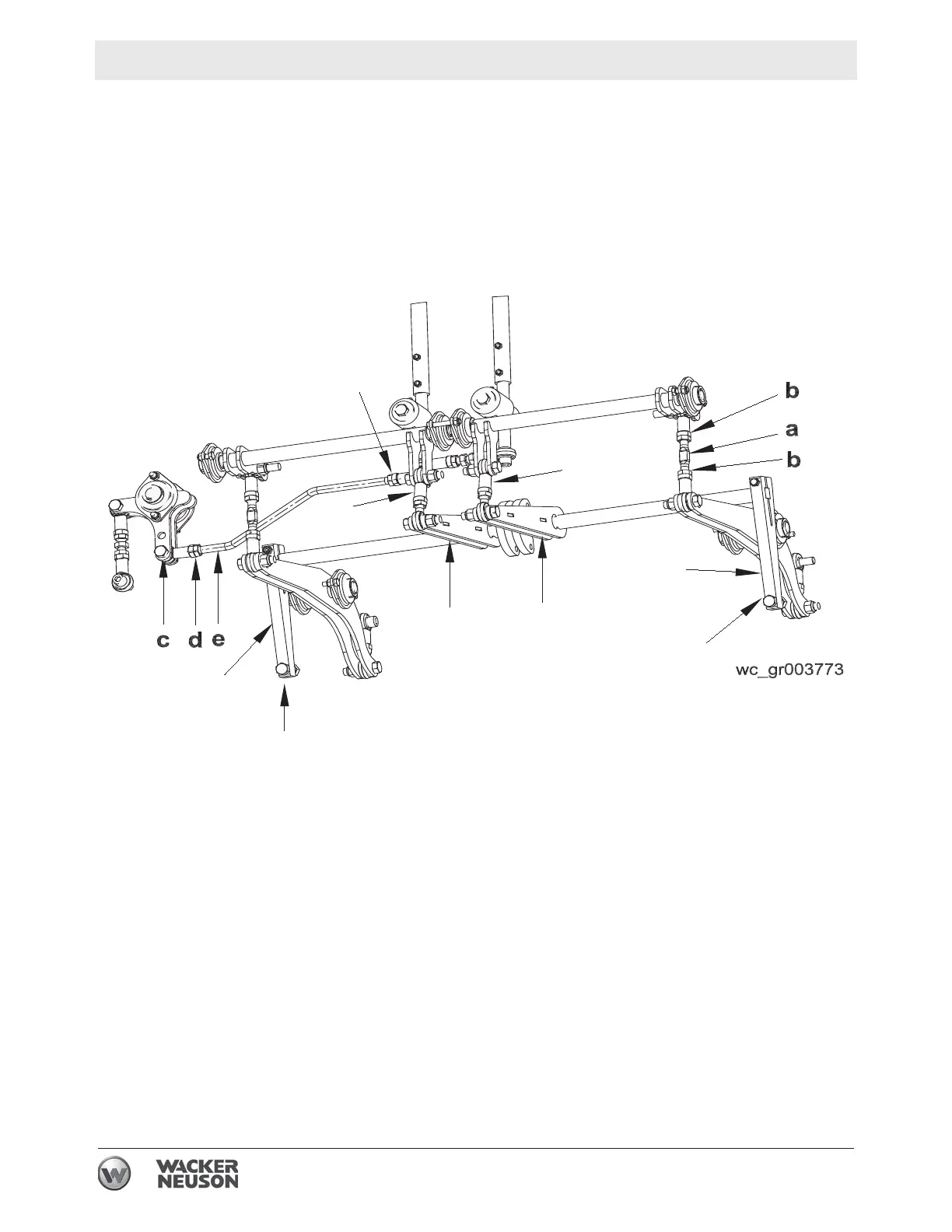

The steering assist system is comprised of the torsion lever (f), the torsion lever
assembly (g), and the assist link (h). The system preload must be removed before
any other steering components can be removed or separated. Remove the 1/2-20
x 3.5-inch bolts (i) to unload the system. To re-apply system preload, re-attach and
tighten bolts (i) to the factory setting.
5.7 Right-hand Control Arm Adjustment (Right or Left)
The arms should be set to be perfectly vertical. Should the arms come out of
adjustment, adjust as follows:
1. Loosen the jam nuts (d).
2. Drop the horizontal linkage (e) down to clear the bracket.
3. Shorten the linkage to move the control arms to the left.
4. Extend the linkage to move the control arms to the right.
5. After the control lever has been adjusted to the desired position, reassemble the
nut and the bolt (c) and tighten the jam nuts (d).
g
g
f
i
d
h
h
f
i
