Maintenance CRT 48
Mounting a
46” pan
To mount a 46” pan:
1. Loosen and remove the bolts (d) that attach each blade (e).
2. Move the blades inward to align with mounting holes (c).
3. Replace and tighten the bolts in mounting holes (c).
4. Attach the 46” pan to the blades.
5.10 Drive Belt
To replace the drive belt:
1. Place the trowel on a flat, level surface with the blades pitched flat.
2. Disconnect battery.
3. Remove the beltguard.
4. Remove the 3 bolts (a) holding the universal joint to the drive pulley.
5. Remove the old belt and install a new one.
6. Reverse the procedure for assembly. Align the bearings and shaft as straight as
possible. Adjust pulley offset and center distance to values as shown.
7. Torque the universal joint bolts (a) to 14 ±1,4 Nm (10±1 ft.lbs.).

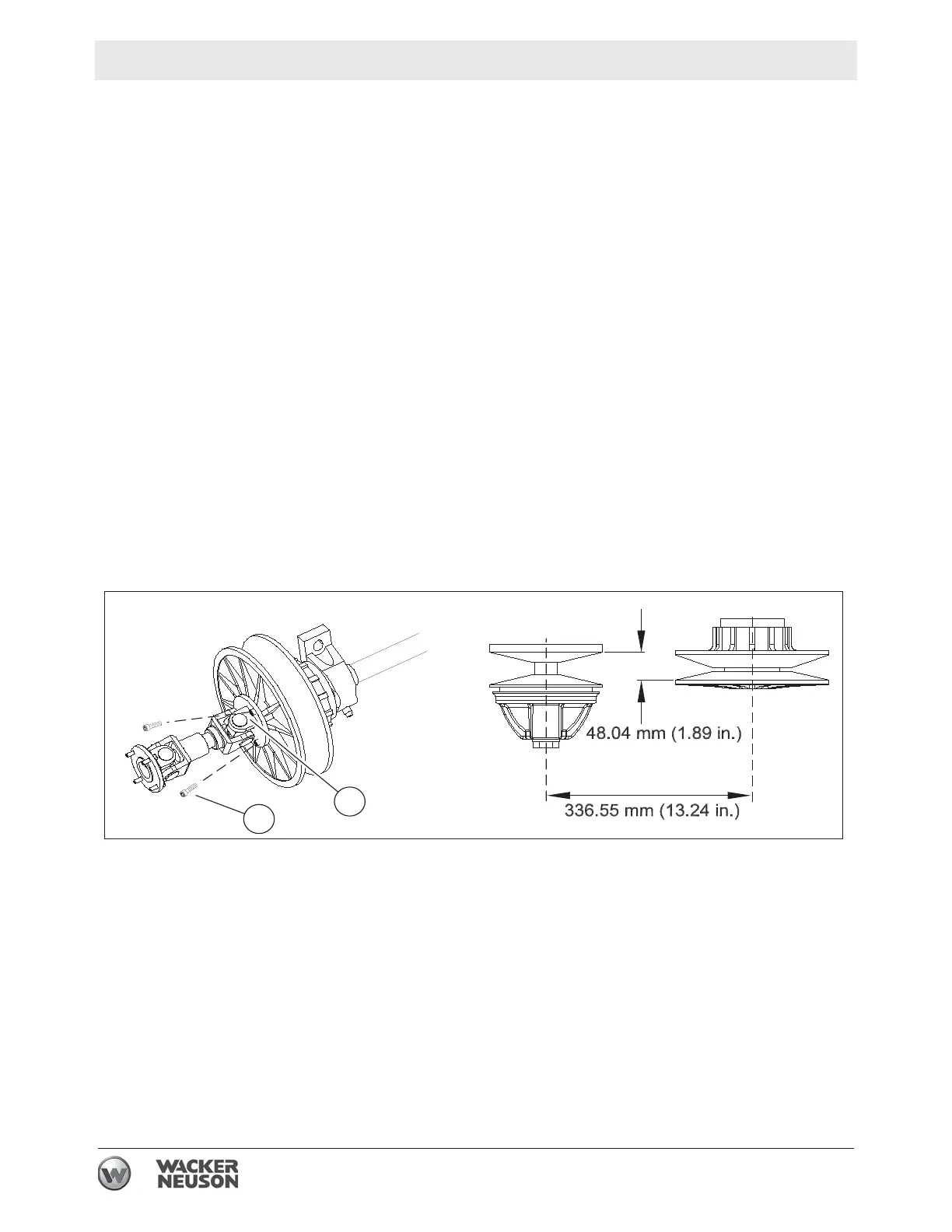

wc_gr003775
b
a
