5 Structure and function
5.1 Application
Use the machine only as intended, see chapter Safety, Proper use.
5.2 Description
5.2.1 Principle of the machine
The machine consists of an upper mass with a drive motor and two independent
base plates with one vibrator each.
The drive motor hydraulically drives the vibrators.
The vibrators cause vibrations, causing the base plates to vibrate, thus
compacting the soil.

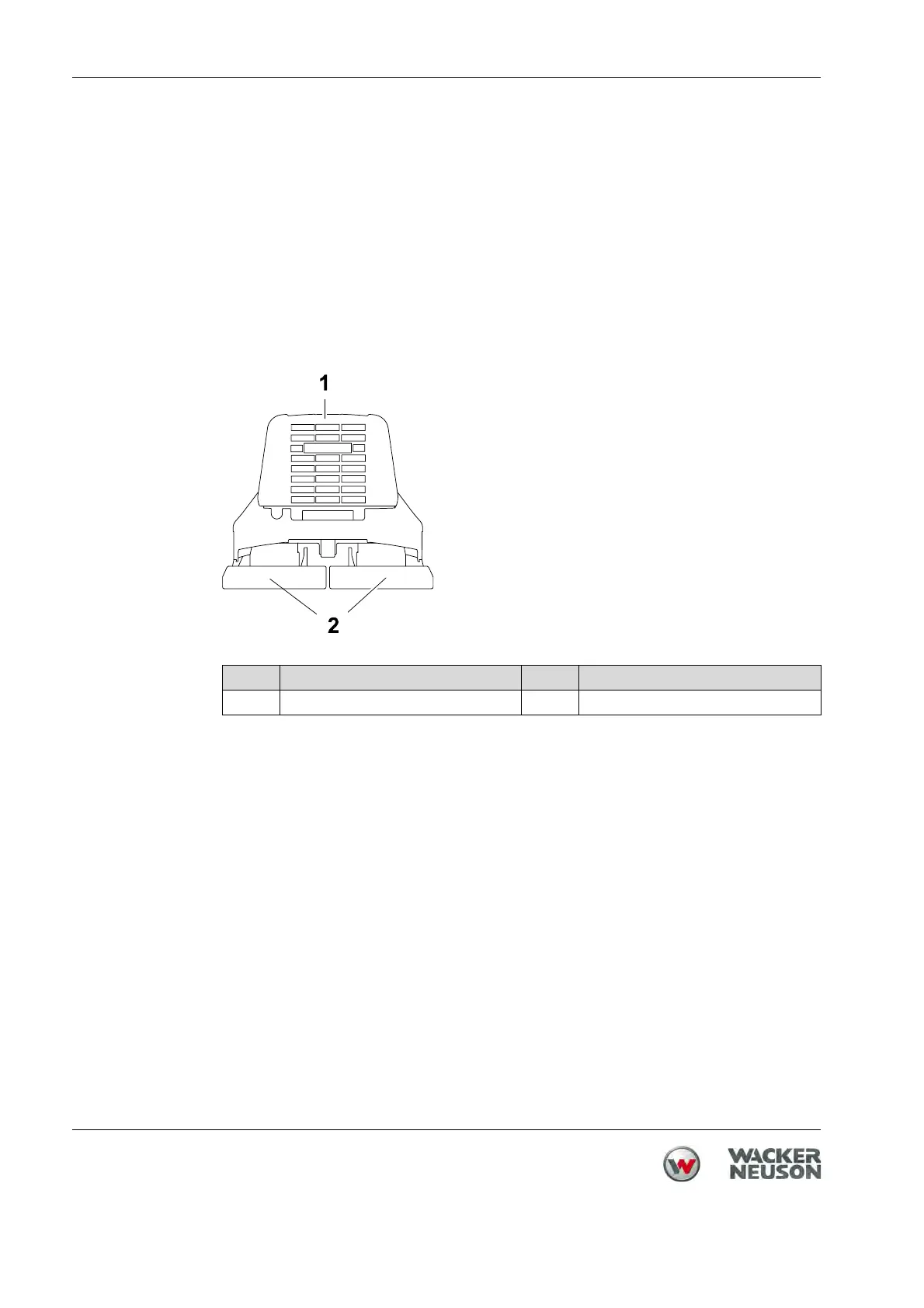

Item Designation Item Designation
1 Upper mass 2 Base plates (left, right)
