9.2.6 Checking coolant level and topping up coolant
Performing preparations
1. Place the machine upright on a flat surface.
2. Open both protective hoods.
3. Deactivate the machine.
4. Let machine cool off.
Checking coolant level on coolant reservoir
1. Remove any dirt around the coolant reservoir.
2. Check whether the coolant level is in the middle between the lower and upper
mark on the coolant reservoir.
Topping up coolant in coolant reservoir
1. Unscrew and remove coolant reservoir cap.
2. If necessary, add coolant until the coolant level is in the middle between the
upper and lower mark.
See chapter Technical data for the coolant specification.
3. Replace and tighten coolant reservoir cap.

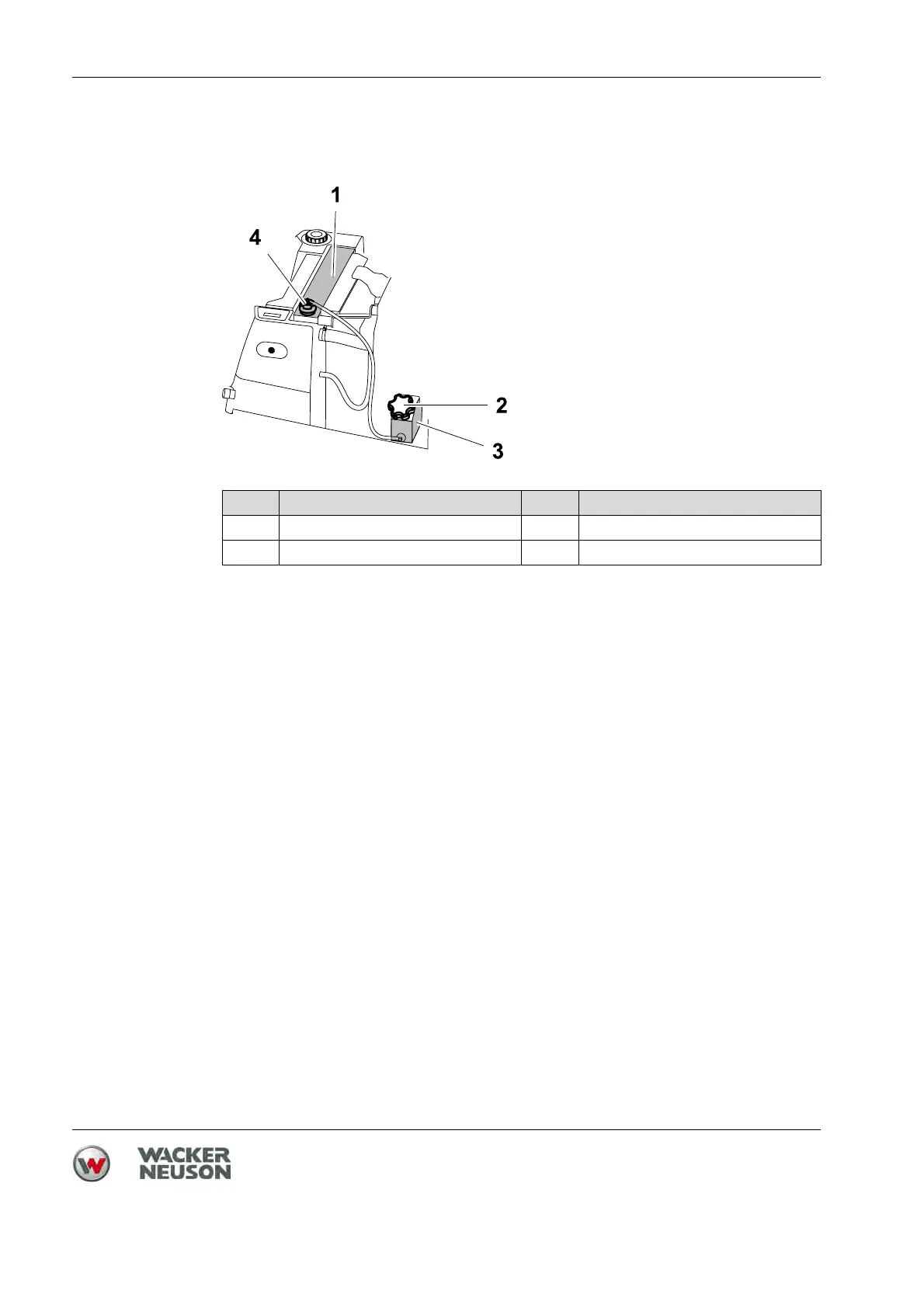

Item Designation Item Designation
1 Radiator 3 Coolant reservoir
2 Coolant reservoir cap 4 Radiator cap
