9.2.7 Checking exciter oil level and topping up exciter oil
Performing preparations
1. Place the machine upright on a flat surface.
2. Open rear protective hood.
3. Deactivate the machine.
4. Let machine cool off.
5. Lay out impermeable sheet over the workspace to protect the ground from
the oil.

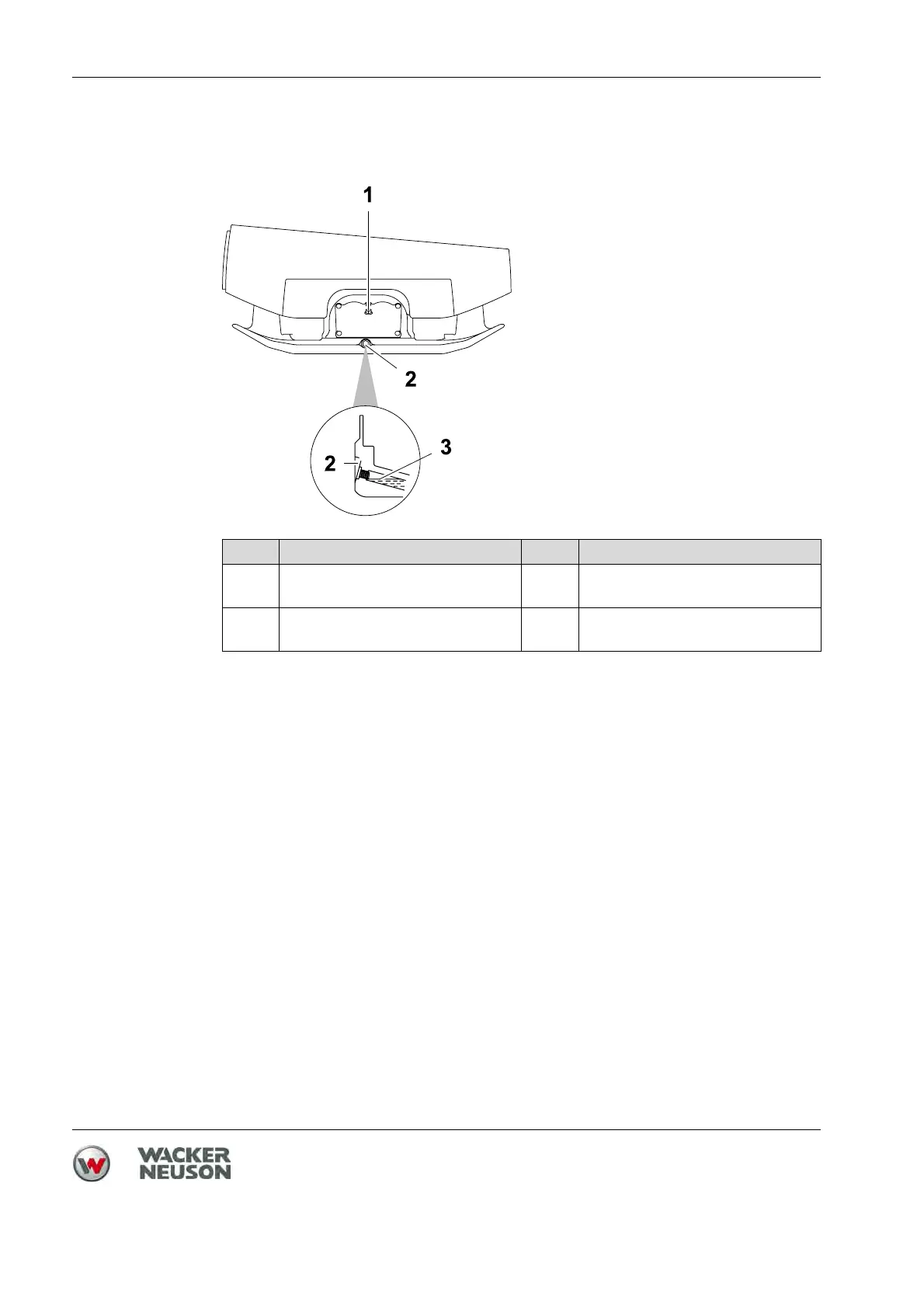

Item Designation Item Designation
1 Filling neck screw plug with seal-
ing ring
3 Exciter oil level
2 Oil drain opening screw plug with
sealing ring
To Next Page
