6 Components and operator's controls DPU 130Le
39
Operator's manual
6 Components and operator's controls
6.1 Components and operator's controls outside the machine
Receiver units
On the front and back of the machine, there are a total of two receiver units with
built-in status display. Depending on the user's position, either the front or rear
receiver unit will receive the commands sent with the remote control via infrared
signal.
The built-in status display indicates the current operating condition of the
machine via light and flashing signals.
In order to better distinguish the front from the back of the machine, the receiver
units have different colors.
Protective hoods
Both protective hoods protect the components and operator's controls of the
machine from damage, and protect the user from noise.

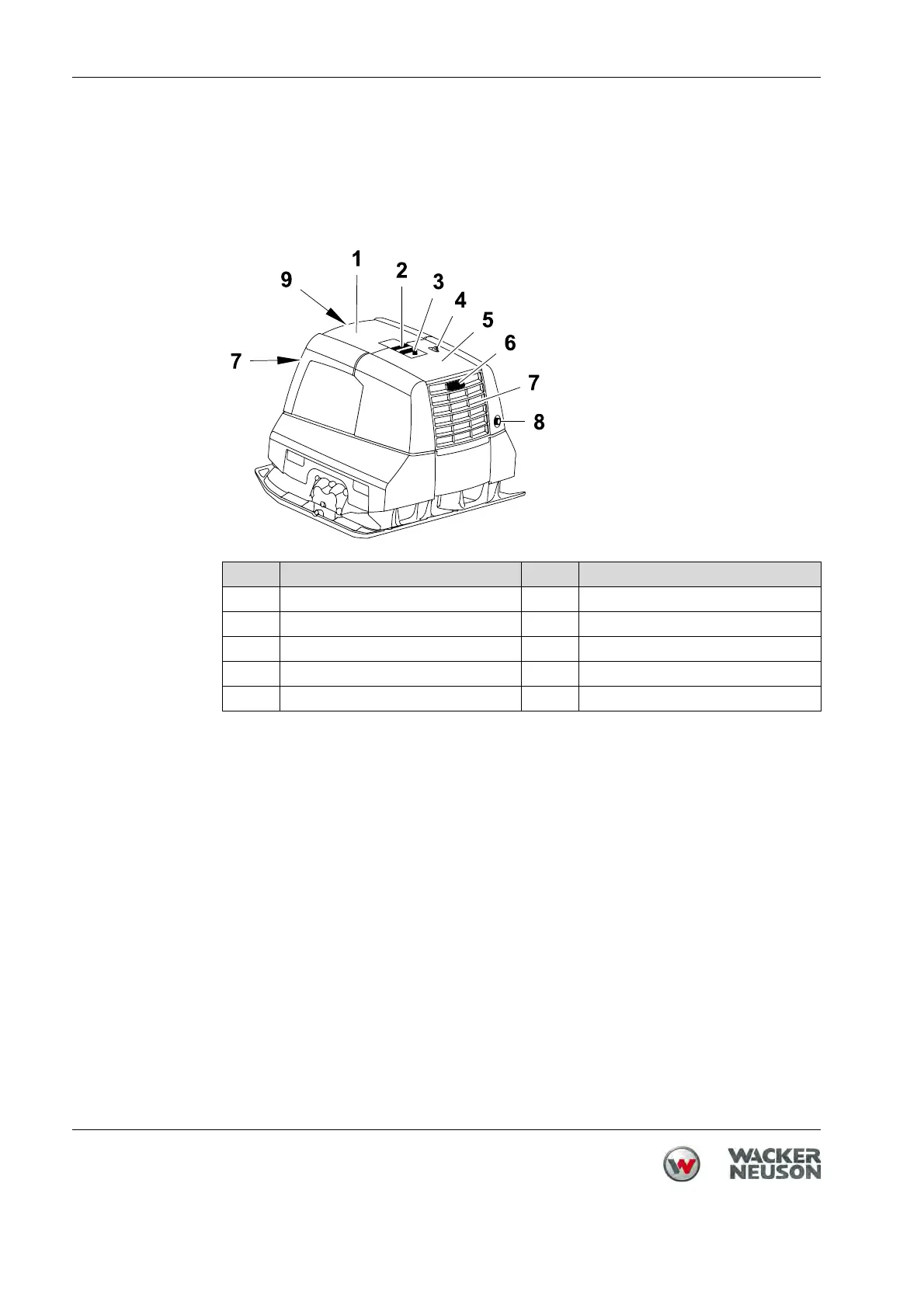

Item Designation Item Designation
1 Front protective hood 5 Rear protective hood
2 Central suspension 6 Receiver unit rear (red)
3 Hood opener 7 Ventilation slot (front, back)
4 Padlock eyelet 8 Emergency stop switch
9 Receiver unit front (transparent)
