5-44 BA E14 track en* 1.3 * E14t_13_510.fm
5 Operation

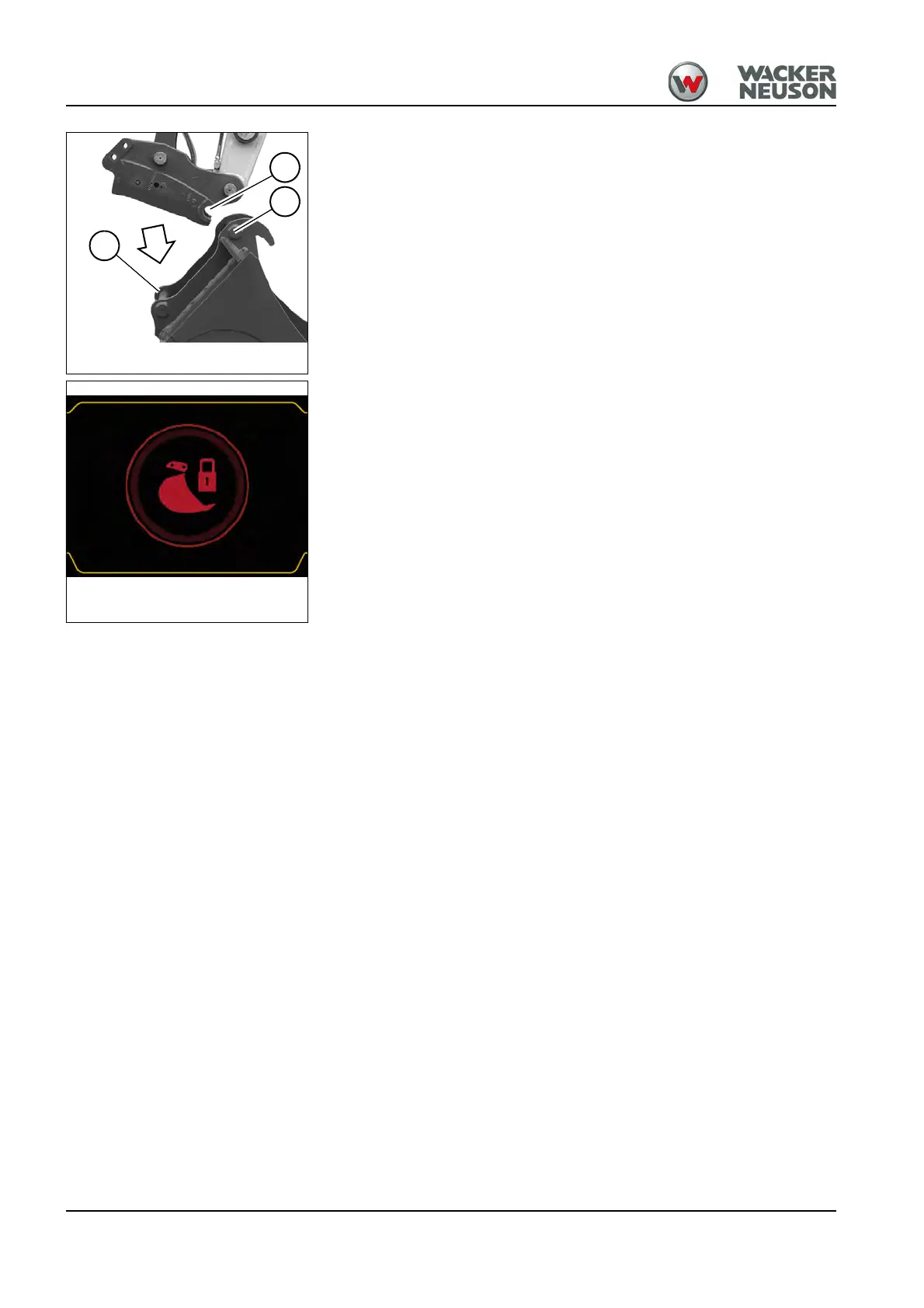

4. Hook up the quick coupler system E in bolt F of the attachment receptacle.
5. Extend the bucket cylinder so that pin G of the attachment touches the
quickhitch.
6. Check whether the attachment touches the quick coupler system with
bolt G.
7. Move the attachment inward completely.
8. Press switch B upward.
➥ The quickhitch closes.
➥ The symbol Hydraulic quickhitch disabled appears for a few
seconds and the buzzer does not sound any more.
