5.9 Operating hydraulics

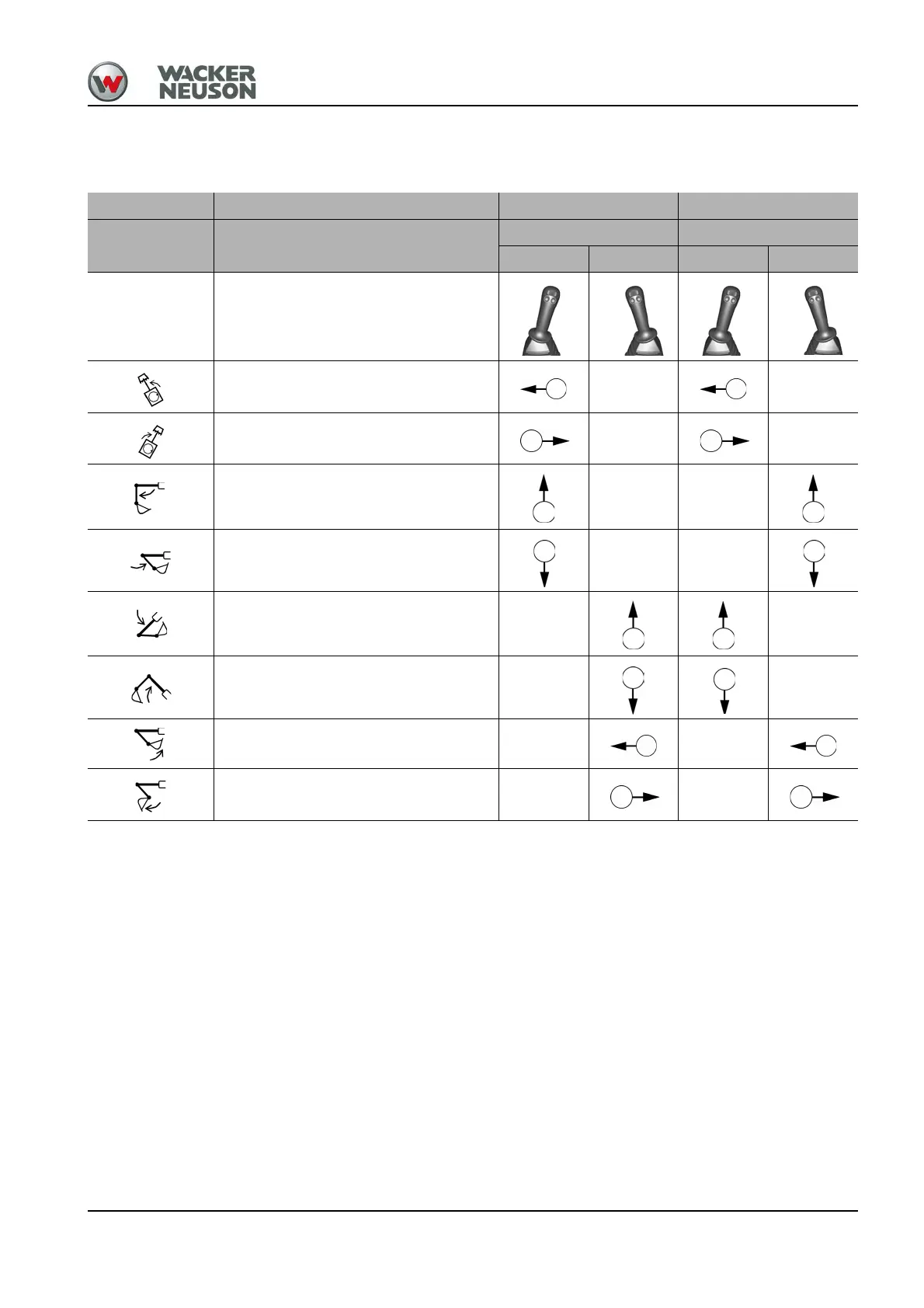

Basic control lever functions (ISO and SAE controls)
Control mode ISO controls SAE controls
Required function
Control levers
1
1. The control levers shown are symbolic representations.
Control lever
1
Left Right Left Right
Rotating the upper carriage to the left -- --
Rotating the upper carriage to the right -- --
Extend stick -- --
Retract the stick -- --
Lower the boom -- --
Raise the boom -- --
Tilt in the bucket -- --
Tilt out the bucket -- --
