5 Operation
Danger zone during lifting-gear applications
In lifting gear applications the load must be stabilized by slingers (B) with
the help of ropes (C).
Slingers must remain out of the danger zone – see chapter “ Lifting gear
applications” on page 5-33.
A

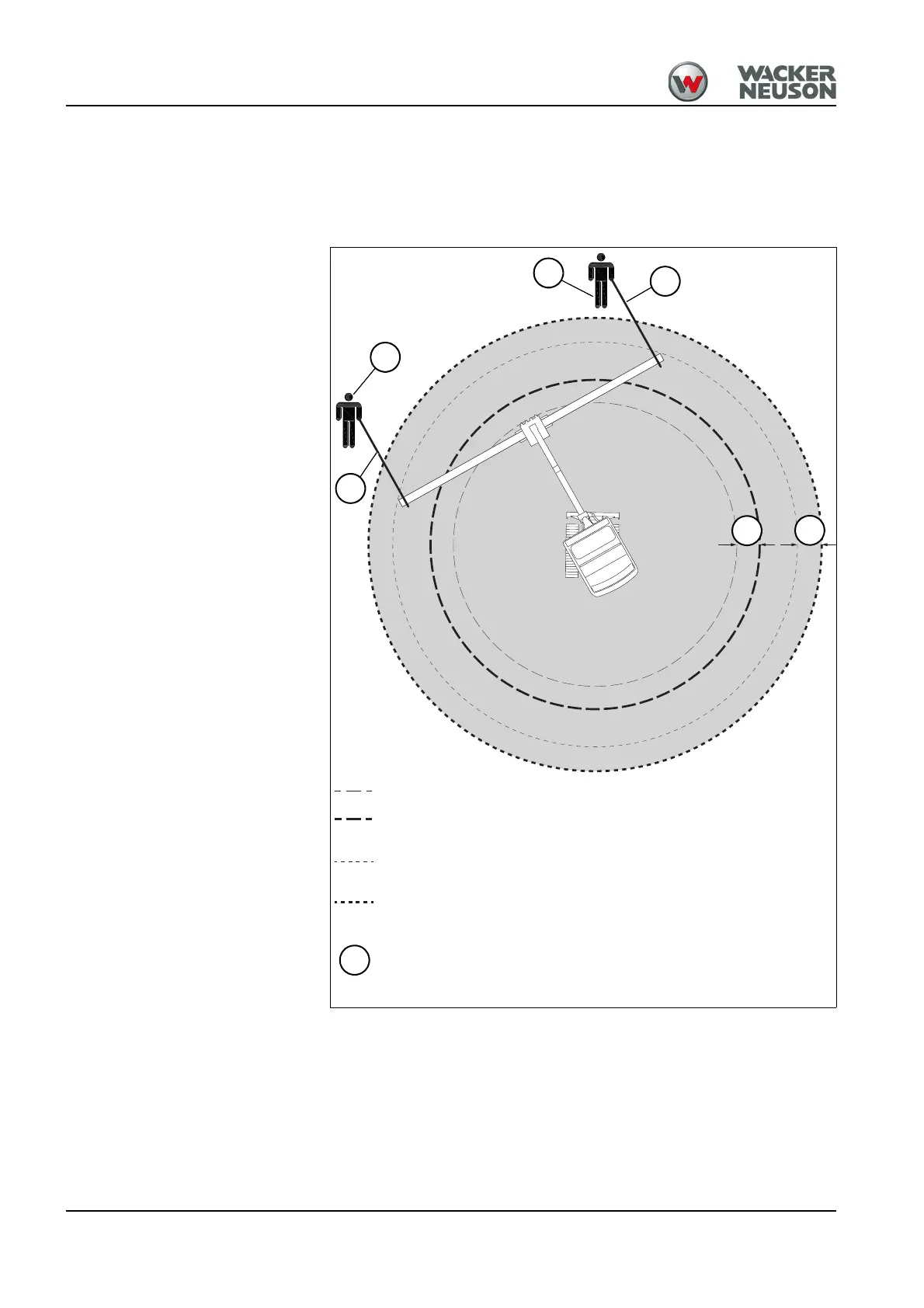

Fig. 236 (symbolic representation)
Danger zone with a bucket
Danger zone with a bucket and a safety distance of 1.5 m (59 in)
Danger zone with a grab (for example for picking up a pipe)
Danger zone with a grab and a safety distance of 1.5 m (59 in)
Safety distance of 1.5 m (59 in)
Safety distance of 1.5 m (59 in)
A
A
B
C
C
B
