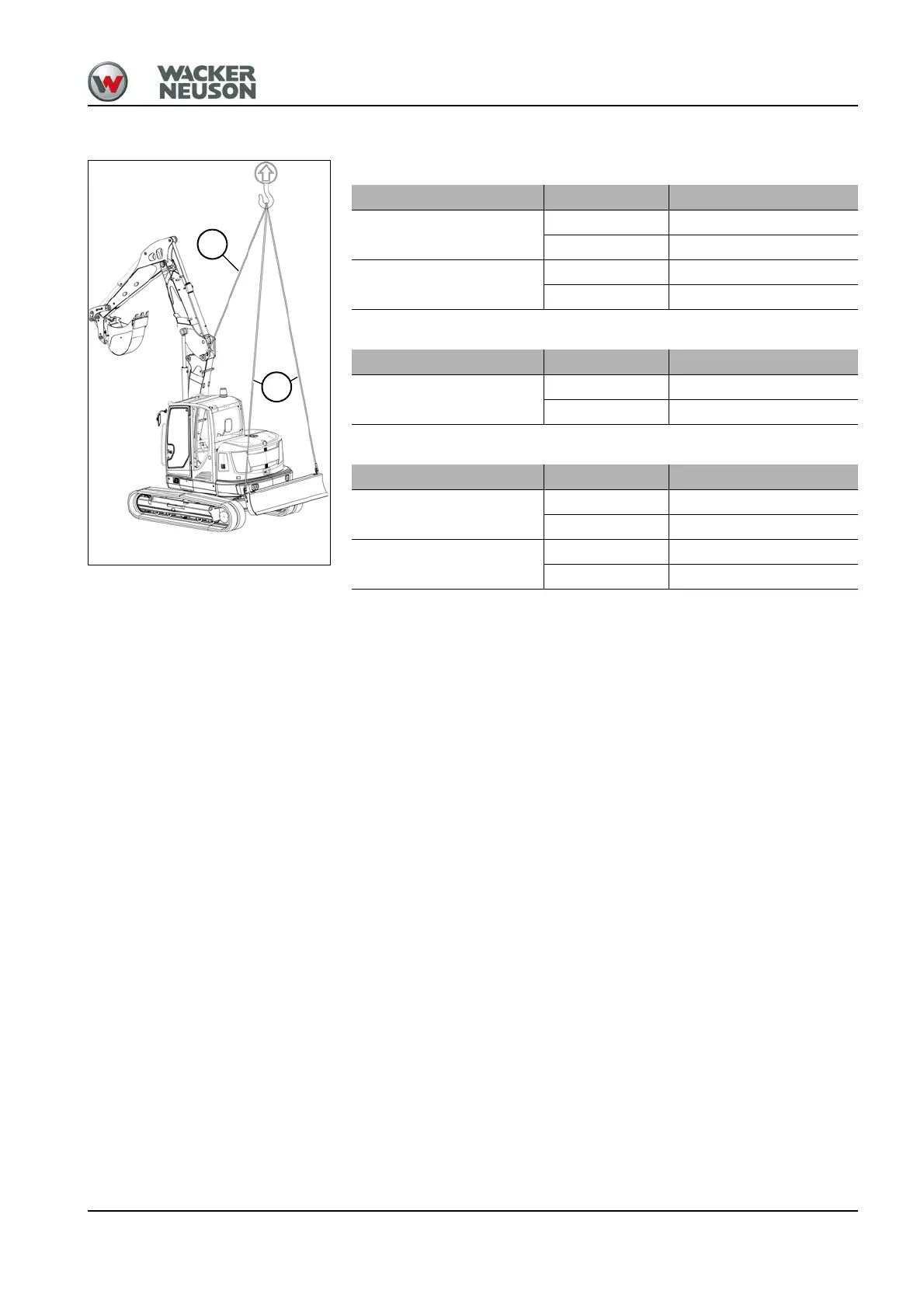

Ensure that the lifting gear has the required lengths L1 and L2
ET65
EZ80
ET90
Fig. 266
L1
L2
Boom Length Dimensions
One-piece boom
L1 3700 mm (12'-2'')
L2 5200 mm (17'-1'')
Triple articulation boom
L1 3500 mm (11'-6'')
L2 5200 mm (17'-1'')
Boom Length Dimensions
One-piece boom
L1 3225 mm (10'-7'')
L2 5330 mm (17'-6'')
Boom Length Dimensions
One-piece boom
L1 3500 mm (11'-6'')
L2 6000 mm (19'-8'')
Triple articulation boom
L1 3900 mm (12'-10'')
L2 6000 mm (19'-8'')
