BA E14 track en* 1.3 * E14t_13_900.fm 9-31

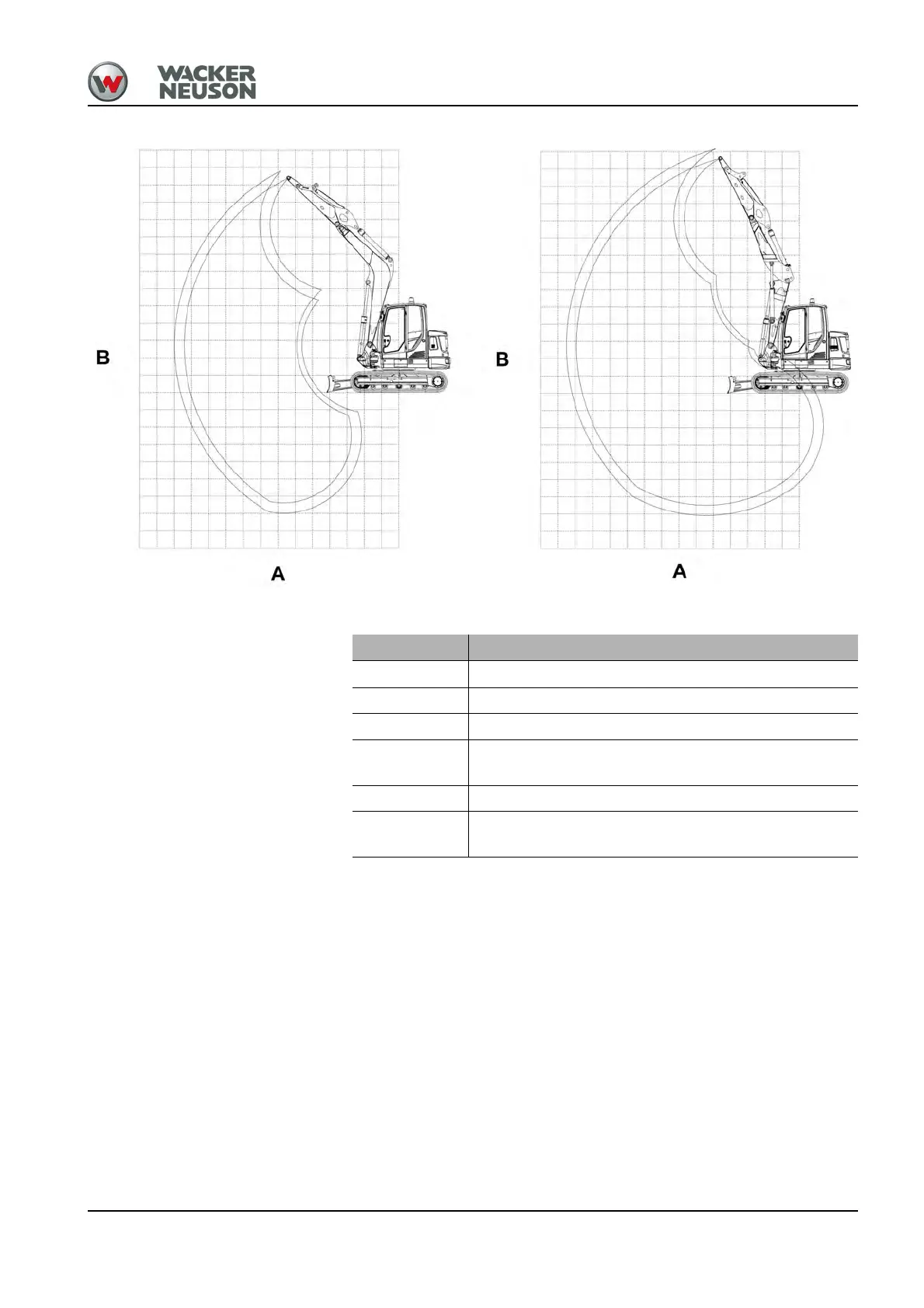

Technical data 9
One-piece boom
Triple articulation boom
Designation Explanation
A Reach from live ring center
B Load hook height
max Authorized lift capacity with horizontal boom
I
Machine in travel direction with stabilizer blade, tipping
with the help of stabilizer blade
II Machine 90° to travel direction without stabilizer blade
III
Machine in travel direction without stabilizer blade, tip-
ping with the help of front axle
