SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
5.6 OPERATING ELEMENTS OF EPGSPRINT X/EPGSPRINT XE

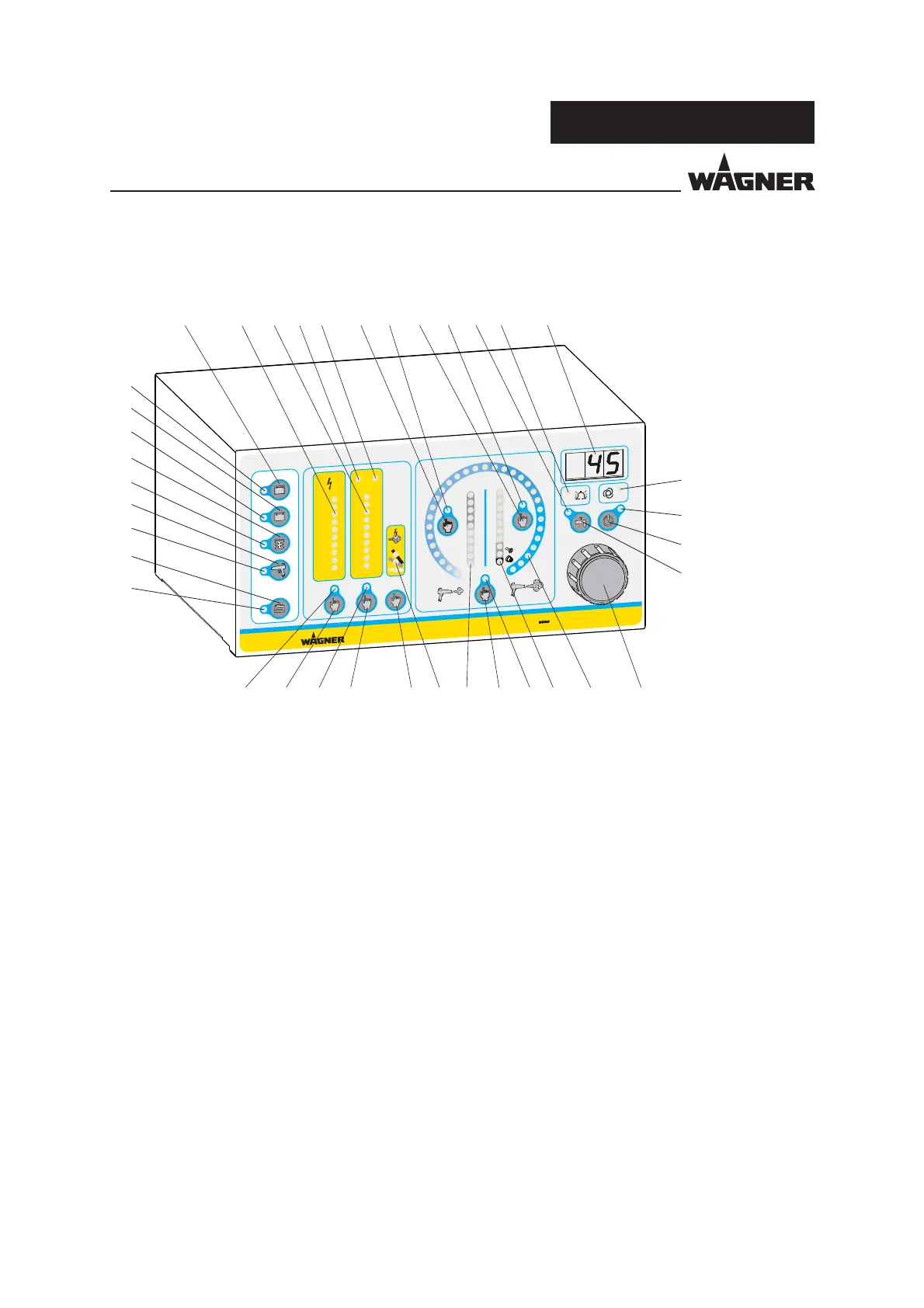

5.6.1 OVERVIEW OF CONTROL PANEL FRONT SIDE
1 Illuminated display "High voltage"
– Lights up green
– Display range: 0-100 kV
Resolution 10 kV
– Single LED display: Nominal voltage
– Bar display: Working voltage
2 Illuminated display: "Corona or Tribo Current"
– Lights up green
Tribo scale:
– When a Tribo gun is connected and selected
– Bar display: When powder feed is activated
– Display range: 0-5 μA
Resolution 0.5 μA
Corona scale:
– When a Corona gun is connected and selected
– Display and adjusting range: 0 [5]-120 μA,
0 [5]-20 μA resolution 5 μA
20-40 μA resolution 10 μA
40-120 μA resolution 20 μA
– Single LED display: "Trigger Point of Current Limitation"
– Bar display: Corona current
