EPG-SPRINT / EPG-SPRINT X
Type / Typ:
Serial No.:
Serie Nr.:
Voltage:
Spannung:
Line Power:
Eingangsleistung:
Prot. Class:
Schutzart:
EPG-SPRINT X
90-250 VAC 47-63 Hz
max. 40 W
IP64
CH 9450 Altstätten
Wagner International AG
Made in Switzerland
PTB 12 ATEX 5001
II 3(2)D
Tested / Geprüft : EN50050-2, EN50177
0102
F1 Fuse F2
Sicherung
1 AT
250VAC
1 AT
250VAC
(slow blow)
Hauptschalter
Main switch
Spraygun
Sprühpistole
Remote
Fernsteuerung
Ausgang zur Pistole
Output to gun
I max. 0,9 A
U max. 22 Vpp
Dosage air
Dosierluft
Feeding air
Förderluft
Atomizing air
Zerstäuberluft
Mains
power
input
Netz-
eingang
Mains
power
output
Netz-
ausgang
6.....8 bar
87..116 psi
Clean and
dry air
Saubere und
trockene Luft
6.5.2 (ISO 8573.1)
Do NOT disconnect when energized!
NICHT unter Spannung trennen!
I
O
Air input
Lufteingang
For operation all ports must be fitted
with a plug or the protection cap.
Für den Betrieb in der Zone 22
müssen alle Anschlüsse mit Stecker
oder Schutzkappe versehen sein.
Overvoltage Category II
and pollution Degree 2
EPG-Sprint X
FM approved for CL II, Div 2, Grps E, F, &G
Ambient temp range 5C to 45C T5
In accordance with control document: 2309729
Acceptable equipment combination
see operator manual
Zulässige Gerätekombination
siehe Betriebsanleitung
Year of manufacture:
Baujahr :
2 1 10
13 4 3 5 9 8 7 13
611 12
P_01744
14
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350

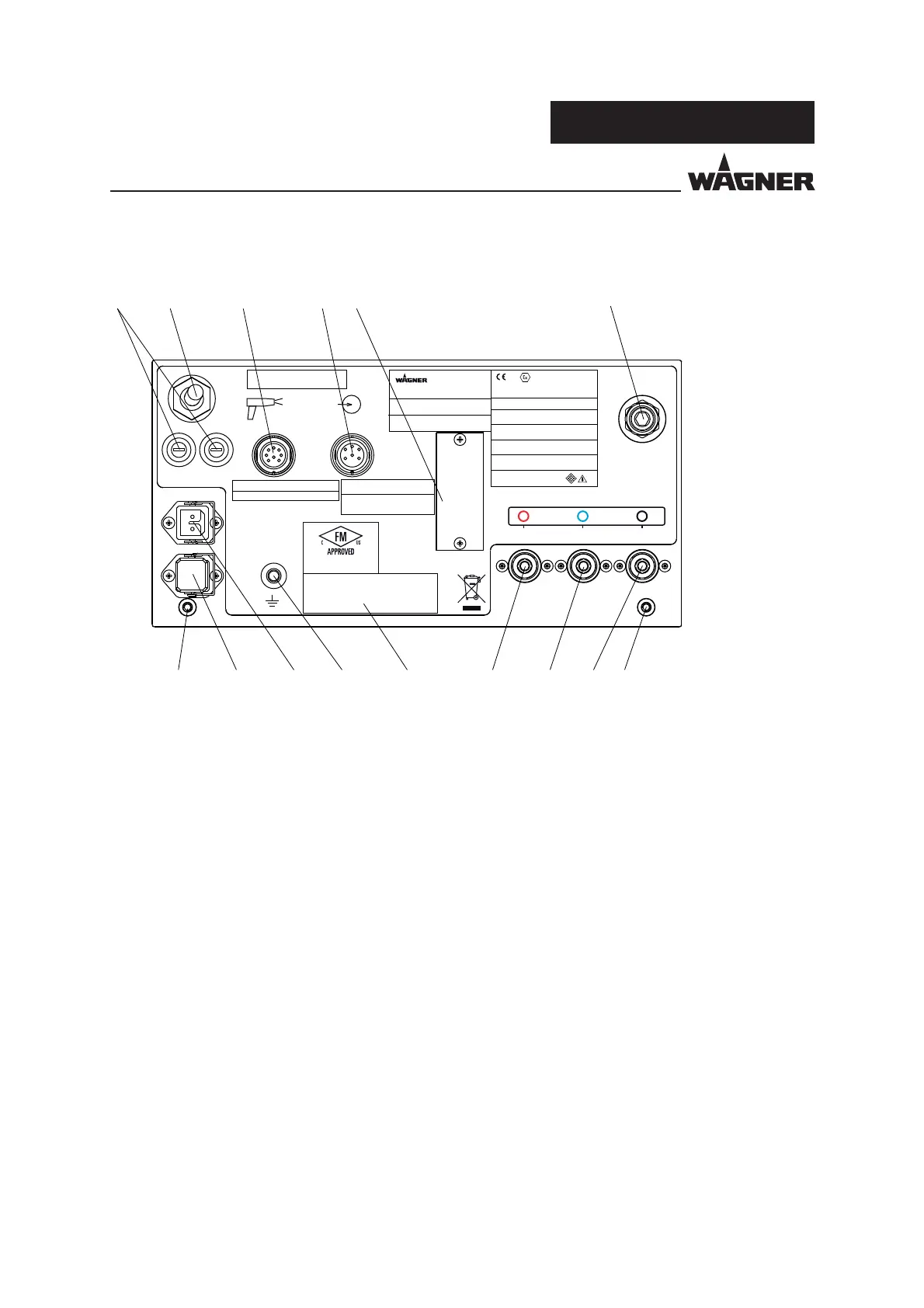

5.6.2 CONNECTIONS ON THE REAR SIDE OF THE EPGSPRINT X
1 Mains supply switch
0 = The control unit is deactivated
1 = The control unit is activated
2 Primary fuse (2 pieces)
– 1 Ampere slow-acting
3 Mains input terminal
– Universal input: 90 to-250 VAC
4 Mains output terminal
– Direct, not through the mains switch
– To loop the mains through the PrimaTech system
5 Knurled nut
– To connect the signal ground
6 Compressed air Inlet
– Pressure range: 0.6-0.8 MPa; 6-8 bar; 87-116 psi
– Air volume: max. 15 m/³
– Connection hose diameter 8 mm; 0.315 inches
