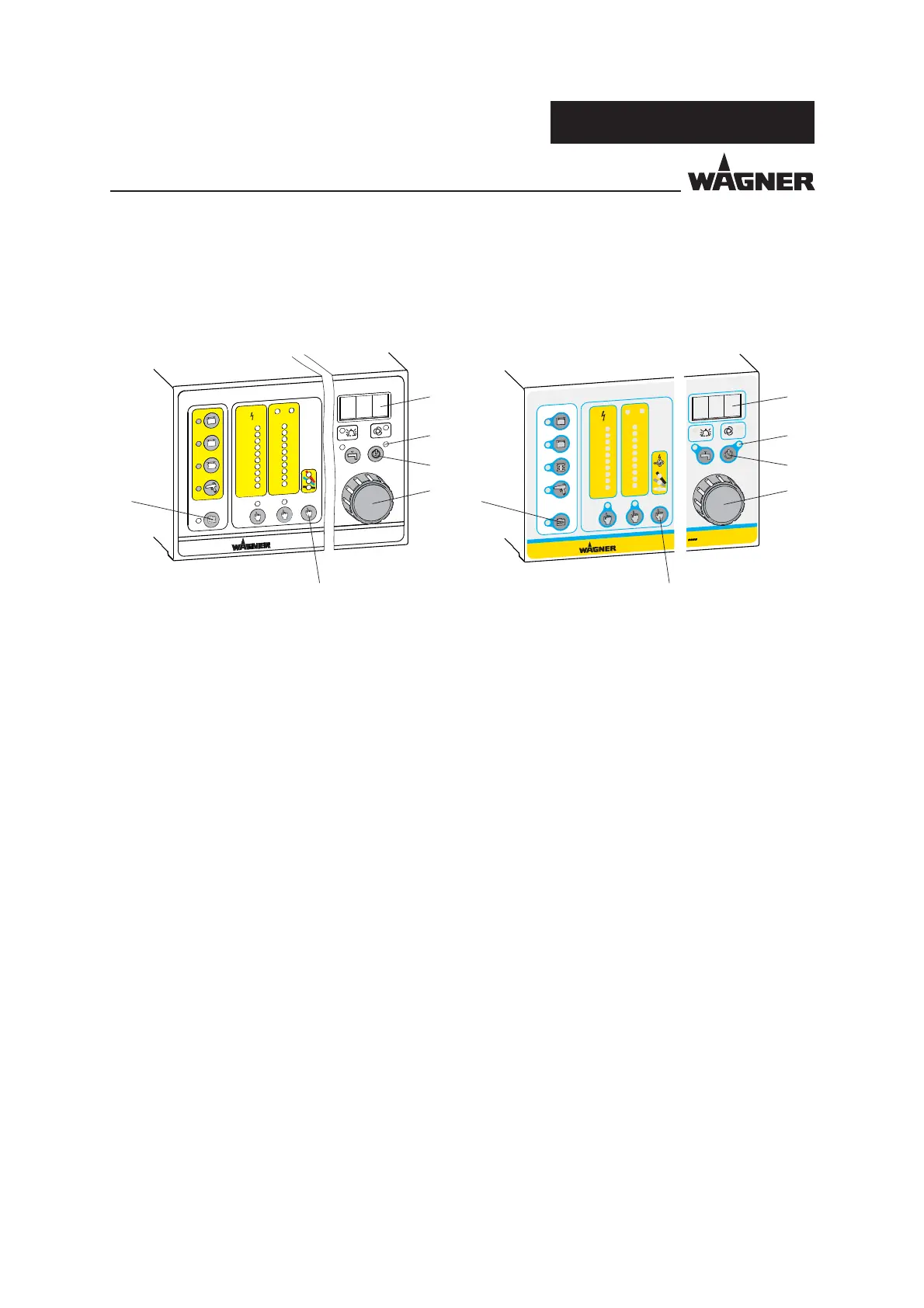

EPG-SPRINT / EPG-SPRINT X
Tribo Corona
5
4
3
2
1
120
100
80
60
40
30
20
15
10
5
μA
μA
2x
kV
90
80
70
60
50
40
30
20
10
100
P_01271
24
19
16
15
31
25
EPG
SPRINT X
0
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
2.0
μA
P_01830
24
19
16
15
31
25
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
Procedure:
1. Access parameter C33 (refer to Chapter 8.3 for procedure).
2. Press the "Characteristic Slope" button 31. "no" is displayed on LED display 19.
3. Turn Universal rotary controller 24 one step clockwise. "LEd" is displayed in LED display 19.
4. Press "Additional Recipes" button 25 for 1 second. The LED test starts, all scales are
tested and all LEDs light up at the end.
5. Pressing the "Standby" button 15 stops the LED test, the unit is then in standby mode.
Gradual sequence control is accessed with the other examples.
8.4 ACCESSING AND ADJUSTING PARAMETER VALUE
Example: Accessing test LED "C33"
