63
EPG-SPRINT / EPG-SPRINT X
P_01275
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
Step Display Description Possible values
1 e.g., 262 High-gain o set 200-700
2 e.g., 23 Low-gain o set 2-100
3 0.00 Use rotary controller 24 to set value and compare
with measuring device. The air volume is controlled
as normal.
0.00 to 6.00
4 e.g., -13 High-gain correction factor [default is 0] ±99
5 e.g., -3 Low-gain correction factor [default is 0] ±99
Steps 1, 2, 4 and 5 display numerical values of little interest.
Step 3 permits a set-point speci cation for the air volume controller selected of between
0.00 and 6.00 m³/h.
The volume of air ejected can be compared with a suitable measuring device.
The total range of 0.00 - 6.00 m³/h should be checked.
Possible causes of error:
– Proportional valves jammed due to oil and water display large jumps or remain in one
particular setting.
– The valve does not close all the way and air ows without control.
– An air leak in the unit may result in huge deviations.

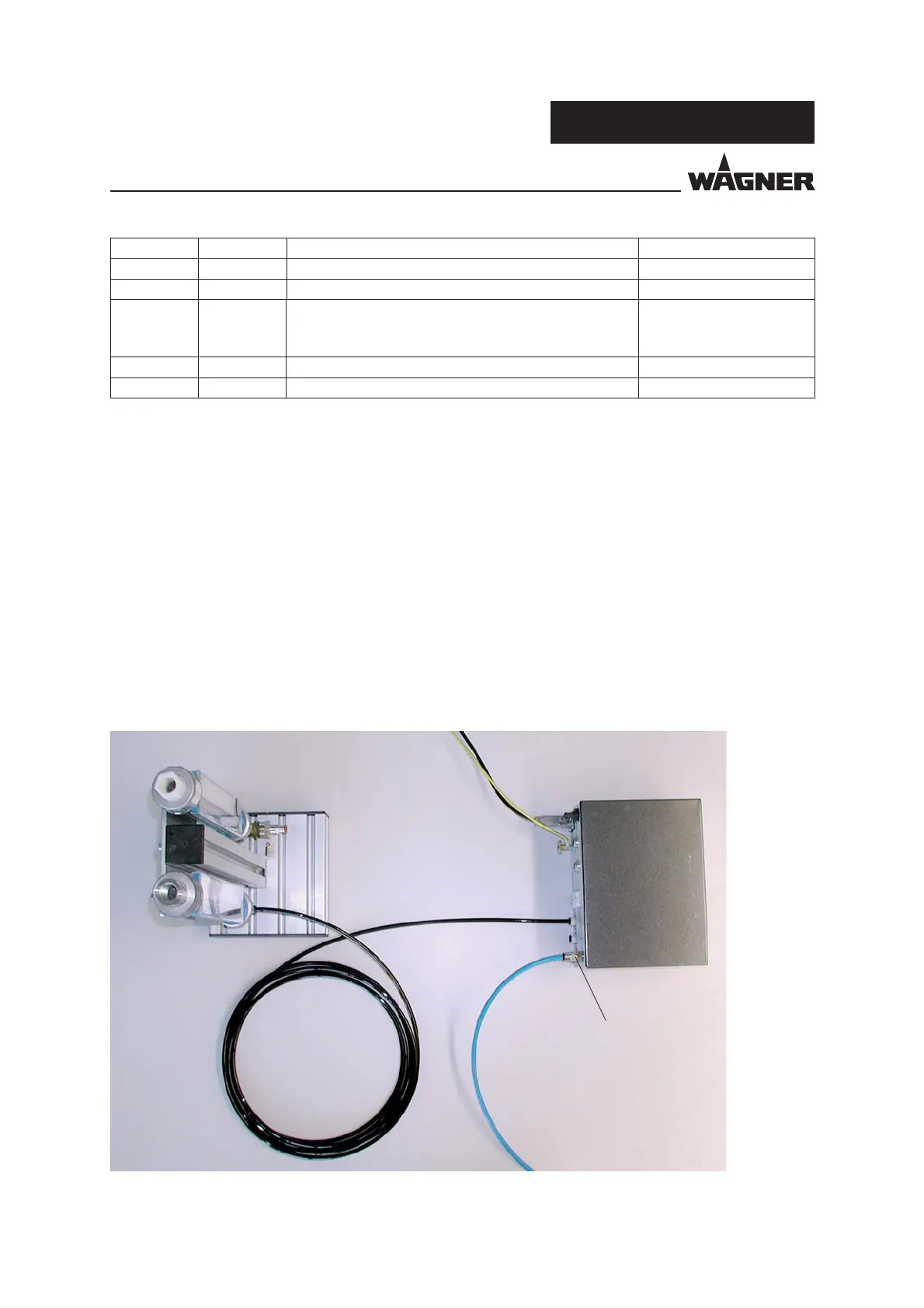

Float measurement in 2 areas
5 m hose for the
measurement
Air pressure 0.6 - 0.8 MPa; 6 - 8 bar;
87 - 116 psi
Clean and dry
