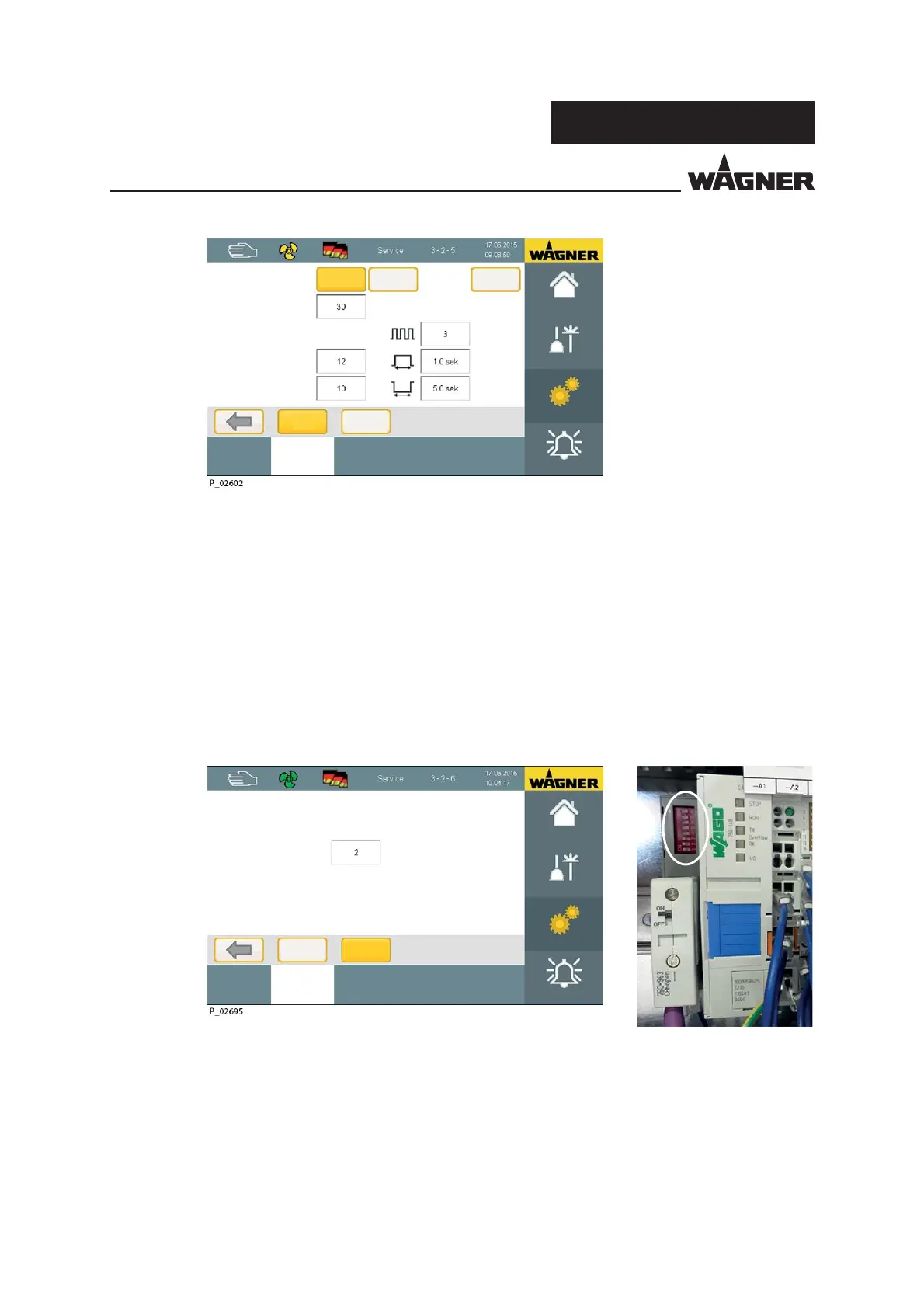

US sieve Hardware
DiagnosisSettings System
No StandardYesUS Sieve
After-run time [sec]
Wait time [min]
Dirt discharge:
After-run time before [sec]
Parameter: Explanation:
US Sieve Yes: Ultrasonic screening device available
No: No ultrasonic screening device available
After-run time [sec] Sieve continues to run during each switch-o power
signal so that no residual powder remains on the fabric
(damage while blowing out!)
Dirt discharge Number of suction cycles with pulse and break time
After-run time before [sec] Before activating the dirt discharge, the screen
continues running in order to sieve remnants of
powder on the fabric (reduction of powder loss)
Wait time [sec] Interval for debris discharge cycle
Home page
Cleaning
Settings
Alarm
US sieve Hardware
DiagnosisSettings System
WAGO I/O assignment
Parameter: Explanation:
WAGO I/O assignment This parameter is used to parameterize the various
con gurations of the powder center.
Each con guration has a di erent CAN node ID.
1: PXM without bigbag/node ID = 5
2: PXM with bigbag/node ID = 6
3: PXM with 34 injectors/node ID = 7
MP
operation
MP
operation
MP
cleaning
MP
cleaning
