WAGNER EPG-SPRINT XE User Manual

47
EPG-SPRINT XE
EPG
SPRINT X
0
%
100
%
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
EPG
SPRINT X
0
%
100
%
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
P_01752
36
37
19
24
33
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

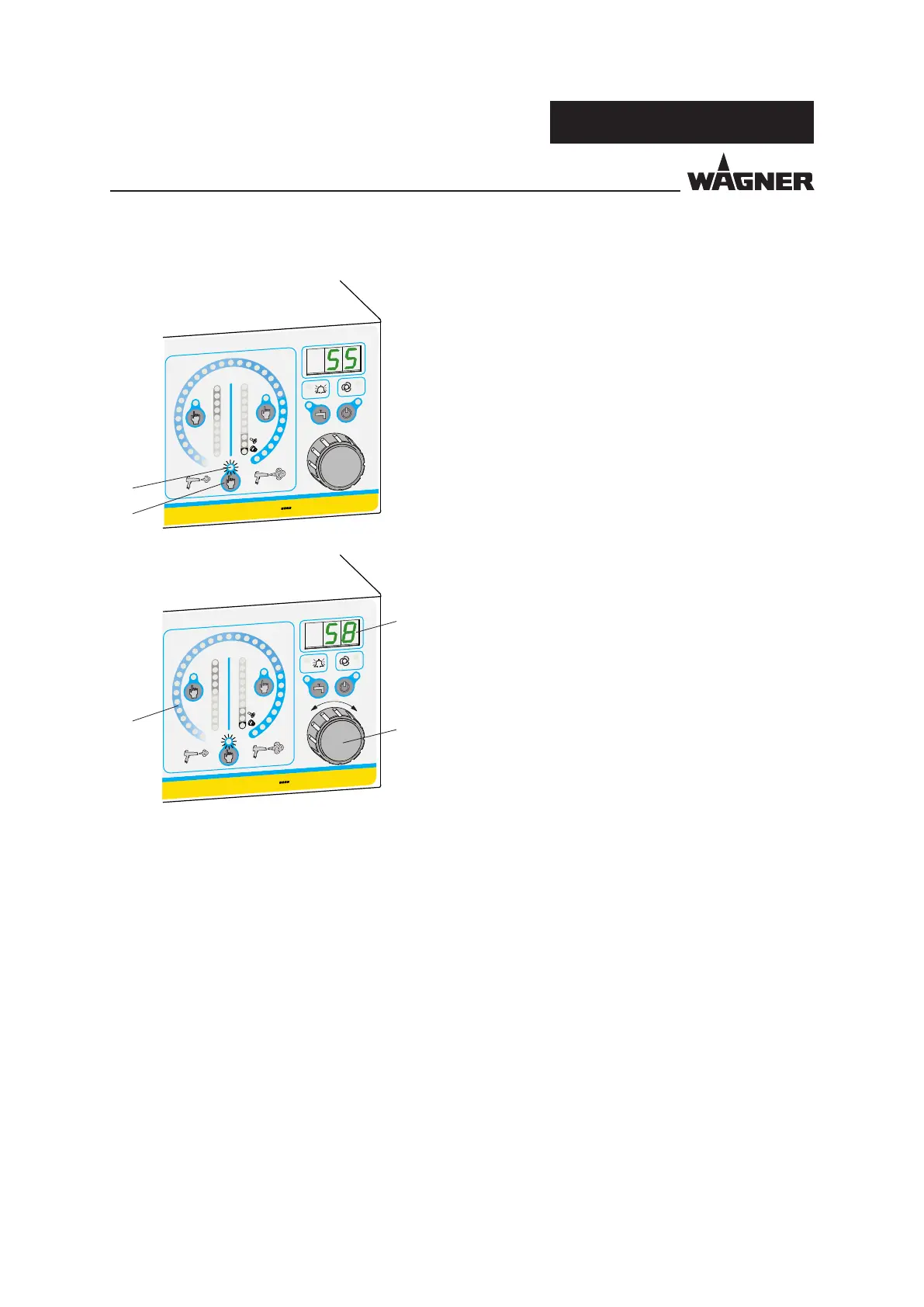

7.7.2 SETTING THE POWDER FEED QUANTITY
When the control unit is in the ready position, the circular light strip 33 shows the set point
as a dot and when powder feeding is switched on it shows the actual value as a bar. The
powder quantity setting as % refers to the percentage distribution between the dierent
air types.
Example:
75% powder quantity means that 75% of the total air volume is supplied to the feed air
and 25% to the dosing air. The greater the proportion of feed air, the greater the powder
quantity for the specied total air volume.
Procedure:
1. Press "Powder Quantity" button 36 to adjust the
powder quantity. Yellow LED 37 indicates that the
powder quantity is selected.
2. The powder quantity can now be adjusted using
the universal rotary controller 24 between 0% -
100% with a resolution of 1%. The value is shown
in the LED display 19.
