OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2354913

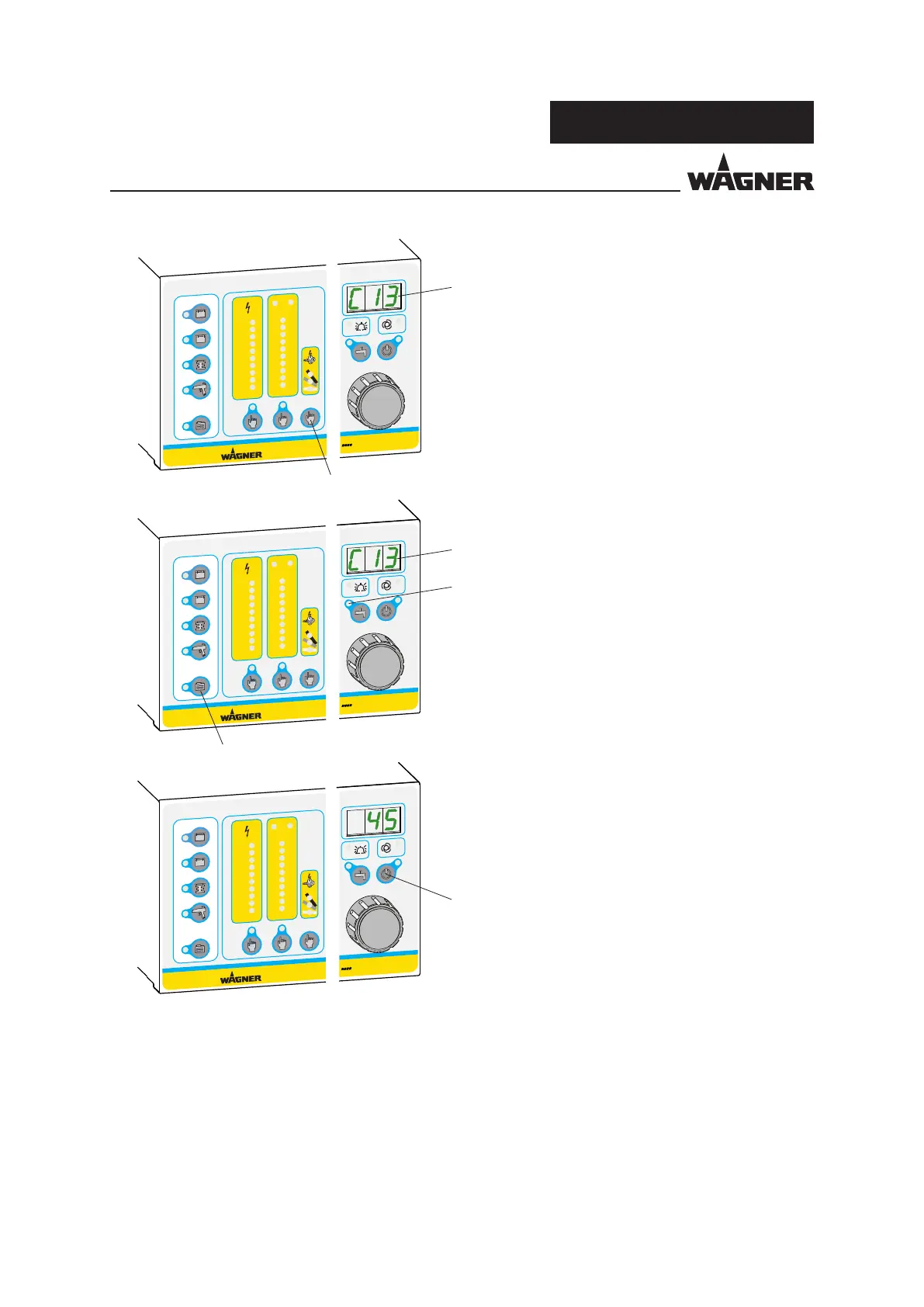

5. There are now two options:
a) If you want to keep the old setting,
regardless of what is currently
displayed, press the "Characteristic
Slope" button 31 again. The LED display
19 shows C13 again.
b) If you want to save the changed
setting, press the "Additional Recipes"
button 25 to save the setting until the
blue "Flush" LED 18 no longer ashes.
The LED display 19 then shows the
parameter number again (in this
example, C13).
Proceed in the same way for all other
parameters. The list below provides an
overview of all the other parameters.
6. To exit the conguration, switch control unit
to standby mode by pressing the "Standby"
button 15. Pressing this button again returns
the control unit to normal operating mode.
