WAGNER Leopard 35-70 - Page 106

Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
14 Spare Parts
106 Order number 2333538 | Edition 03/2021

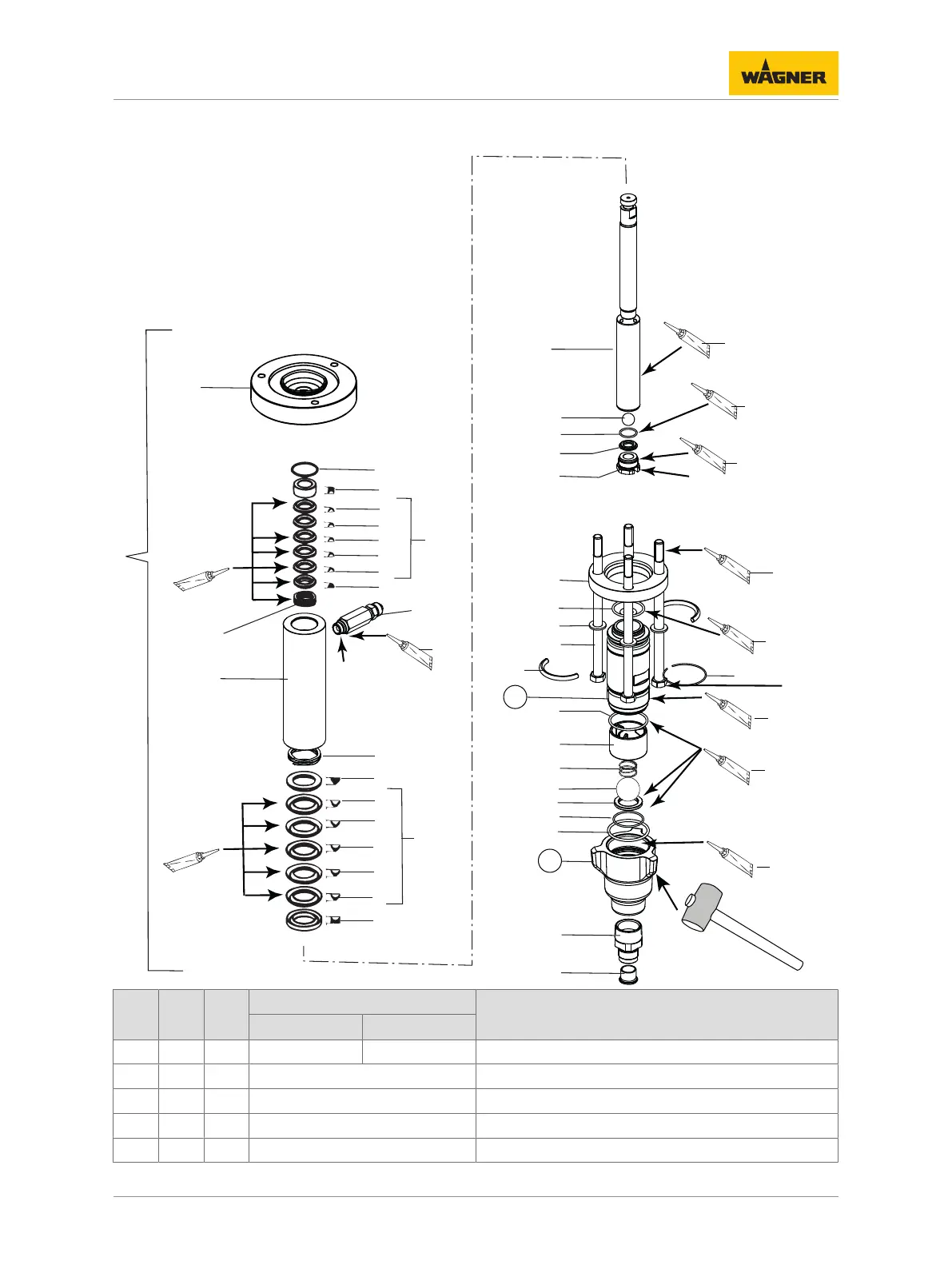

14.6.5 Fluid section, 200 ccm
100 Nm
+10 Nm
74 lbft
+ 7 lbft
60
60
60
106
60
60
61
61
62
61
60
44
16
21
20
21
20
21
40
17
2
41
19
23
22
23
103
104
100
101
22
23
18
5
43
28
10
6
26
12
11
3
13
46
25
7
42
27
9
4
50
51
8
B_07926
200 Nm
148 lbft
1
120 Nm
89 lbft
61
14
52
53
Pos K Stk Order no. Designation
PE / TG PE/T
1 1 2417041 2417042 Fluid section, 200 ccm
2 1 2336658 Pipe
3 1 2336669 Cylinder
4 1 2338107 Inlet housing
5 ♦ 1 2336666 Piston
