Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
14 Spare Parts
114 Order number 2333538 | Edition 03/2021
Pos K Stk Order no. Designation
Stainless steel Carbon steel
1 1 2329025 2335334 HP filter DN12-PN530, complete
2 1 2324542 Filter housing
3 1 2324543 Union nut
4 1 2330780 Fitting, DF-MM-G1/2-G3/8-PN530-SSt
5 ♦ 1 9955863 O-ring
7 1 2324670 Distribution housing for ball valve
10 1 9894245 Filter support
11 1 -- Filter cartridge *
♦ ● 295721 * Filter sieve, 200 mesh per inch (fine)
♦ 14068 * Filter sieve, 100 mesh per inch (medium), mesh
width 0.16 mm
♦ ● 3514069 * Filter sieve, 50 mesh per inch (rough)
♦ ● 291564 * Filter sieve, 20 mesh per inch (rough)
12 ♦ 1 3514058 Cone spring
13 1 2328291 / Fitting-DF-MM-R3/8-R1/4-PN530-SSt
20 ♦ 1 2330156 9998679 Ball valve
21 1 2325562 Pressure ring d45
23 1 2323718 Hexagon plug
33 1 3204611 2325826 Double connector
34 1 9992831 Loctite® 542, 50ml; 50cc
35 1 9998808 Mobilux® EP 2 grease
36 1 9992609 Anti-seize paste tube
♦ = wearing parts
● = not part of the standard equipment but available as a special accessory

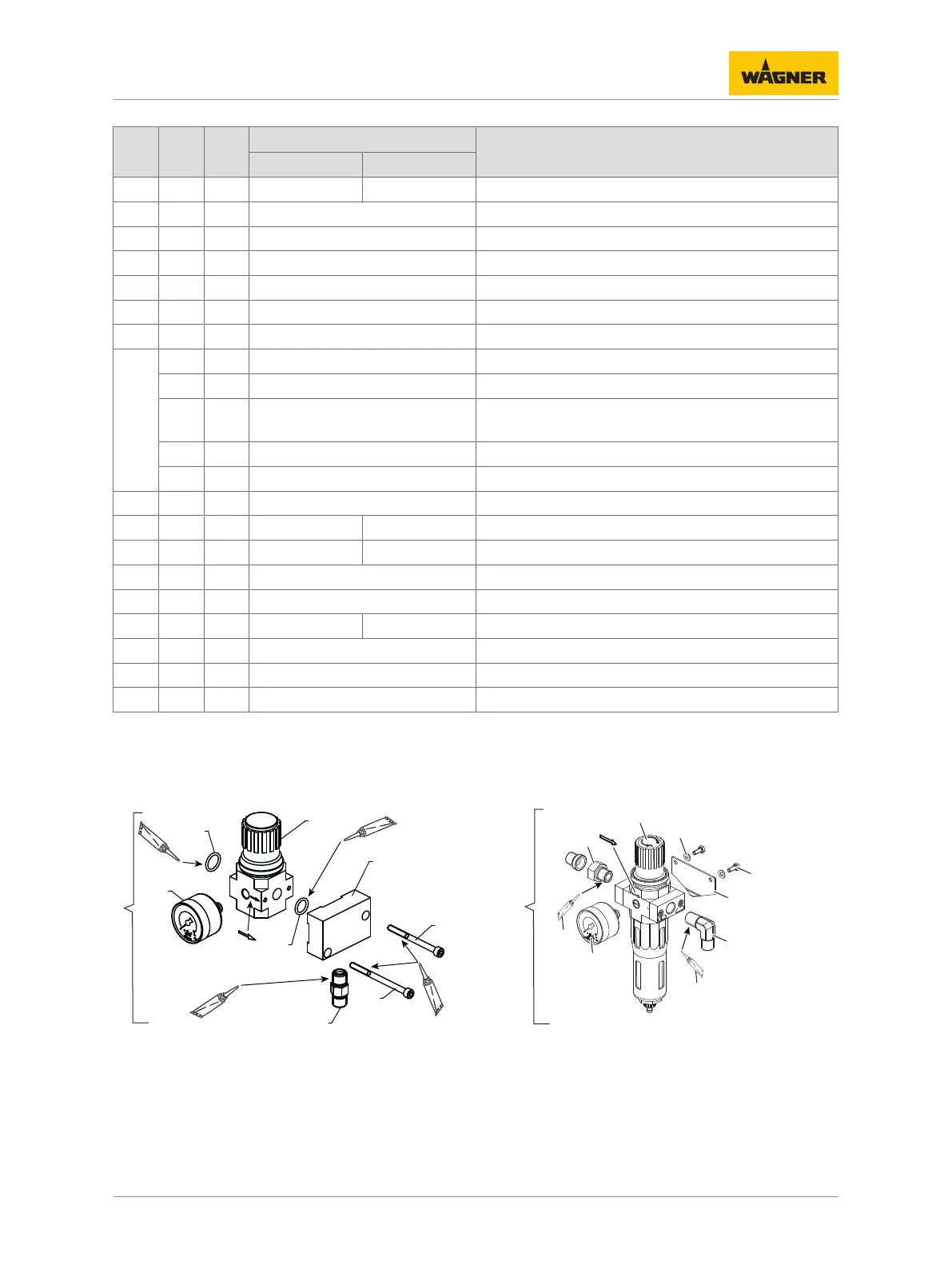

14.13 AIRCOAT REGULATOR AND AIRCOAT FILTER REGULATOR
B_05400
1
8
3
5
6
7
9
10
11
*
2
5
*
20
4
19
18
16
17
15
15
13
14
12
14
Aircoat Regulator and Aircoat Filter Regulator
Pos. 3 and/or 4: *Observe the flow direction (direction of arrow on the housing)
Pos 5: Screw in the pressure gauge until the white sealing ring is completely in the filter
control valve. Thereafter continue turning the pressure gauge only to align the display scale.
Pos. 4: Remove protective container. Mount contact plate (pos. 16). Unscrew/screw on
protective container three times (provides contact point via container coating)
