WAGNER PEM-C2 - Corona-Star

PEM-C2
2.4 Corona-Star
The Corona-Star is a retrofit kit for the manual powder spraygun which helps to achieve a
better surface quality. The formation of the orange peel effect can be reduced or eliminated for
most powder types.
Caution
The assembling of the Corona-Star may only be carried out by trained
personnel!

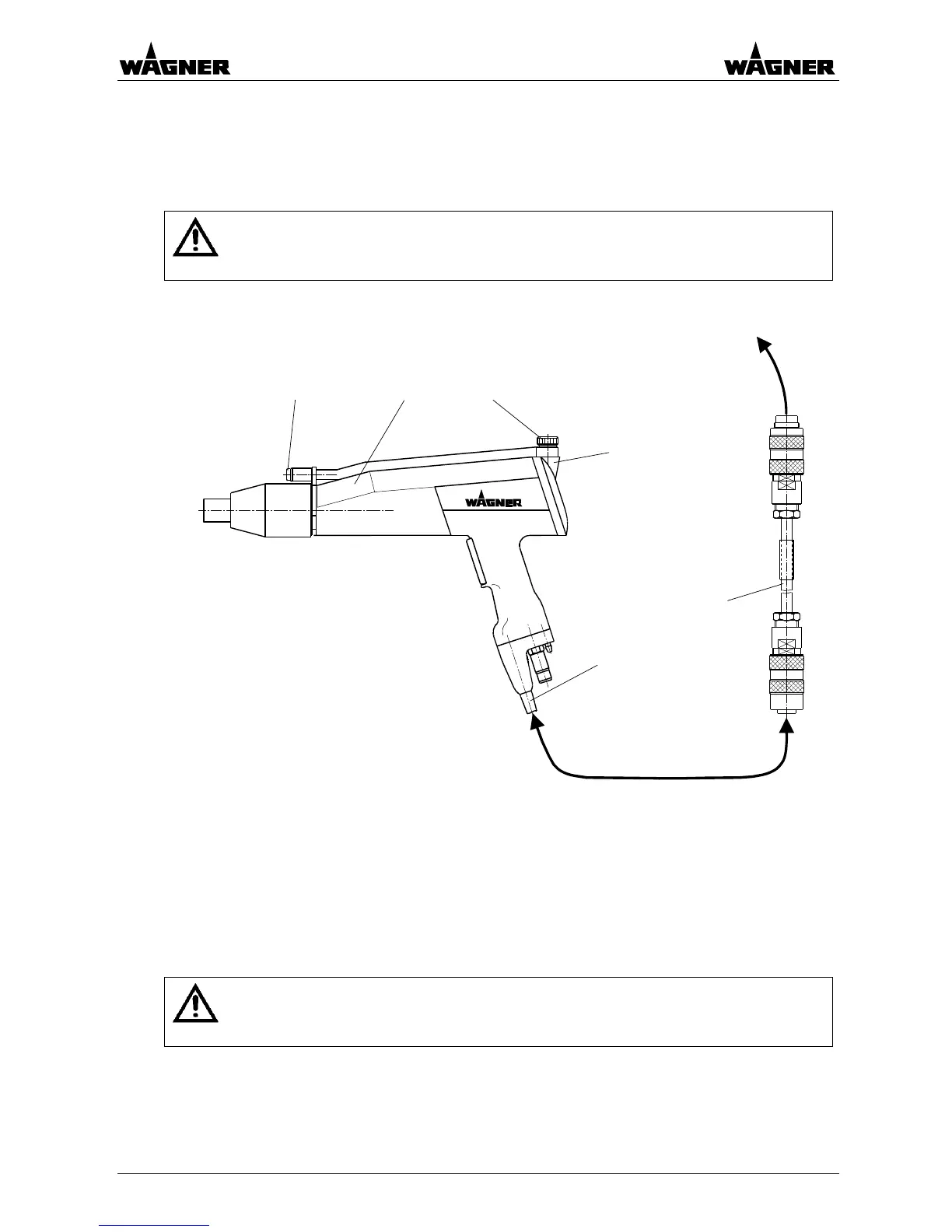

Proceed as follows:
B
C
DE
A
F
Connect gun cable
A
and
adapter cable
F
Connect adapter
cable
F
at the
control unit
• Switch off the powder coating system and secure it against being switched on again
unintentionally.
• Connect the cable with the knurled screw B at the cover piece C.
• Attach the Corona-Star D to the gun housing E.
• Connect the gun cable A and the adapter cable F.
• Connect the adapter cable F at the control unit.
Caution
Ensure proper grounding of the gun fixture!
The system is now ready for operation again.
02/01 11 0351801
